345 - Husqvarna Chainsaw (SN: 19983100001 - 19993600000) CRANKCASE Parts Diagram

Chainsaw

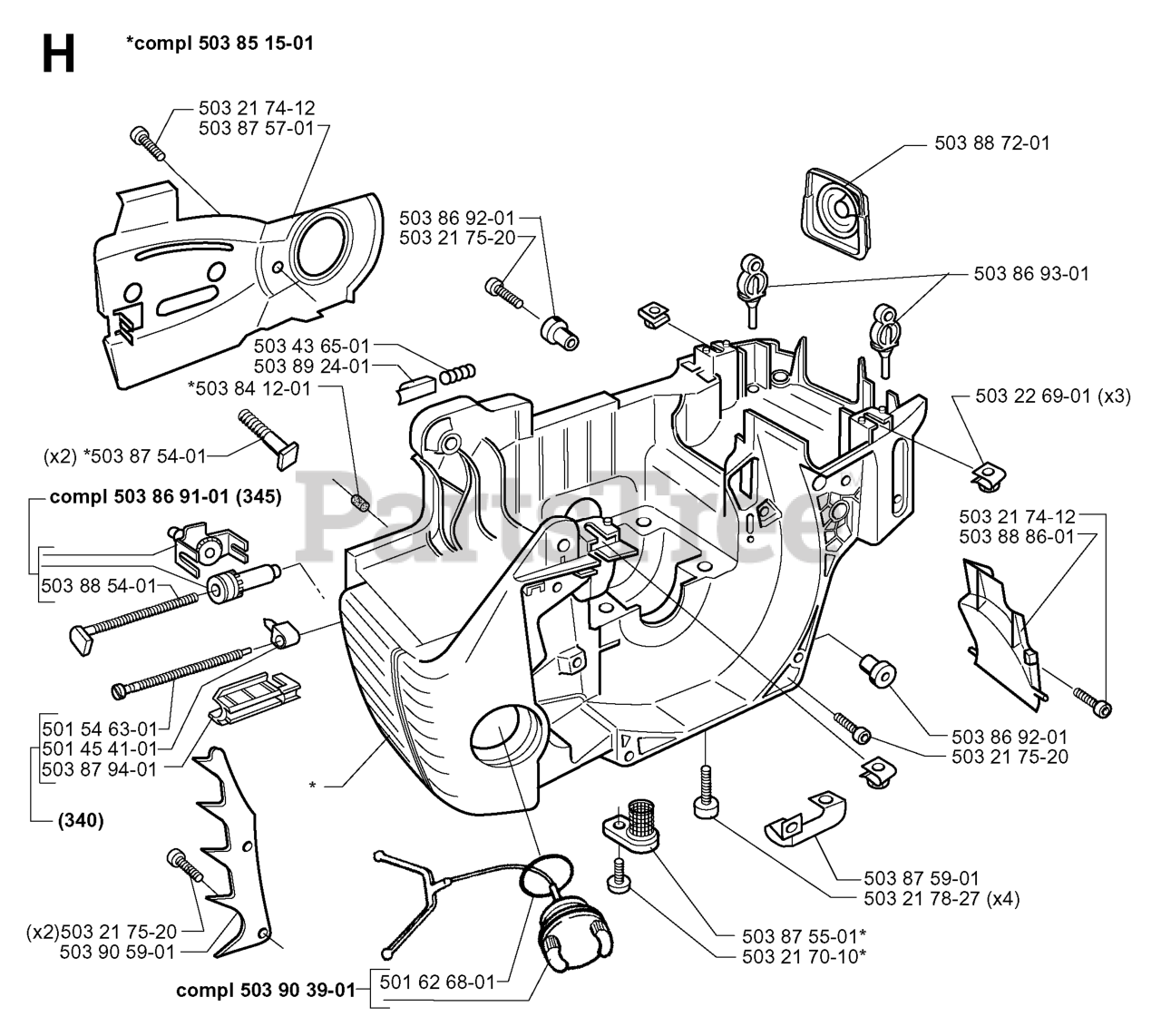

CRANKCASE Parts Diagram

  • Title

503 86 92-01

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

503 22 69-01

Husqvarna 503226901

CLIP
(Superseded to 503226902)

$6.99

$

In Stock, Qty 13

0

503 90 59-01

Husqvarna 503905901

SPIKE

$14.99

$

In Stock, only 1 left!

0

503 21 74-12

Husqvarna 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

503 87 55-01

Husqvarna 503875501

SCREEN

$

$

Not available

503 85 15-01

Husqvarna 503851501

CRANKCASE COMPLETE
(Superseded to 537172003)

$

$

Not available

503 21 75-20

Husqvarna 503217520

SCREW

$6.49

$

In Stock, Qty 12

0

503 43 65-01

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

501 45 41-01

Husqvarna 501454101

PAWL

Note: 340

$6.49

$

In Stock, Qty 20+

0

503 88 86-01

Husqvarna 503888601

DEFLECTOR

$10.99

$

In Stock, only 1 left!

0

503 88 54-01

Husqvarna 503885401

SCREW

$

$

Not available

503 86 91-01

Husqvarna 503869101

CHAIN TENSIONER
(Superseded to 537071201)

Note: 345

$47.99

$

In Stock, only 4 left!

0

503 87 94-01

Husqvarna 503879401

HOLDER

Note: 340

$8.49

$

In Stock, only 2 left!

0

503 21 78-27

Husqvarna 503217827

SCREW

$6.99

$

In Stock, Qty 8

0

501 62 68-01

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, Qty 9

0

503 90 39-01

Husqvarna 503903901

OIL CAP
(Superseded to 537281502)

$13.99

$

In Stock, only 2 left!

0

503 86 93-01

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

503 21 70-10

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

501 54 63-01

Husqvarna 501546301

SCREW

Note: 340

$4.99

$

In Stock, Qty 20+

0

503 87 54-01

Husqvarna 503875401

BOLT

$9.99

$

In Stock, Qty 14

0

503 87 59-01

Husqvarna 503875901

PLATE
(Superseded to 544196401)

$

$

Not available

503 84 12-01

Husqvarna 503841201

VALVE
(Superseded to 537040301)

$6.99

$

In Stock, Qty 11

0

503 21 75-20

Husqvarna 503217520

SCREW

$6.49

$

In Stock, Qty 12

0

503 88 72-01

Husqvarna 503887201

BELLOWS
(Superseded to 537146501)

$24.99

$

In Stock, Qty 7

0

503 87 57-01

Husqvarna 503875701

PLATE

$15.99

$

In Stock, Qty 5

0

503 89 24-01

Husqvarna 503892401

CATCH

$9.99

$

In Stock, Qty 5

0
