345 - Husqvarna Chainsaw (SN: 20041000001 - 20051800000) CARBURETOR DETAILS Parts Diagram

Chainsaw

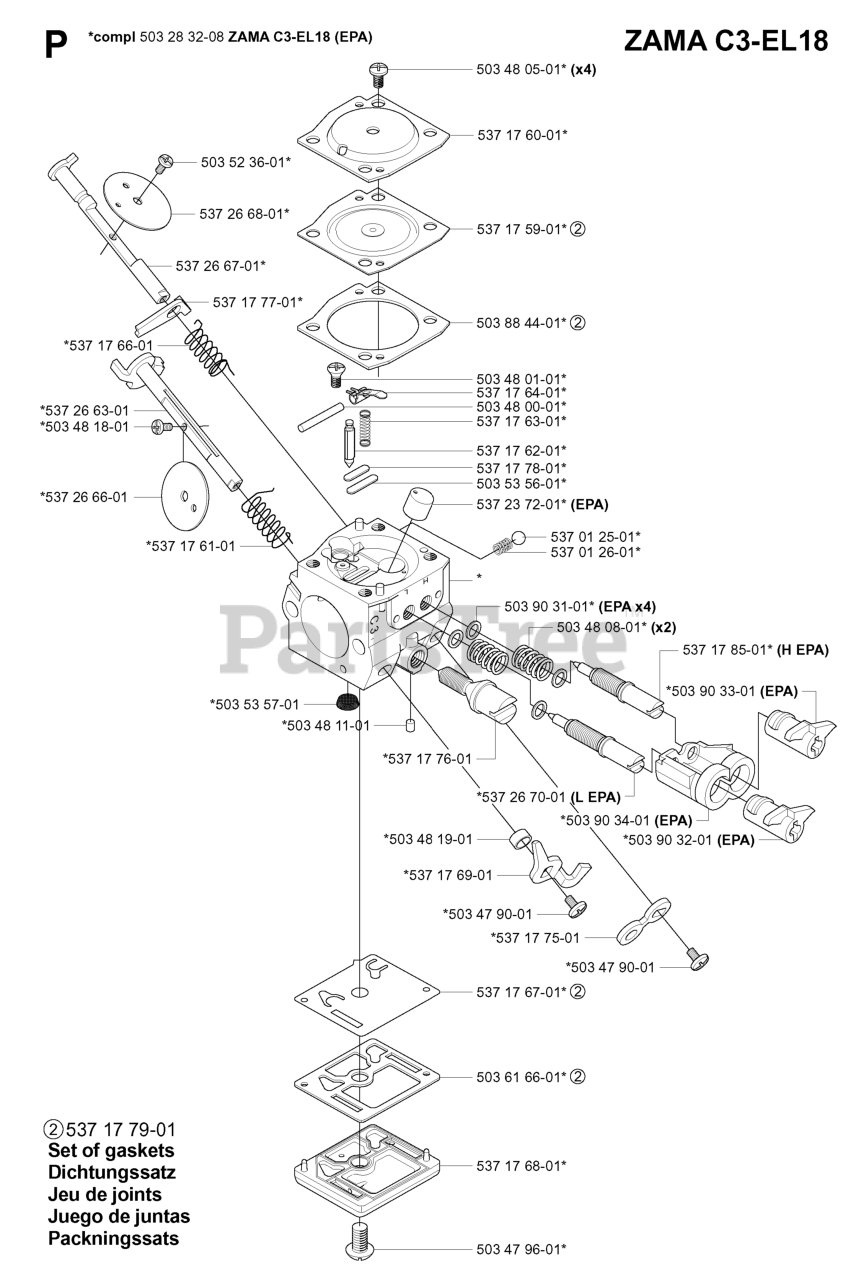

CARBURETOR DETAILS Parts Diagram

  • Title

537 17 76-01

Husqvarna 537177601

IDLE SCREW

$21.99

$

In Stock, only 4 left!

0

503 48 11-01

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

503 61 66-01

Husqvarna 503616601

GASKET

Note: 537 17 79-01 SET OF GASKETS

$5.49

$

In Stock, Qty 6

0

537 23 72-01

Husqvarna 537237201

JET
(Superseded to 537416101)

Note: EPA

$24.99

$

Usually ships in 3-10 days

0

537 17 79-01

Husqvarna 537177901

GASKET SET
(Superseded to 537380301)

$34.99

$

Usually ships in 3-10 days

0

503 48 05-01

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 90 33-01

Husqvarna 503903301

LIMITER CAP

Note: EPA

$6.49

$

Usually ships in 3-10 days

0

537 17 59-01

Husqvarna 537175901

DIAPHRAGM

Note: 537 17 79-01 SET OF GASKETS

$24.99

$

In Stock, Qty 5

0

503 90 32-01

Husqvarna 503903201

LIMITER CAP

Note: EPA

$4.99

$

Usually ships in 3-10 days

0

503 90 31-01

Husqvarna 503903101

WASHER

Note: EPA

$

$

Not available

537 17 60-01

Husqvarna 537176001

COVER

$8.99

$

Usually ships in 3-10 days

0

537 17 62-01

Husqvarna 537176201

VALVE

$24.99

$

In Stock, only 1 left!

0

503 47 96-01

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

537 17 66-01

Husqvarna 537176601

SPRING

$6.49

$

Usually ships in 3-10 days

0

503 48 18-01

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

537 17 77-01

Husqvarna 537177701

LEVER
(Superseded to 544056701)

$8.07

$

Usually ships in 3-10 days

0

503 47 90-01

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 11

0

537 17 64-01

Husqvarna 537176401

LEVER

$7.49

$

In Stock, only 3 left!

0

537 01 25-01

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

537 26 68-01

Husqvarna 537266801

CHOKE FLAP

$8.99

$

Usually ships in 3-10 days

0

537 26 70-01

Husqvarna 537267001

LOW SPEED NEEDLE

Note: L EPA

$30.99

$

Usually ships in 3-10 days

0

503 52 36-01

Husqvarna 503523601

SCREW

$3.99

$

Usually ships in 3-10 days

0

537 17 61-01

Husqvarna 537176101

SPRING

$

$

Not available

503 90 34-01

Husqvarna 503903401

SLEEVE

Note: EPA

$8.49

$

Usually ships in 3-10 days

0

537 17 67-01

Husqvarna 537176701

DIAPHRAGM
(Superseded to 537380201)

Note: 537 17 79-01 SET OF GASKETS

$24.99

$

In Stock, only 2 left!

0

537 17 75-01

Husqvarna 537177501

LEVER

$10.99

$

Usually ships in 3-10 days

0

537 26 63-01

Husqvarna 537266301

THROTTLE SHAFT

$42.99

$

Usually ships in 3-10 days

0

503 48 19-01

Husqvarna 503481901

BUSHING

$9.99

$

In Stock, only 4 left!

0

503 48 08-01

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

537 26 66-01

Husqvarna 537266601

THROTTLE FLAP

$8.93

$

Usually ships in 3-10 days

0

537 26 67-01

Husqvarna 537266701

CHOKE SHAFT

$27.99

$

Usually ships in 3-10 days

0

537 17 78-01

Husqvarna 537177801

PLUG

$4.99

$

In Stock, only 2 left!

0

537 01 26-01

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

503 48 00-01

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

503 53 56-01

Husqvarna 503535601

PLUG

$7.49

$

In Stock, Qty 6

0

537 17 69-01

Husqvarna 537176901

LEVER

$

$

Not available

537 17 63-01

Husqvarna 537176301

SPRING

$6.49

$

In Stock, only 1 left!

0

503 28 32-08

Husqvarna 503283208

CARBURETOR C3-EL18

Note: ZAMA C3-EL18 (EPA)

$107.99

$

In Stock, Qty 7

0

537 17 85-01

Husqvarna 537178501

JET

Note: H EPA

$14.99

$

Usually ships in 3-10 days

0

537 17 68-01

Husqvarna 537176801

COVER

$

$

Not available

503 53 57-01

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 4 left!

0

503 48 01-01

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

503 88 44-01

Husqvarna 503884401

Gasket

Note: 537 17 79-01 SET OF GASKETS

$

$

Not available
