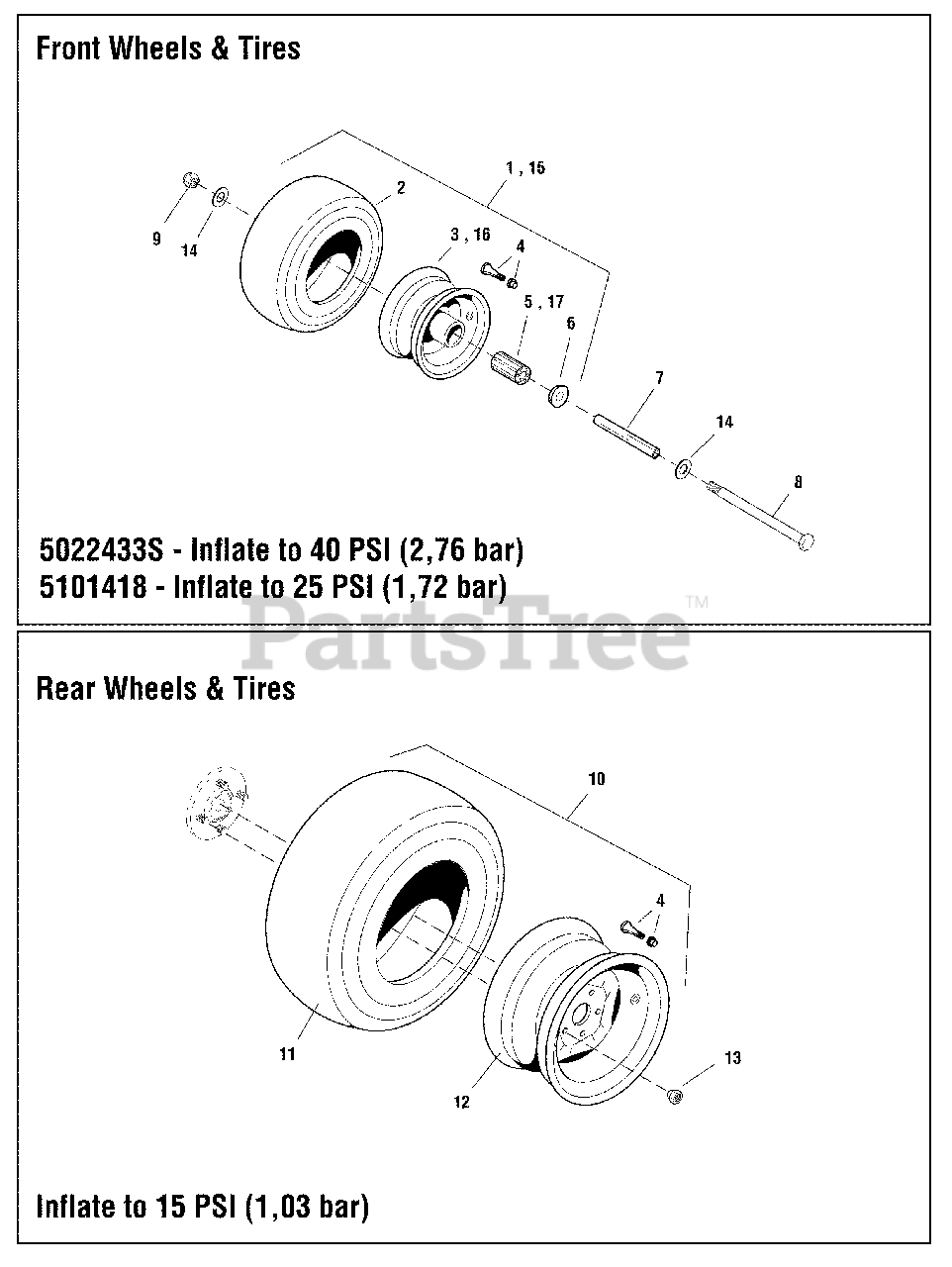

355Z (B 2450) (5900682) - Snapper 50" Zero-Turn Mower, 24hp Wheel & Tire Group Parts Diagram

50" Zero-Turn Mower, 24hp

Wheel & Tire Group Parts Diagram

  • Title

1

USE 5101418YP - WHEEL, CASTER, 11 X 4 - 5 SILVER, BEAD LOCK (Max PSI: 25)

Note: (INCLUDES REF NO. 2 - 6) (Replacement for 5101418YP is 5101418X2YP)

$

$

Not available

2

Snapper 5022433X1SM

TIRE, Caster, 11 X 4.0 - 5 (SV)

$75.99

$

Usually ships in 2-12 days

0

3

Snapper 5022433SX2SM

RIM, Caster, 11 X 4.0 - 5
(Superseded to 5101418X2YP)

Note: (INCLUDES REF NO. 4 & 5)

$84.99

$

In Stock, only 1 left!

0

4

Snapper 2172353SM

VALVE STEM & CAP ASSEMBLY (SV)
(Superseded to 024373MA)

$

$

Not available

5

Snapper 5022579SM

BEARING, Roller

Note: (2 PER TIRE)

$14.99

$

In Stock, Qty 8

0

6

Snapper 5021043SM

RETAINER, Bearing

Note: (2 PER TIRE)

$7.49

$

In Stock, only 3 left!

0

7

Snapper 5045996SM

AXLE, Caster

$15.99

$

In Stock, only 2 left!

0

8

Snapper 5025017X52SM

BOLT, Hex, 1/2-13 X 6-1/2, GD 8

$10.99

$

In Stock, only 2 left!

0

9

Snapper 5025056SM

NUT, Hex Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

10

Snapper 5101293SM

TIRE ASSM, 20X8.00-10NHS, TURF MASTER
(Superseded to 5102329YP)

Note: (INCLUDES REF NO. 4, 11 & 12)

$349.99

$

Usually ships in 2-12 days

0

11

Snapper 5101293X1SM

TIRE, Rear 20 X 8.0 X 10, TURF MASTER (SV)
(Superseded to 5101293X1YP)

$243.99

$

Usually ships in 2-12 days

0

12

Snapper 5102329X2

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS (SV)

$

$

Currently unavailable

13

Snapper 5020601SM

LUG NUT, 1/2-20

$3.49

$

In Stock, Qty 9

0

14

Snapper 5025158SM

WASHER, SAE, 1/2

$3.99

$

In Stock, Qty 13

0

15

Snapper 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

Note: (INCLUDES REF NO. 2, 4-6, 16) (S/N: 2013129511 & Above)

$127.99

$

In Stock, only 1 left!

0

16

Snapper 5101418X2

WHEEL ASSEMBLY, 11 X 4.0 - 5 TIRE CMP (SV)

Note: (INCLUDES REF NO. 4 & 5)

$

$

Currently unavailable

17

Snapper 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)
(Superseded to 5101418X1YP)

$28.99

$

In Stock, only 2 left!

0
