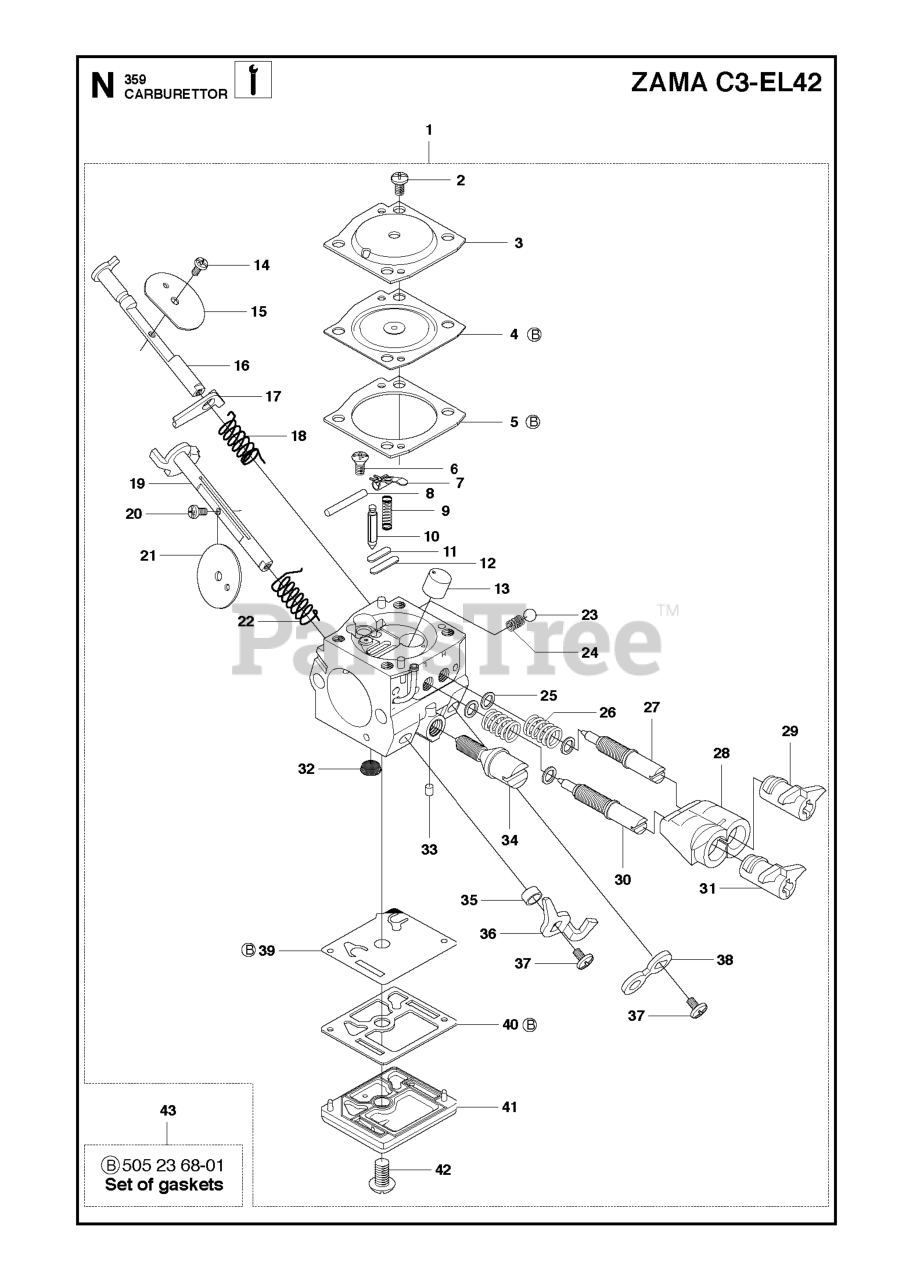

359 - Husqvarna Chainsaw (SN: 20111800001 & Above) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

34

Husqvarna 504027301

SCREW

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 537176201

VALVE

$24.99

$

In Stock, only 1 left!

0

9

Husqvarna 537176301

SPRING

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

31

Husqvarna 503903201

LIMITER CAP

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 537380201

PUMP DIAPHRAGM

$24.99

$

In Stock, only 2 left!

0

28

Husqvarna 503903401

SLEEVE

$8.49

$

Usually ships in 3-10 days

0

29

Husqvarna 503903301

LIMITER CAP

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 503903101

WASHER

$

$

Not available

13

Husqvarna 505236701

NOZZLE ASSY

$12.68

$

Usually ships in 3-10 days

0

5

Husqvarna 505223901

GASKET

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 503616601

GASKET

$5.49

$

In Stock, Qty 6

0

20

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

3

Husqvarna 537176001

COVER

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537175901

DIAPHRAGM

$24.99

$

In Stock, Qty 5

0

1

Husqvarna 505203001

RP CARBURETOR
(Superseded to 505203002)

$125.99

$

In Stock, only 3 left!

0

2

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537175701

THROTTLE SHAFT

$13.41

$

Usually ships in 3-10 days

0

27

Husqvarna 537178501

JET

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

37

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 11

0

24

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

33

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503523601

SCREW

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

30

Husqvarna 537178601

LOW SPEED NEEDLE

$24.59

$

Usually ships in 3-10 days

0

18

Husqvarna 537176601

SPRING

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 537177001

THROTTLE FLAP

$18.99

$

Usually ships in 3-10 days

0

32

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 537176101

SPRING

$

$

Not available

7

Husqvarna 537176401

LEVER

$7.49

$

In Stock, only 3 left!

0

35

Husqvarna 503481901

BUSHING

$9.99

$

In Stock, only 4 left!

0

41

Husqvarna 537176801

COVER

$

$

Not available

36

Husqvarna 537176901

LEVER

$

$

Not available

38

Husqvarna 537177501

LEVER

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537177801

PLUG

$4.99

$

In Stock, only 2 left!

0

43

Husqvarna 505236801

KIT GASKET

Note: B = Set of gaskets

$

$

Not available

6

Husqvarna 544082101

SCREW

$4.49

$

Usually ships in 3-10 days

0

12

Husqvarna 503535601

PLUG

$7.49

$

In Stock, Qty 6

0

15

Husqvarna 537177201

CHOKE FLAP

$

$

Not available

17

Husqvarna 544056701

THROTTLE LOCK

$8.07

$

Usually ships in 3-10 days

0

16

Husqvarna 537177101

CHOKE SHAFT

$21.91

$

Usually ships in 3-10 days

0
