360Z (ZT 1836) (2691521-00) - Snapper 36"/91cm Zero-Turn Mower, FAB Deck, 18hp Engine Group Parts Diagram

36"/91cm Zero-Turn Mower, FAB Deck, 18hp

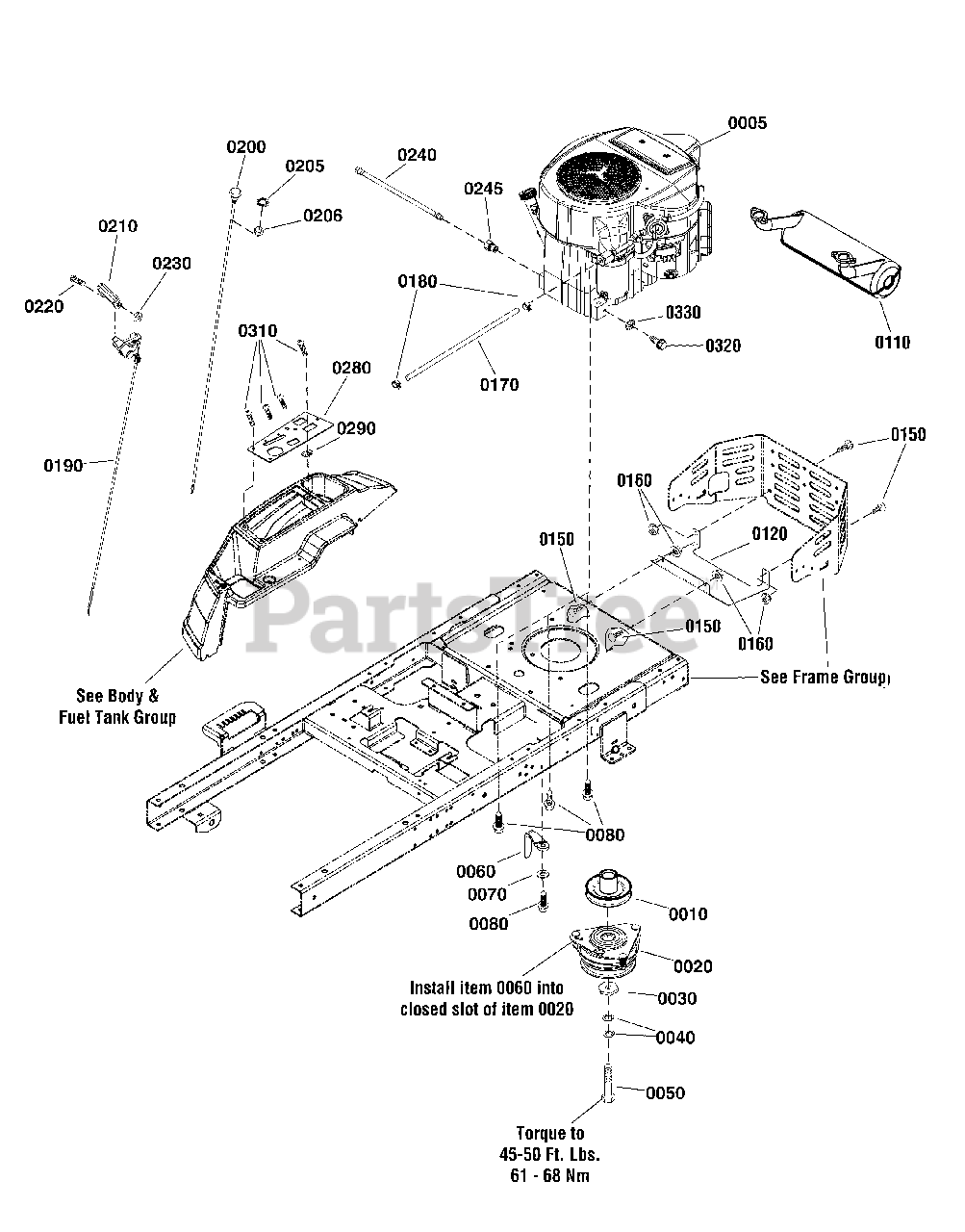

Engine Group Parts Diagram

  • Title

0005

Snapper 1762165

* ENGINE, Kawasaki 18HP, Mod. FR600

$

$

Currently unavailable

0010

Snapper 1757995YP

PULLEY ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0030

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 7

0

0040

Snapper 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0050

Snapper 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

Usually ships in 2-12 days

0

0060

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, only 1 left!

0

0070

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 5025532YP

BOLT,Hex Flange, 3/8-16 X 1-1/4, GR5
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 1758352YP

MUFFLER, ZT (Kawasaki FR651/691/730)

$214.99

$

Usually ships in 2-12 days

0

0120

Snapper 1759502AYP

SHIELD, Heat

$63.99

$

In Stock, only 1 left!

0

0150

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 7

0

0170

Snapper 791745

LINE, Fuel

$10.99

$

In Stock, Qty 6

0

0180

Snapper 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 10

0

0190

Snapper 1759205YP

CONTROL, Throttle

$43.99

$

In Stock, only 1 left!

0

0200

Snapper 5100184SM

CABLE, CHOKE CONTROL, 43.5"

$40.99

$

Usually ships in 2-12 days

0

0205

Snapper 703864

WASHER, External, 3/8

$4.49

$

Usually ships in 2-12 days

0

0206

Snapper 703895

NUT, Hex, 3/8-24

$4.49

$

In Stock, Qty 8

0

0210

Snapper 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Snapper 797483

SCREW

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 703460

NUT

$3.99

$

In Stock, Qty 11

0

0240

Snapper 1726498SM

HOSE, Oil Drain

$26.99

$

Usually ships in 2-12 days

0

0245

Snapper 5022234SM

ADAPTER, Oil Drain

$15.99

$

Usually ships in 2-12 days

0

0280

Snapper 84002285

PANEL, Control, Choke

$28.99

$

Usually ships in 2-12 days

0

0290

Snapper 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, only 4 left!

0

0310

Snapper 703953

SCREW, Torx Pan Head Self-Tapping, 1/4-20 X 5/8,

$4.49

$

In Stock, only 2 left!

0

0320

Snapper 5025249YP

BOLT, M8-1.25 X 2.MM GD 8.8

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 703138

WASHER, External Lock, 5/16

$3.99

$

In Stock, Qty 10
