364 (190-364-100) - International Harvester 45" Snow Thrower for Cub Cadet Tractor Blower Drive Parts Diagram

45" Snow Thrower for Cub Cadet Tractor

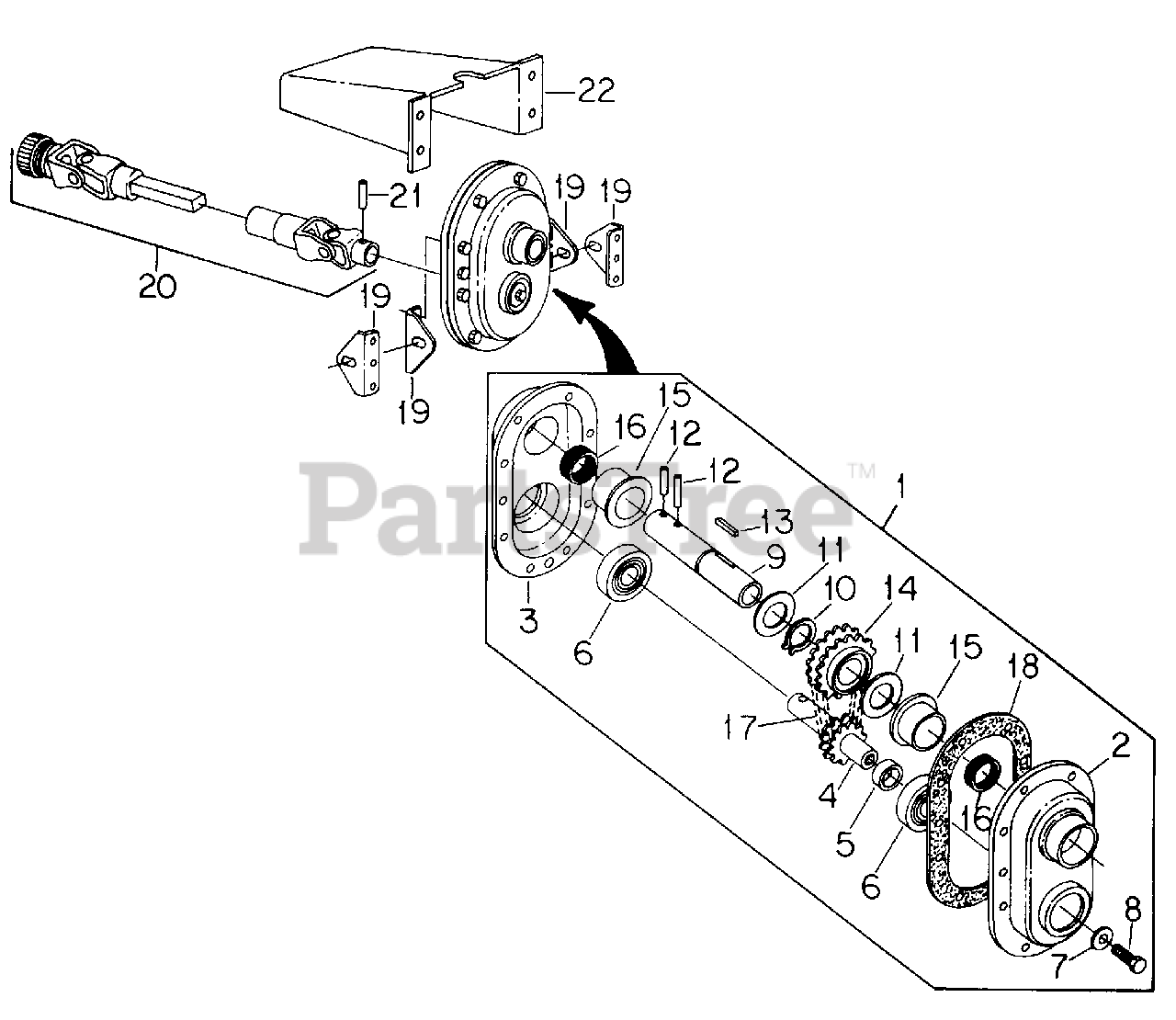

Blower Drive Parts Diagram

  • Title

1

Cub Cadet IH-90479-C91

Drive Assy, Chain

Note: Consists of Ref No. 2 thru 18

$

$

Currently unavailable

2

Cub Cadet IH-90485-C1

Housing, Chain Drive Front

$

$

Not available

Cub Cadet IH-181567

Bolt, 1/4-Nf X 7/8 Znd Type 5
(Superseded to 710-0281)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-90489-C1

Washer, .27 X .57 X .025 Spring
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

Cub Cadet IH-120367

Nut, 1/4-Nf Type 5
(Superseded to 912-0138)

$

$

Not available

3

Cub Cadet IH-90486-C1

Housing, Chain Drive Rear

$

$

Not available

4

Cub Cadet IH-90482-C1

Shaft, Sprocket

$

$

Not available

5

Cub Cadet IH-90495-C1

Spacer, 1.0 X 1.18 X .44

$

$

Not available

6

Cub Cadet IH-90493-C1

Bearing, Ball
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 6

0

7

Cub Cadet IH-90491-C1

Washer, .40 X 1.25 X .157 Belleville
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-27973-R1

Bolt, 3/8 X 1 Phc P/T Type 8
(Superseded to 710-0591)

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet IH-90492-C1

Sleeve, Sprocket

$

$

Not available

10

Cub Cadet IH-152450-R1

Ring, 1.156 Ext Ret
(Superseded to 716-0116)

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet IH-90490-C1

Washer, 1.25 X 2.0 X .060 Flat
(Superseded to 736-0246)

$

$

Not available

12

Cub Cadet IH-617940-R1

Pin, 5/16 X 1-3/4 Hvy Pln Cld Spr
(Superseded to 915-0118)

$

$

Not available

13

Cub Cadet 714-0128

Key, 1/4 X 1 Sq. Parallel

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet IH-90483-C1

Sprocket, Driven

$

$

Not available

15

Cub Cadet IH-90494-C1

Bearing, Flange
(Superseded to 748-0194)

$32.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-90487-C1

Seal, Oil

$

$

Not available

17

Cub Cadet IH-90484-C1

Chain, 40-2 1/2 Pitch X 25 Links

$

$

Not available

Cub Cadet IH-90481-C1

Link, Chain Master

$

$

Not available

18

Cub Cadet IH-90488-C1

Gasket, Housing

$

$

Not available

19

Cub Cadet IH-90480-C1

Bracket, Chain Drive Mounting

$

$

Not available

Cub Cadet IH-180077

Bolt, 5/16 X 3/4 Type 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-106766-C1

Washer, .34 X .88 X .060 Belleville
(Superseded to 736-0242)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet IH-90478-C1

Shaft, U-Joint Drive -PTO to chain drive

$

$

Not available

21

Cub Cadet IH-617943-R1

Pin, 5/16 X 2-1/2 Hvy Pln Cld Spr
(Superseded to 715-0113)

$

$

Not available

22

Cub Cadet IH-90496-C1

Cover, Drive Shaft

$

$

Not available
