37-06BL02 - Toro 37" Rear Bagger, 200 LT (1987) 300-SERIES REAR GRASS BAGGER-37 IN./94 CM MOWER Parts Diagram

37" Rear Bagger, 200 LT

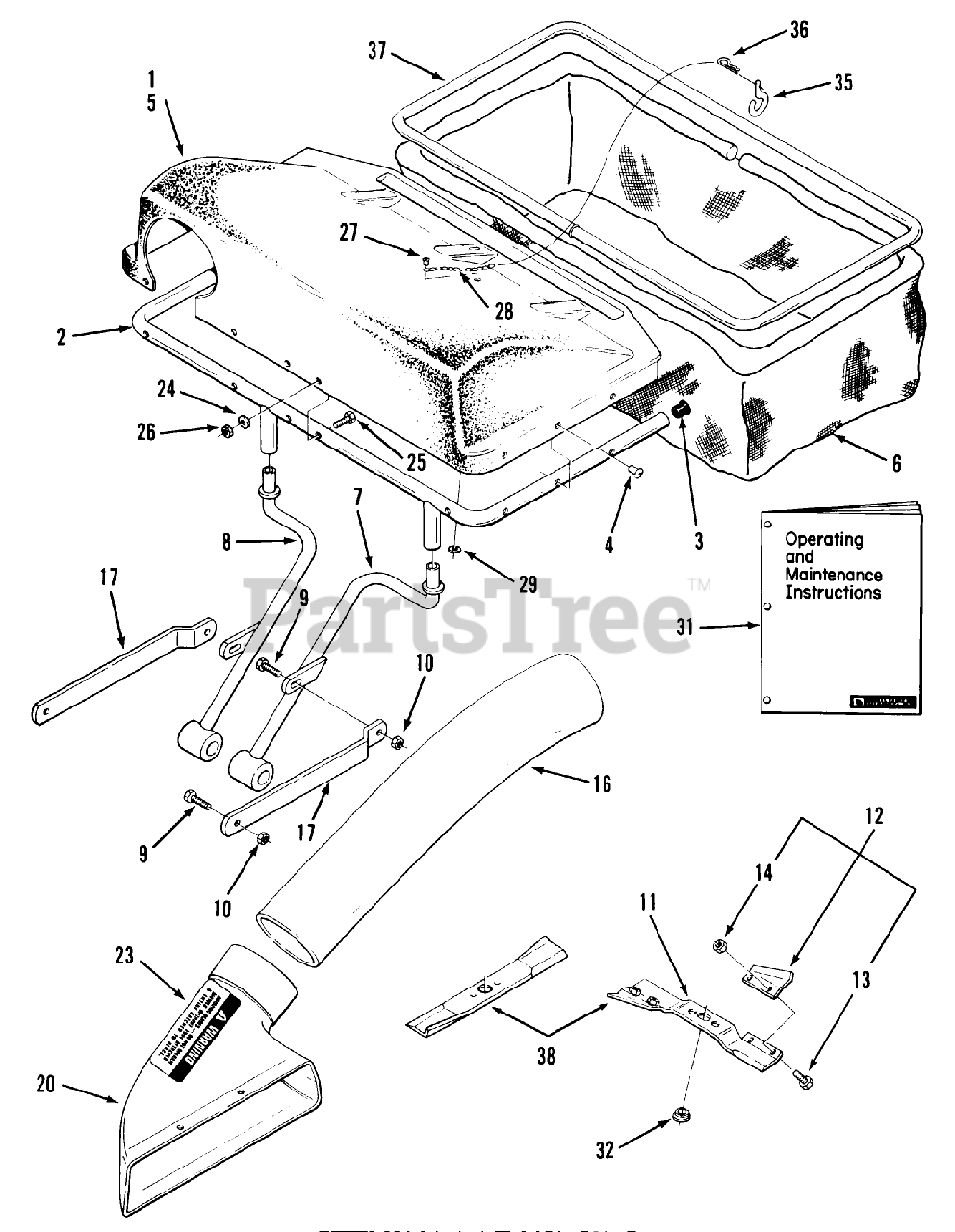

300-SERIES REAR GRASS BAGGER-37 IN./94 CM MOWER Parts Diagram

  • Title

1

Toro 111157

Top Assembly (Includes Items 2-5)

$

$

Not available

2

Toro 109614

Frame

$

$

Not available

3

Toro 109618

Plug

$

$

Not available

4

Toro 932802

Poprivet 3/16 dia. x .575

$

$

Currently unavailable

5

Toro 111158

BAGGER TOP

$

$

Not available

6

Toro 110473

Bag
(Superseded to 112174)

$

$

Not available

6

Toro 112174

BAG

$

$

Not available

7

Toro 111207

ASSY QUICK ATTACH B

$

$

Not available

8

Toro 111206

ASSY QUICK ATTACH B

$

$

Not available

9

Toro 908019

Bolt
(Superseded to 322-5)

Note: Indicates Part of Loose Parts Package 807067.

$0.99

$

In Stock, Qty 20+

0

10

Toro 915662

Nut
(Superseded to 3296-29)

Note: Indicates Part of Loose Parts Package 807067.

$2.49

$

In Stock, Qty 20+

0

11

Toro 108846

ASSY-HI LIFT BLADE

$

$

Not available

12

Toro 105194

Lift Tab Kit (Includes Items 13 & 14)

$107.99

$

Usually ships in 3-6 days

0

13

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

14

Toro 108687

NUT-LOCK 5/16-18

$1.49

$

Usually ships in 3-6 days

0

16

Toro 110050

CHUTE 37" BAGGER

$119.99

$

Usually ships in 3-6 days

0

17

Toro 111212

BRACE B

$

$

Not available

20

Toro 108666

Elbow

$

$

Not available

23

Toro 111681

Decal-Warning
(Superseded to 113-914)

$3.23

$

Usually ships in 3-6 days

0

24

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

Note: Indicates Part of Loose Parts Package 807067.

$0.99

$

In Stock, Qty 20+

0

25

Toro 908008

Screw-Hex. Hd.
(Superseded to 321-10)

Note: Indicates Part of Loose Parts Package 807067.

$1.49

$

In Stock, Qty 20+

0

26

Toro 915111

Nut
(Superseded to 3217-5)

Note: Indicates Part of Loose Parts Package 807067.

$0.99

$

In Stock, Qty 10

0

27

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 16

0

28

Toro 111097

CHAIN MAKE FRM111098

$

$

Not available

29

Toro 920266

Washer

$

$

Not available

31

Toro 810401R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 807067.

$

$

Currently unavailable

32

Toro 109916

SPACER BLADE

Note: Indicates Part of Loose Parts Package 807067.

$56.99

$

Usually ships in 3-6 days

0

35

Toro 111091

LATCH PIN

$

$

Not available

36

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 807067.

$1.99

$

In Stock, Qty 20+

0

37

Toro 109619

FRAME-BAG B

$187.99

$

Usually ships in 3-6 days

0

38

Toro 112398

Blade Kit (Includes LH blade, RH blade with tabs, hardware and spacer)

$

$

Not available
