370-JU-11 - Troy-Bilt Engine 370-JU-11 Crankcase Parts Diagram

Engine

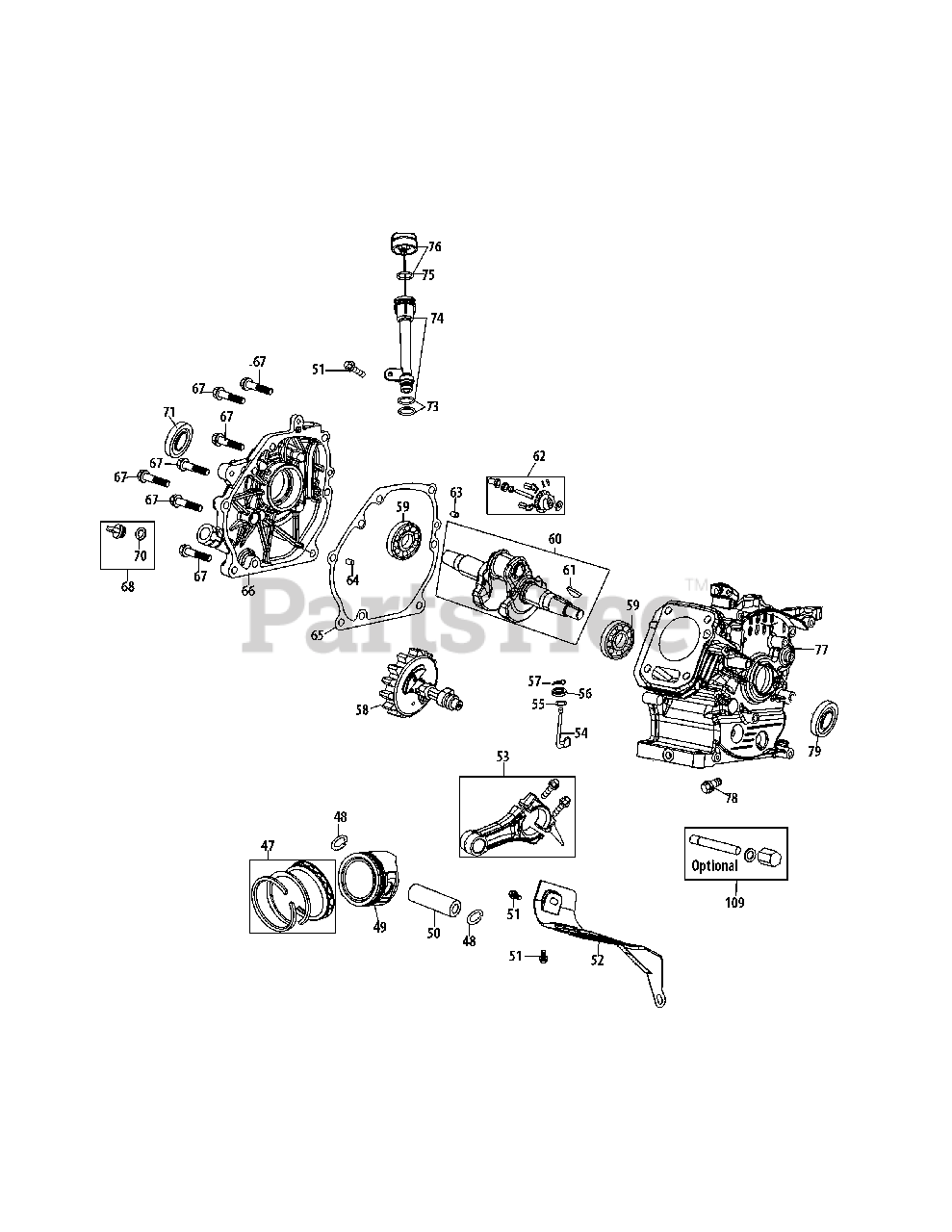

370-JU-11 Crankcase Parts Diagram

  • Title

47

Troy-Bilt 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 6

0

48

Troy-Bilt 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 2 left!

0

49

Troy-Bilt 951-12007

Piston

$35.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

52

Troy-Bilt 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 951-11356

Governor Arm Shaft
(Superseded to 951-14053)

$15.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 736-04461

Washer 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 714-04074

Cotter Pin
(Superseded to 714-04078)

$4.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 951-11575

Camshaft Assy.

$65.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 951-11369

Radial Ball Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 951-12102

Crankshaft Kit

Note: (Incl.59-61,71,79)

$144.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

62

Troy-Bilt 951-11576

Governor Gear/Shaft Assembly
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

64

Troy-Bilt 715-04089

Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 10

0

66

Troy-Bilt 951-12125

Cover Comp, Left Crankcase

$115.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 951-11283

Oil Fill Plug Assembly

$6.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, only 3 left!

0

73

Troy-Bilt 951-11381

Oil Fill Tube O-Ring

$5.49

$

In Stock, only 1 left!

0

74

Troy-Bilt 951-11913

Oil Fill Tube Assembly

$16.99

$

In Stock, only 1 left!

0

75

Troy-Bilt 951-11904

Dipstick O-Ring

$4.49

$

In Stock, only 1 left!

0

76

Troy-Bilt 951-12482

Dipstick Assembly

$15.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 951-12103

Crankcase Kit

Note: (Incl.56,59,71,77,79)

$212.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 951-12514

Oil Drain Plug
(Superseded to 951-12514A)

$6.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 951-11370

Oil Seal 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, only 2 left!

0

109

Troy-Bilt 753-06684

Oil Drain Tube Kit (Optional)
(Superseded to 753-06684P)

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-12026

Gasket Kit - External
(Superseded to 951-12026A)

Note: Not shown (Incl.6,22,27-29,35)

$31.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11246

Crankcase Cover Kit
(Superseded to 951-11248A)

Note: Not shown (Incl.59,65-67,69-71)

$200.99

$

In Stock, only 1 left!

0

Troy-Bilt 951-12121

Gasket Kit - Complete
(Superseded to 951-12121A)

Note: Not shown (Incl.6,22,27-29,35,40,55,56,65,71,79)

$58.99

$

Usually ships in 3-6 days

0

Troy-Bilt 751-12513

Short Block
(Superseded to 951-12513A)

Note: Not shown (Incl.6,22,27,28,41,43,44,47-50,53-60,62-67,69-71,77-79)

$377.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z370-JU-11

COMPLETE ENGINE 208cc
(Superseded to 952Z370-JUA)

Note: Not shown

$849.99

$

Usually ships in 3-6 days

0
