370-JUA - Troy-Bilt Engine 370-JUA Starter & Blower Housing Parts Diagram

Engine

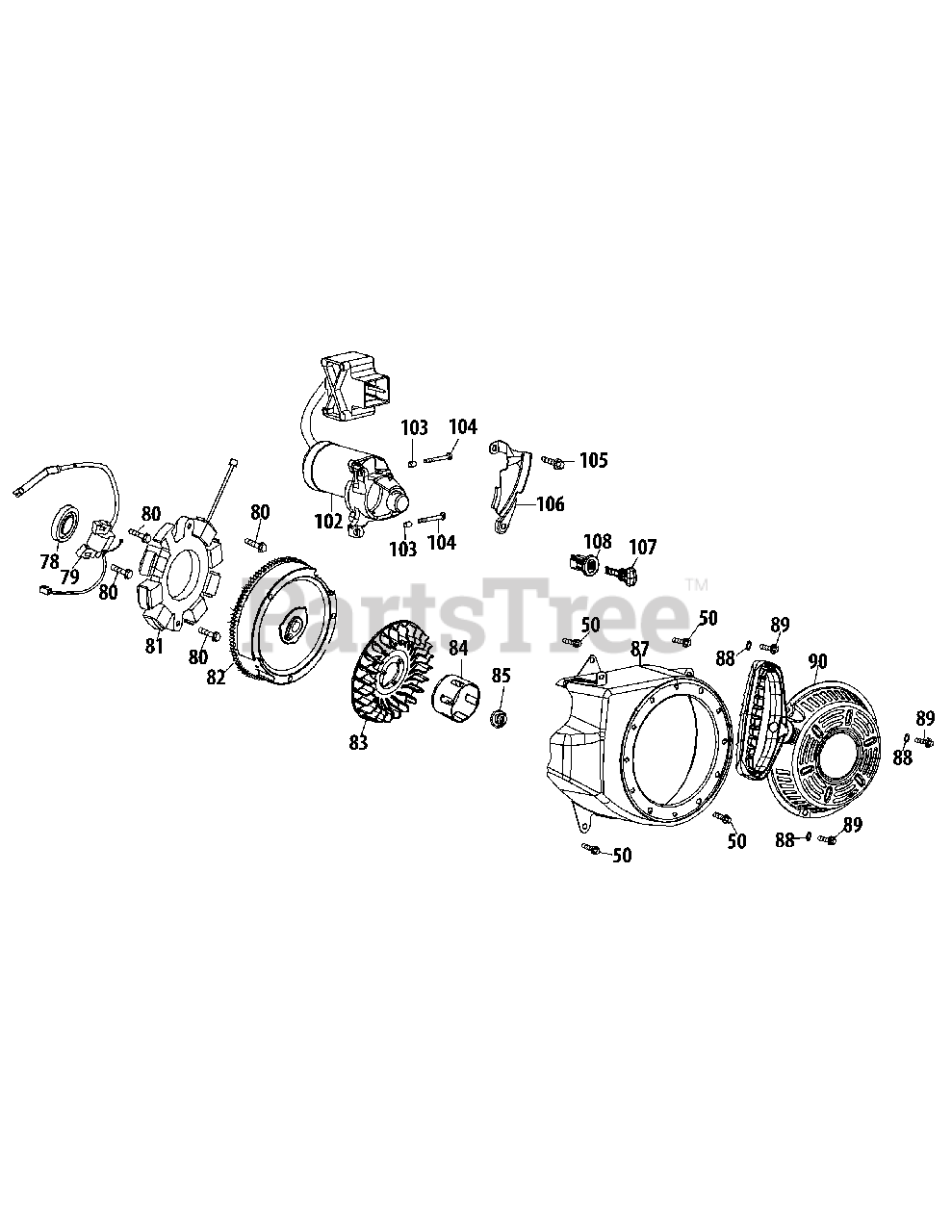

370-JUA Starter & Blower Housing Parts Diagram

  • Title

50

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

78

Troy-Bilt 951-11370

Oil Seal 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, only 2 left!

0

79

Troy-Bilt 951-12013

Ignition Coil Assembly

$110.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

81

Troy-Bilt 751-12050A

Alternator Assembly
(Superseded to 951-12050A)

$97.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 951-12051

Flywheel

$135.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

In Stock, only 1 left!

0

84

Troy-Bilt 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 712-04209

Nut, Special, M14×1.5
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

87

Troy-Bilt 951-12644

Blower Housing

$60.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 951-12644

Gasket ?6

$60.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 710-04974

Bolt M6×10

$6.99

$

In Stock, only 2 left!

0

90

Troy-Bilt 751-14152

Recoil Starter
(Superseded to 951-14152)

$94.99

$

In Stock, Qty 5

0

102

Troy-Bilt 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

103

Troy-Bilt 715-04088

Dowel Pin 8×8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

104

Troy-Bilt 710-05182

Bolt M6×32

$4.49

$

In Stock, only 1 left!

0

105

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

106

Troy-Bilt 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0

107

Troy-Bilt 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 17

0

108

Troy-Bilt 951-10637

Key Switch Base

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 951-05102

120V Plug Kit

Note: (not shown)

$88.99

$

Usually ships in 3-6 days

0
