370-QU - MTD Engine 370-QU Crankcase Parts Diagram

Engine

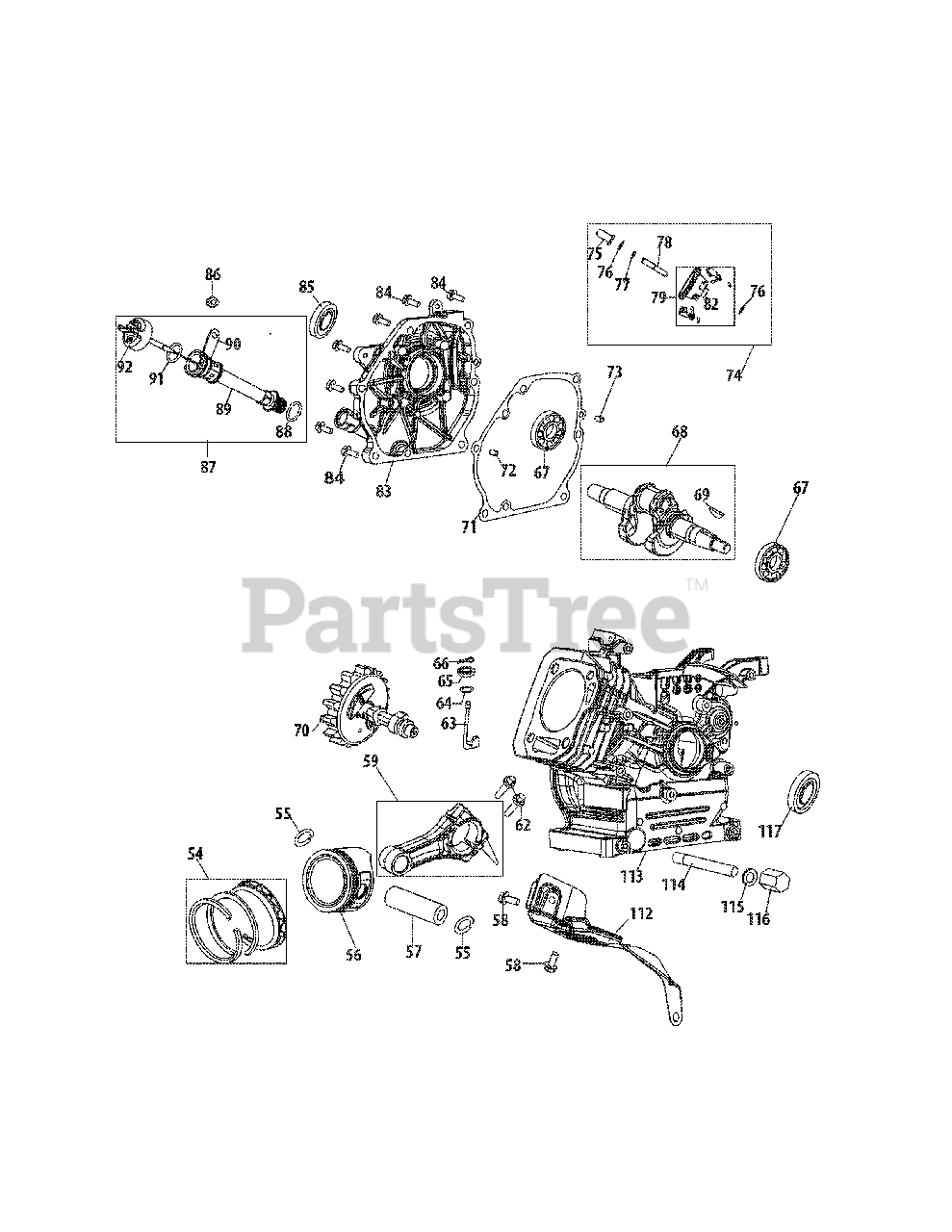

370-QU Crankcase Parts Diagram

  • Title

54

MTD 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.49

$

In Stock, Qty 5

0

55

MTD 951-11632

Circlip

$3.99

$

In Stock, only 2 left!

0

56

MTD 951-12007

Piston

$33.99

$

Usually ships in 3-6 days

0

57

MTD 951-11633

Piston Pin

$7.49

$

Usually ships in 3-6 days

0

58

MTD 710-04915

Bolt, M6×12

$4.49

$

In Stock, Qty 8

0

59

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$9.49

$

Usually ships in 3-6 days

0

62

MTD 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

63

MTD 951-14053

Governor Gear Shaft

$14.99

$

Usually ships in 3-6 days

0

64

MTD 736-04461

O-Ring, 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

65

MTD 951-11902

Oil Seal, 6×11×4

$4.49

$

In Stock, only 1 left!

0

66

MTD 714-04078

Cotter Pin

$3.99

$

Usually ships in 3-6 days

0

67

MTD 951-11369

Bearing, 6205

$32.99

$

Usually ships in 3-6 days

0

68

MTD 951-14147

Crankshaft

$100.99

$

Usually ships in 3-6 days

0

69

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

70

MTD 951-11575A

Camshaft

$61.99

$

Usually ships in 3-6 days

0

71

MTD 951-11371

Gasket, Crankcase
(Superseded to 951-11371A)

$3.49

$

In Stock, Qty 10

0

72

MTD 715-04096

Pin, 9×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

73

MTD 715-04092

Pin, 7×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

74

MTD 951-11576

Governor Gear
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

75

MTD 931-09595

Governor Cup

$5.49

$

Usually ships in 3-6 days

0

76

MTD 936-05038

Washer, 6.2×0.6×15

$4.49

$

In Stock, only 2 left!

0

77

MTD 916-05003

Retaining Ring

$5.49

$

In Stock, only 1 left!

0

78

MTD 911-06137

Governor Shaft

$6.49

$

Usually ships in 3-6 days

0

79

MTD 917-05007

Governor Gear

$12.99

$

Usually ships in 3-6 days

0

82

MTD 917-05152

Governor Gear

$10.99

$

Usually ships in 3-6 days

0

83

MTD 951-14875

Crankcase Cover

$78.99

$

Usually ships in 3-6 days

0

84

MTD 710-04932

Bolt, M8×32

$3.99

$

Usually ships in 3-6 days

0

85

MTD 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$2.99

$

In Stock, only 3 left!

0

86

MTD 910-06278

Bolt, M6×16

$3.99

$

Usually ships in 3-6 days

0

87

MTD 931-05255

Dipstick

$21.99

$

Usually ships in 3-6 days

0

88

MTD 951-11381

O-Ring, 15.5×1.5

$4.99

$

Usually ships in 3-6 days

0

89

MTD 951-14876

Dipstick Seat

$9.49

$

Usually ships in 3-6 days

0

90

MTD 951-14878

Clamp

$5.99

$

Usually ships in 3-6 days

0

91

MTD 921-04663

O-Ring, 21×2.77
(Superseded to 921-04663A)

$5.49

$

Usually ships in 3-6 days

0

92

MTD 951-14879

Dipstick

$8.99

$

Usually ships in 3-6 days

0

112

MTD 951-11113

Shroud

$8.99

$

Usually ships in 3-6 days

0

113

MTD 951-14149

Crankcase

$112.99

$

Usually ships in 3-6 days

0

114

MTD 951-11350

Oil Drain Pipe

$8.49

$

Usually ships in 3-6 days

0

115

MTD 736-04440

Washer, 10×1.5×16
(Superseded to 736-04440A)

$6.49

$

In Stock, Qty 6

0

116

MTD 710-04906

Drain Bolt

$6.49

$

In Stock, Qty 6

0

117

MTD 951-11370

Oil Seal, 25×41.25×6
(Superseded to 751P11370A)

$2.49

$

In Stock, only 2 left!

0
