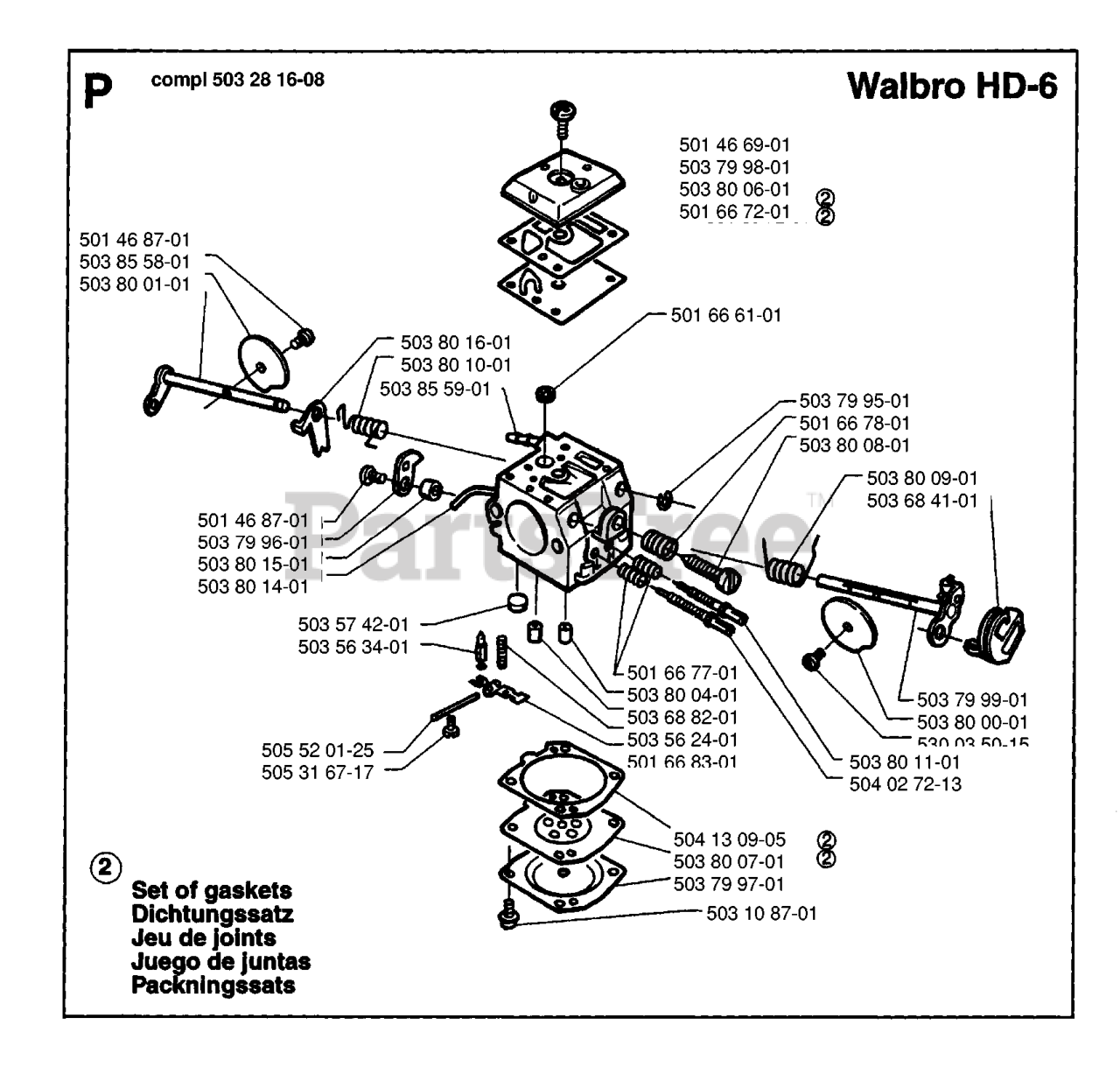

371 XP - Husqvarna Chainsaw (SN: 19954900001 - 19960900000) CARBURETOR DETAILS Parts Diagram

Chainsaw

CARBURETOR DETAILS Parts Diagram

  • Title

503 28 16-08

Husqvarna 503281608

CARBURETOR HD-6
(Superseded to 503281805)

$100.99

$

Usually ships in 3-10 days

0

505 31 67-17

Husqvarna 505316717

SCREW

$3.49

$

In Stock, Qty 5

0

503 80 10-01

Husqvarna 503801001

SPRING

$

$

Not available

503 80 00-01

Husqvarna 503800001

THROTTLE FLAP

$3.49

$

Usually ships in 3-10 days

0

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$6.99

$

Usually ships in 3-10 days

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$6.49

$

In Stock, Qty 12

0

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

503 79 95-01

Husqvarna 503799501

CLIP

$5.99

$

Usually ships in 3-10 days

0

503 68 41-01

Husqvarna 503684101

LEVER

$6.99

$

In Stock, Qty 17

0

503 56 24-01

Husqvarna 503562401

SPRING

$4.99

$

In Stock, only 4 left!

0

503 79 99-01

Husqvarna 503799901

SHAFT

$9.49

$

Usually ships in 3-10 days

0

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$6.99

$

In Stock, only 4 left!

0

503 80 11-01

Husqvarna 503801101

SCREW

$4.99

$

In Stock, only 1 left!

0

503 79 97-01

Husqvarna 503799701

COVER
(Superseded to 537077601)

$6.49

$

Usually ships in 3-10 days

0

503 80 09-01

Husqvarna 503800901

SPRING

$4.99

$

Usually ships in 3-10 days

0

503 80 07-01

Husqvarna 503800701

GASKET

Note: SET OF GASKETS

$7.99

$

Usually ships in 3-10 days

0

503 85 59-01

Husqvarna 503855901

RP NIPPLE

$17.30

$

Usually ships in 3-10 days

0

503 80 16-01

Husqvarna 503801601

LEVER
(Superseded to 537029801)

$

$

Not available

503 80 08-01

Husqvarna 503800801

SCREW

$20.99

$

In Stock, only 1 left!

0

501 66 83-01

Husqvarna 501668301

LEVER

$3.49

$

Usually ships in 3-10 days

0

501 66 77-01

Husqvarna 501667701

SPRING

$2.49

$

In Stock, only 3 left!

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

504 02 72-13

Husqvarna 504027213

IDLING SCREW

$4.99

$

Usually ships in 3-10 days

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

501 46 87-01

Husqvarna 501468701

SCREW

$6.49

$

Usually ships in 3-10 days

0

503 80 14-01

Husqvarna 503801401

TUBE

$4.99

$

In Stock, only 4 left!

0

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

501 46 69-01

Husqvarna 501466901

SCREW

$3.99

$

In Stock, Qty 5

0

503 68 82-01

Husqvarna 503688201

JET

$4.99

$

Usually ships in 3-10 days

0

503 80 06-01

Husqvarna 503800601

GASKET
(Superseded to 501666901)

Note: SET OF GASKETS

$5.99

$

In Stock, Qty 5

0

503 79 98-01

Husqvarna 503799801

COVER

$5.99

$

Usually ships in 3-10 days

0

504 13 09-05

Husqvarna 504130905

GASKET

Note: SET OF GASKETS

$3.49

$

In Stock, Qty 5

0

503 80 04-01

Husqvarna 503800401

NOZZLE

$4.99

$

In Stock, only 1 left!

0

503 85 58-01

Husqvarna 503855801

CHOKE FLAP

$3.49

$

In Stock, only 1 left!

0

503 79 96-01

Husqvarna 503799601

LEVER

$4.99

$

Usually ships in 3-10 days

0

501 66 72-01

Husqvarna 501667201

FUEL PUMP DIAPHRAGM
(Superseded to 502254701)

Note: SET OF GASKETS

$5.99

$

In Stock, only 2 left!

0

503 80 01-01

Husqvarna 503800101

SHAFT

$

$

Not available

503 80 15-01

Husqvarna 503801501

BUSHING

$3.99

$

In Stock, only 1 left!

0
