381450HBVE (84270) - Snapper 38" Rear-Engine Riding Mower, 14hp Seat & Seat Mount Assemblies Parts Diagram

38" Rear-Engine Riding Mower, 14hp

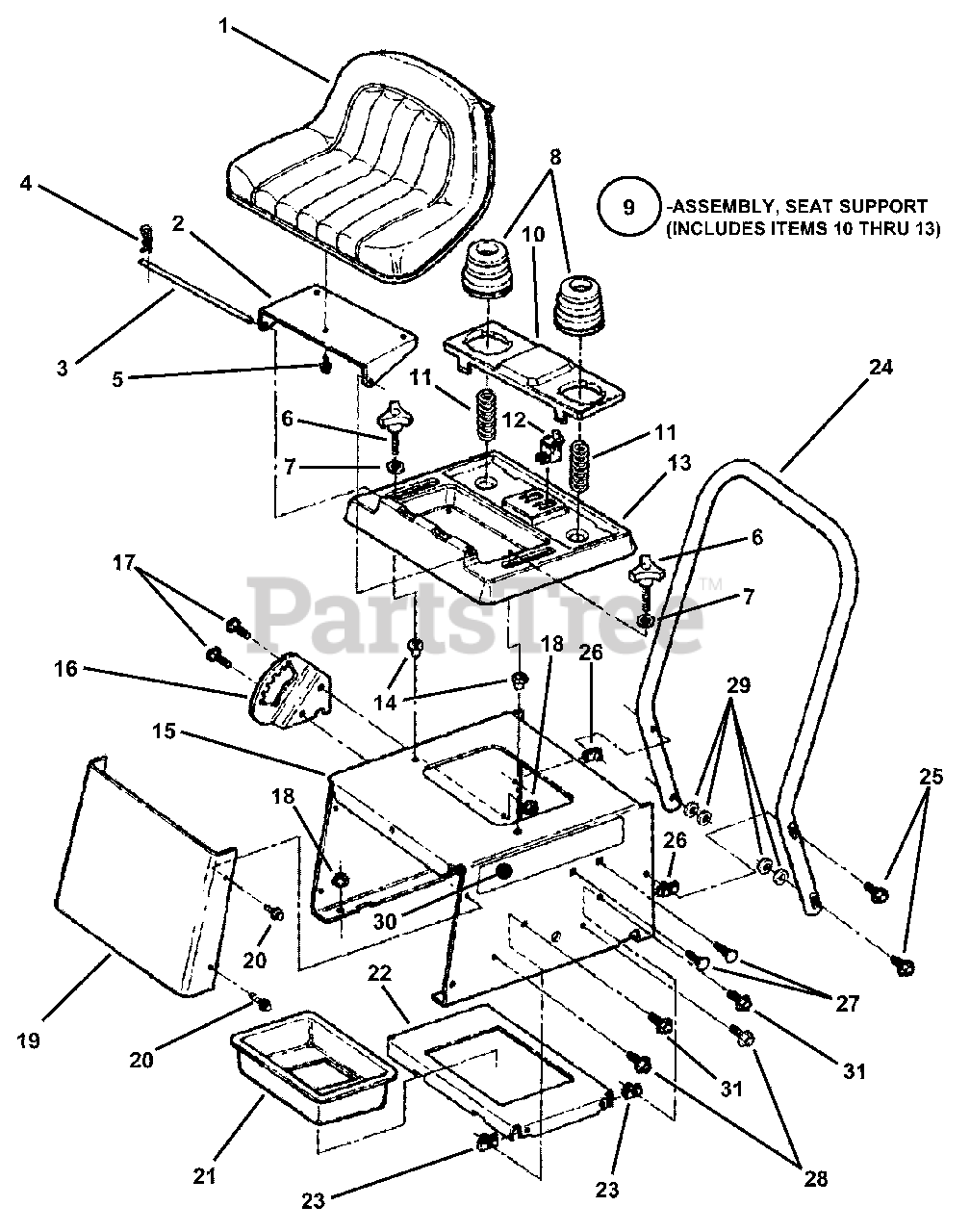

Seat & Seat Mount Assemblies Parts Diagram

  • Title

1

Snapper 7028621

SEAT
(Superseded to 7075063YP)

Note: (Series 1)

$301.99

$

Usually ships in 2-12 days

0

1

Snapper 7046221

SEAT
(Superseded to 7046221YP)

Note: (Series 0)

$319.99

$

Usually ships in 2-12 days

0

2

Snapper 7033318

BRACKET, Seat Support

$12.99

$

Usually ships in 2-12 days

0

3

Snapper 7074452

ROD, Seat Hinge
(Superseded to 7074452YP)

$10.99

$

Usually ships in 2-12 days

0

4

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7091525

BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

6

Snapper 7017875

KNOB, Seat Adjustment
(Superseded to 7017875YP)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 7090188

WASHER, .344 I.D. x 11/16 O.D. x 1/16" Thick Flat
(Superseded to 703350)

Note: (Was 91296)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7019109

RUBBER COVER, Spring
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

9

Snapper 7059215

ASSEMBLY, Seat Support
(Superseded to 7059215YP)

Note: (Includes Items 10 thru 13)

$186.99

$

In Stock, only 2 left!

0

10

Snapper 7028580

HOLDER, Seat Cushion
(Superseded to 7028580YP)

$50.99

$

In Stock, only 1 left!

0

11

Snapper 7073266

SPRING, Cushion Holder
(Superseded to 7073266YP)

$5.99

$

In Stock, only 4 left!

0

12

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 7074204

SUPPORT, Seat
(Superseded to 7074204YP)

$79.99

$

Usually ships in 2-12 days

0

14

Snapper 7091761

RIV-NUT, 5/16-18 Round

$

$

Not available

15

Snapper 7045346

PEDESTAL, Seat

$

$

Currently unavailable

16

Snapper 7046752

QUADRANT, Height-of-Cut
(Superseded to 7046752YP)

$29.99

$

Usually ships in 2-12 days

0

17

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7046674

COVER, Seat Pedestal Front
(Superseded to 7046674YP)

$66.99

$

Usually ships in 2-12 days

0

20

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

21

Snapper 7017853

TRAY, Battery
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0

22

Snapper 7046199

PLATE, Battery Holder

$

$

Not available

23

Snapper 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

24

Snapper 7046203

HANDLE, Grab
(Superseded to 7046203YP)

$67.99

$

Usually ships in 2-12 days

0

25

Snapper 7091270

SCREW, 5/16-18 x 1-3/4" Hex Washer Self-Tap
(Superseded to 7091270YP)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7016116

NUT, 5/16 Push-On
(Superseded to 7016116YP)

$2.49

$

In Stock, Qty 10

0

27

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

28

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7014098

WASHER, 5/16" I.D. x 1" O.D. x 3/32" Thick Flat
(Superseded to 7014098SM)

$16.99

$

In Stock, only 2 left!

0

30

Snapper 7072136

DECAL, Seat Pedestal

$

$

Not available

31

Snapper 7090999

SCREW, 1/4-20 x 5/8 Truss Head Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0
