38515 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 280000001 - 280999999) (2008) HANDLE ASSEMBLY Parts Diagram

24" GTS Snow Thrower

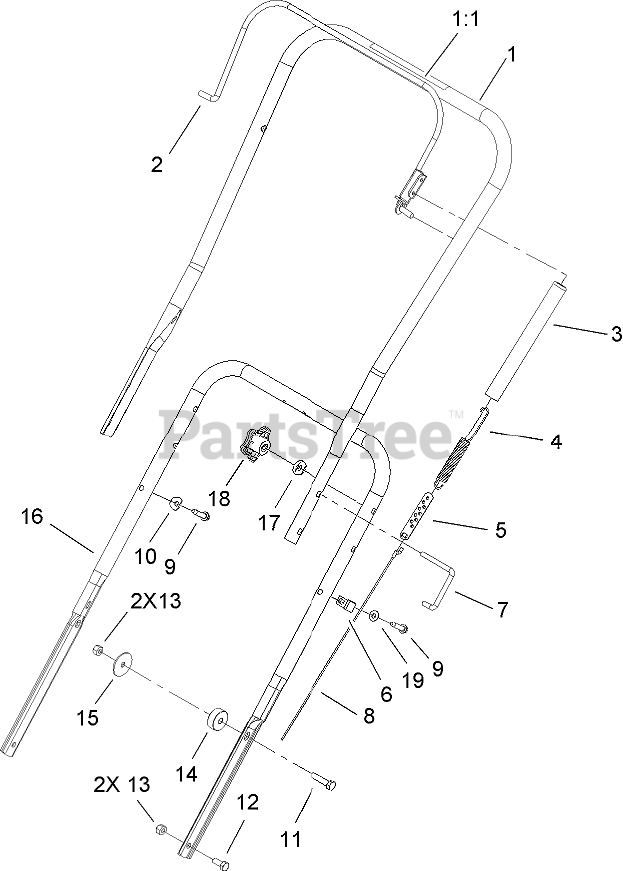

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-2667

HANDLE-UPPER

$

$

Not available

1:1

Toro 104-2775

DECAL-DRIVE, ROTOR

$3.49

$

Usually ships in 3-6 days

0

2

Toro 71-5120-03

BAIL ASM

$40.99

$

In Stock, only 3 left!

0

3

Toro 71-5530

COVER-SPRING

$4.99

$

In Stock, only 2 left!

0

4

Toro 71-5480

SPRING-CLUTCH

$6.99

$

In Stock, only 2 left!

0

5

Toro 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 20+

0

6

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

7

Toro 98-2266

LOCK-HANDLE

$4.99

$

Usually ships in 3-6 days

0

8

Toro 110-3437

CABLE-CLUTCH

$13.99

$

In Stock, only 4 left!

0

9

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

10

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

11

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 105-1961

SPACER

$4.99

$

In Stock, only 1 left!

0

15

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

16

Toro 55-9121-03

HANDLE-LOWER

$93.99

$

Usually ships in 3-6 days

0

17

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 9

0

18

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
