38515 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 310000001 - 310006876) (2010) SHROUD ASSEMBLY Parts Diagram

24" GTS Snow Thrower

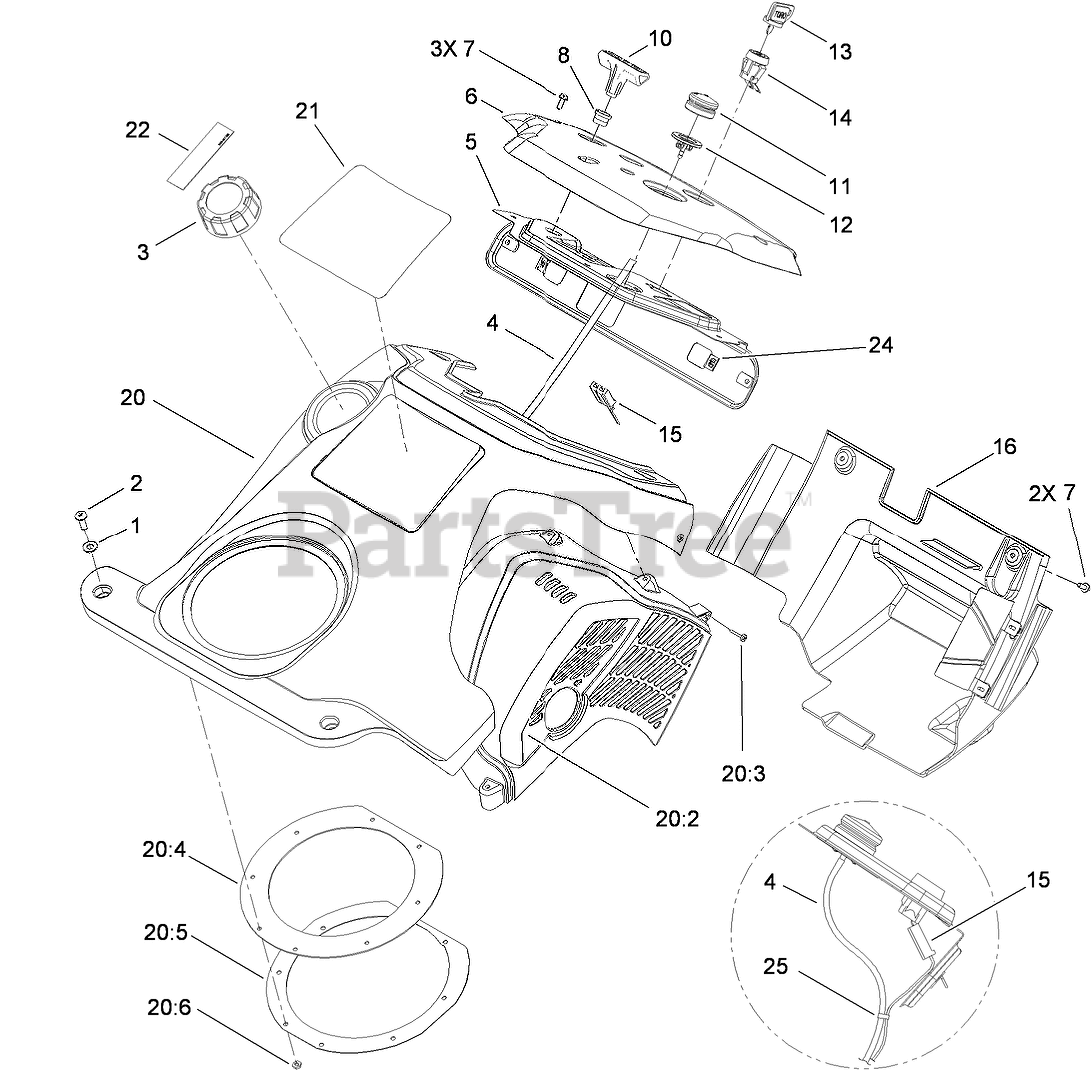

SHROUD ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

3

Toro 104-4133

GAS CAP ASM

$14.99

$

In Stock, only 1 left!

0

4

Toro 98-1372

HOSE-PRIMER

$4.99

$

In Stock, Qty 20+

0

5

Toro 105-1999-03

PANEL-SUPPORT, CONTROL

$46.99

$

Usually ships in 3-6 days

0

6

Toro 105-3521

PANEL-CONTROL

$102.99

$

Usually ships in 3-6 days

0

7

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 55-9410

GUIDE-ROPE, STARTER

$9.49

$

Usually ships in 3-6 days

0

10

Toro 92-4853

HANDLE-STARTER

$8.49

$

In Stock, only 3 left!

0

11

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

12

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

13

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

14

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 11

0

15

Toro 218-532

CONNECTOR-BODY

$13.99

$

Usually ships in 3-6 days

0

16

Toro 108-7335

LOWER SHROUD/BAFFLE ASM

$

$

Not available

20

Toro 110-2187

UPPER SHROUD ASM

$188.99

$

Usually ships in 3-6 days

0

20:2

Toro 108-7333

SHIELD-HEAT

$41.99

$

Usually ships in 3-6 days

0

20:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

20:4

Toro 105-3543

Seal-Chute

$12.99

$

In Stock, only 1 left!

0

20:5

Toro 55-9540-03

RETAINER-SEAL, CHUTE

$18.99

$

In Stock, only 1 left!

0

20:6

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 11

0

21

Toro 114-9268

DECAL

$13.99

$

Usually ships in 3-6 days

0

22

Toro 104-9748

TAPE-MIX, OIL

$

$

Currently unavailable

24

Toro 100-9889

NUT-SPEED

$6.49

$

In Stock, only 2 left!

0

25

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0
