38516x29B - Murray 38" Lawn Tractor (1999) Mower Housing Parts Diagram

38" Lawn Tractor

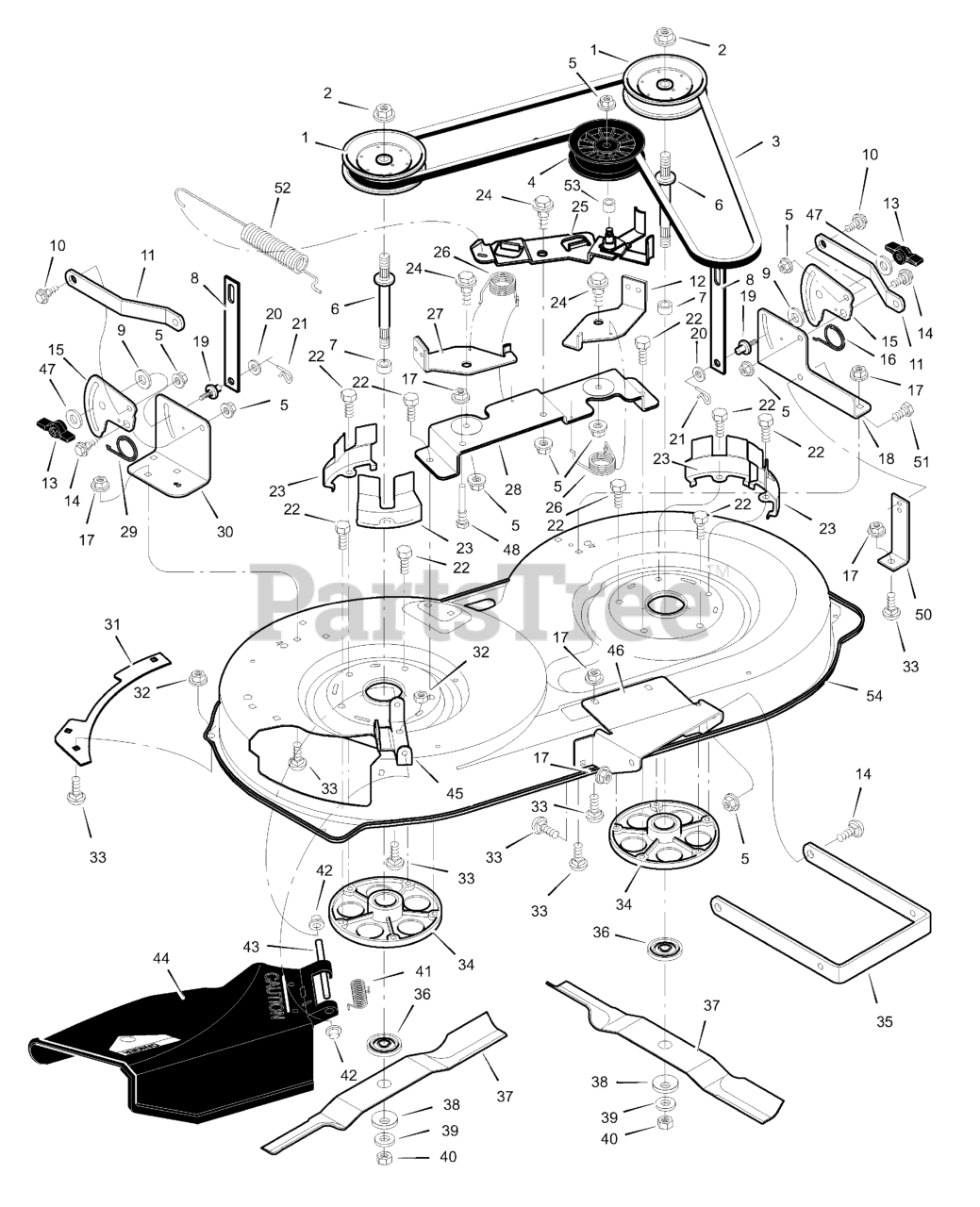

Mower Housing Parts Diagram

  • Title

1

Murray 092852MA

Pulley, Jackshaft

$31.99

$

In Stock, only 1 left!

0

2

Murray 15X121

Nut, Hex

$9.99

$

In Stock, Qty 7

0

3

Murray 037X86MA

Belt, Mower Drive

$43.99

$

Usually ships in 2-12 days

0

4

Murray 091801

Pulley, Idler
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 8

0

5

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 094129

Jackshaft

$21.99

$

In Stock, Qty 11

0

7

Murray 094130MA

Spacer

$5.99

$

In Stock, Qty 12

0

8

Murray 690212E700

Link, Lift

$

$

Currently unavailable

9

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

10

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

11

Murray 094055E701MA

Bracket, Suspension

$13.99

$

Usually ships in 2-12 days

0

12

Murray 094049E701MA

Pad Assembly, Left Brake

$

$

Not available

13

Murray 094068MA

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

15

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43MA

Spring

$4.99

$

In Stock, only 2 left!

0

17

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 094054E700

Bracket, Suspension

$

$

Currently unavailable

19

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

20

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

21

Murray 0031X4MA

Pin, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 094051E701MA

Cover, Pulley
(Superseded to 7300859BMYP)

$31.99

$

In Stock, only 2 left!

0

24

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

25

Murray 690408

Arm, Idler

$6.49

$

Usually ships in 2-12 days

0

26

Murray 166X41MA

Spring

$4.99

$

In Stock, only 2 left!

0

27

Murray 094047E701MA

Pad Assembly, Right Brake

$

$

Not available

28

Murray 094059E700MA

Bracket Assembly, Brake
(Superseded to 094059E701MA)

$131.99

$

Usually ships in 2-12 days

0

29

Murray 166X42MA

Spring

$4.99

$

In Stock, Qty 8

0

30

Murray 094052E701

Bracket, Right Suspension

$42.99

$

Usually ships in 2-12 days

0

31

Murray 091770E700MA

Plate
(Superseded to 091770E701MA)

$10.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 090905

Mandrel

$

$

Currently unavailable

35

Murray 690539E701MA

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0

36

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, only 2 left!

0

37

Murray 094913E701MA

Blade

$27.99

$

Usually ships in 2-12 days

0

38

Murray 17X166MA

Washer

$13.99

$

In Stock, Qty 18

0

39

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

40

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 11

0

41

Murray 0166X4MA

Spring

$6.49

$

In Stock, Qty 9

0

42

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707MA

Deflector Assembly

$108.99

$

In Stock, only 3 left!

0

45

Murray 094956E701MA

Bracket, Deflector

$22.99

$

Usually ships in 2-12 days

0

46

Murray 094062E700

Bracket, Front Hanger

$51.99

$

Usually ships in 2-12 days

0

47

Murray 017X45 Z

Washer

$

$

Currently unavailable

48

Murray 094781MA

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

50

Murray 094681E700

Bracket, Support

$13.99

$

Usually ships in 2-12 days

0

51

Murray 26X249MA

Screw

$

$

Not available

52

Murray 165X118MA

Spring, Extension

$10.99

$

Usually ships in 2-12 days

0

53

Murray 690369MA

Spacer

$

$

Not available

54

Murray 94060E700

Housing, Blade

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 47 and 51)

$

$

Currently unavailable
