38570 (828) - Toro 28" Power Shift Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 190406-6142-01 Parts Diagram

28" Power Shift Snow Thrower

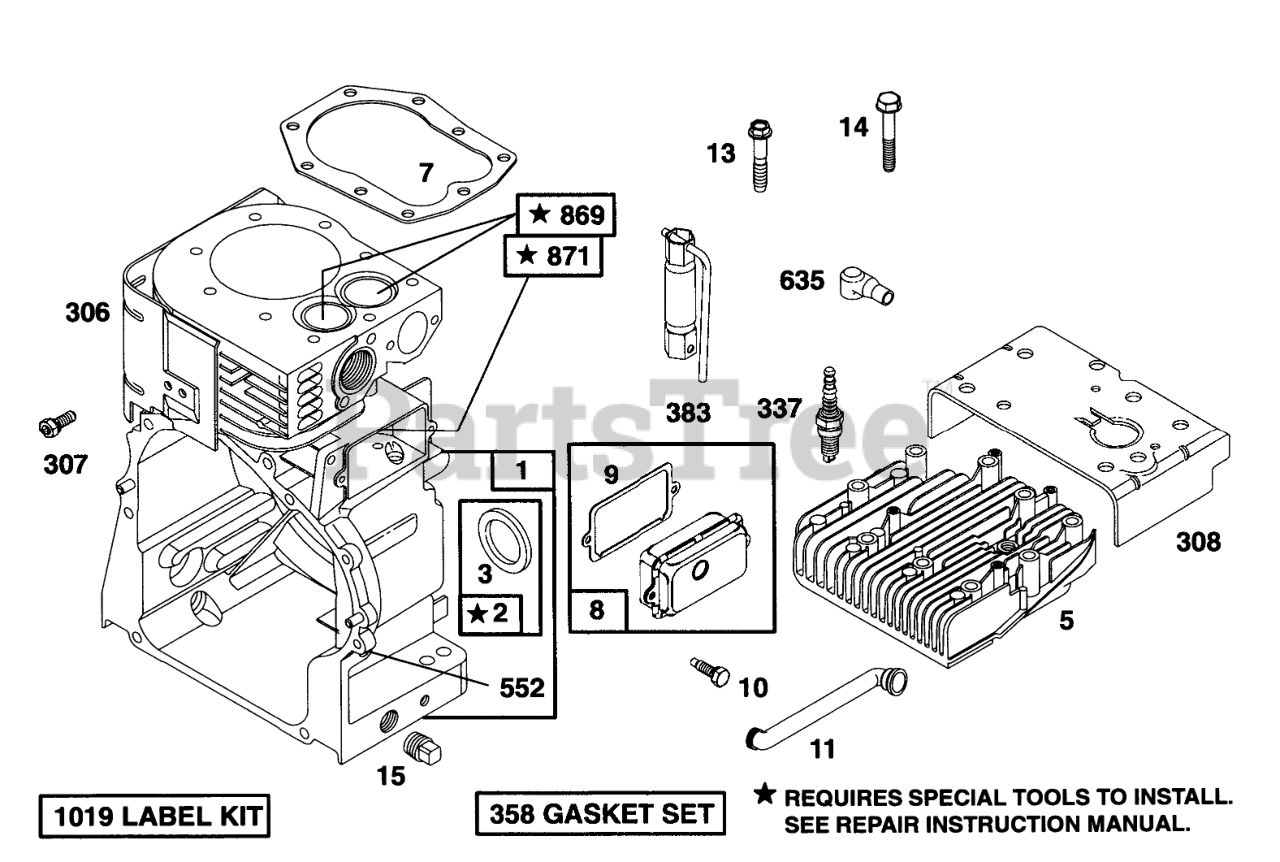

ENGINE BRIGGS & STRATTON MODEL 190406-6142-01 Parts Diagram

  • Title

1

Briggs & Stratton 495631

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 495657

Bushing
(Superseded to 698340)

$22.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 299577.

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 212918

Head-Cylinder

$51.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163

Gasket-Cylinder Hd.
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577.

$7.99

$

In Stock, Qty 11

0

8

Briggs & Stratton 495724

Breather Assembly

$122.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280733

Tube-Breather

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94565

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 13

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

53

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

306

Briggs & Stratton 224898

Shield-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93949

Screw-Sem
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

308

Briggs & Stratton 221901

Cover-Cylinder Head

$9.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 18

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, only 4 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

552

Briggs & Stratton 491893

Bushing-Gov. Crank

$107.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 15

0

869

Briggs & Stratton 211661

Seat-Ex. Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Guide-Valve

$14.99

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 491181

Decal Kit

$40.99

$

Usually ships in 2-12 days

0
