38570 (828) - Toro 28" Power Shift Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 190406-6142-01 Parts Diagram

28" Power Shift Snow Thrower

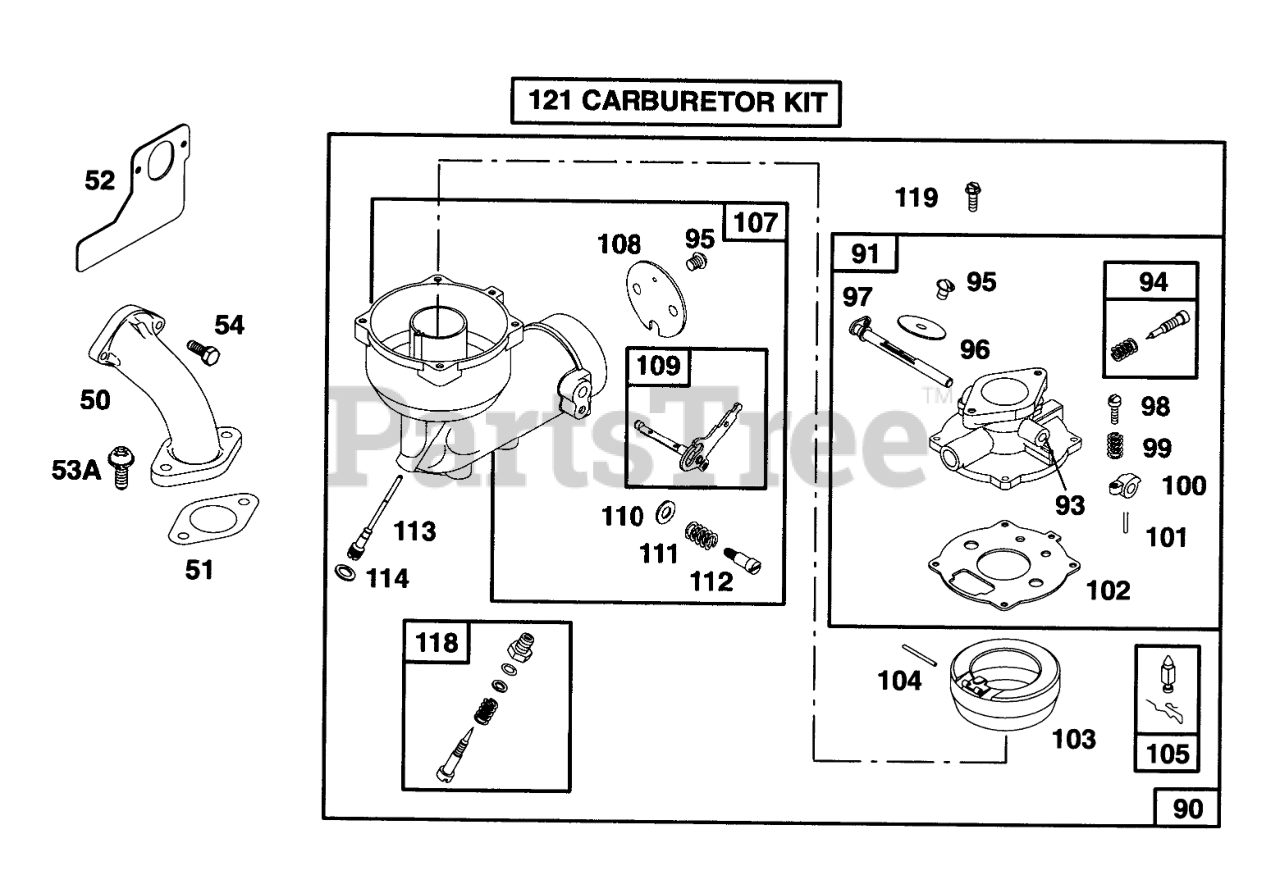

ENGINE BRIGGS & STRATTON MODEL 190406-6142-01 Parts Diagram

  • Title

50

Briggs & Stratton 490050

Elbow-Intake

$23.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 270684

Gasket-Carb. Mtg.

Note: Include in Gasket Set-Part No. 299577.

$4.99

$

In Stock, Qty 15

0

52

Briggs & Stratton 27828

Gasket-Intake Elbow
(Superseded to 27828S)

Note: Include in Gasket Set-Part No. 299577.

$4.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, Qty 7

0

90

Briggs & Stratton 490140

Carburetor

$262.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 399443

Body Assy.-Upper

$128.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Kit-Part No. 398235.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 223370

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 212904

Stop-Throttle
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Body

Note: Included in Carburetor Kit-Part No. 398235.

$4.49

$

In Stock, Qty 6

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 3 left!

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Kit-Part No. 398235.

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Valve-Fuel Inlet

Note: Included in Carburetor Kit-Part No. 398235.

$7.99

$

In Stock, Qty 16

0

107

Briggs & Stratton 399258

Body Assy.-Lower

$36.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 223727

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391888

Shaft Assy.-Choke

$12.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 222712

Washer

$5.49

$

In Stock, only 2 left!

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 8

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

$6.49

$

In Stock, only 4 left!

0

113

Briggs & Stratton 398202

Jet-Needle Valve

Note: Included in Carburetor Kit-Part No. 398235.

$29.99

$

In Stock, only 2 left!

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Kit-Part No. 398235.

$6.49

$

In Stock, Qty 11

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Carburetor Kit-Part No. 398235.

$12.99

$

In Stock, only 3 left!

0

119

Briggs & Stratton 94152

Screw
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 398235

Carburetor Kit
(Superseded to 394693)

$31.99

$

In Stock, Qty 8

0
