390 XP/XPG/XPW - Husqvarna Chainsaw (SN: 20064000001 & Above) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

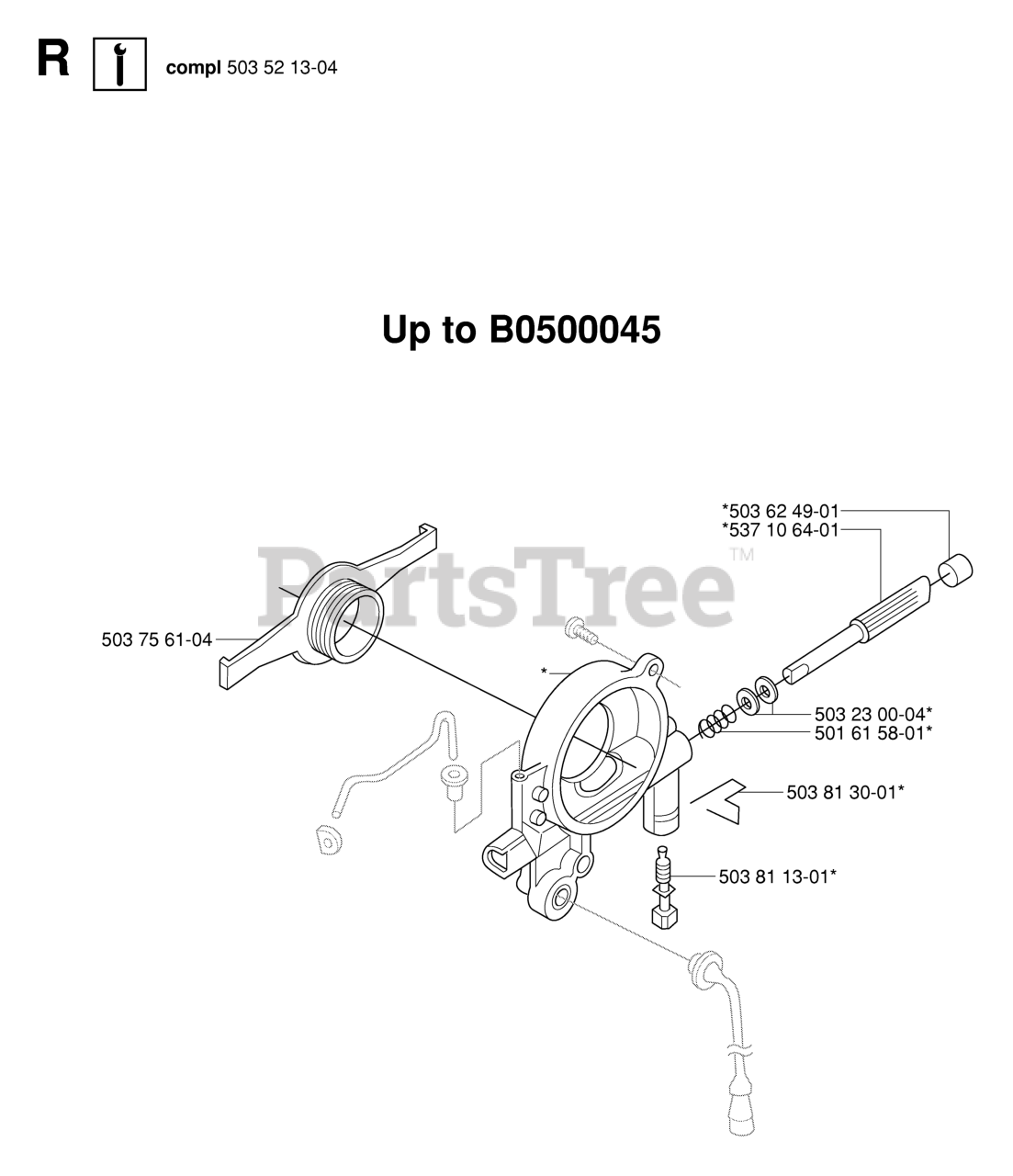

CLUTCH & OIL PUMP Parts Diagram

  • Title

503 97 51-01

Husqvarna 503975101

CLUTCH SPRING

$7.99

$

In Stock, only 3 left!

0

537 10 64-01

Husqvarna 537106401

PUMP PISTON

$20.99

$

Usually ships in 3-10 days

0

503 97 50-01

Husqvarna 503975001

CLUTCH
(Superseded to 537257501)

$87.99

$

Usually ships in 3-10 days

0

537 39 60-01

Husqvarna 537396001

INSERT OIL PUMP
(Superseded to 537396002)

$13.99

$

In Stock, only 1 left!

0

504 30 00-26

Husqvarna 504300026

SEAL

$6.99

$

In Stock, Qty 7

0

505 30 36-61

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

$7.99

$

Usually ships in 3-10 days

0

503 77 43-01

Husqvarna 503774301

PIPE

$17.99

$

In Stock, only 2 left!

0

503 43 20-01

Husqvarna 503432001

CLUTCH DRUM BEARING

$15.99

$

In Stock, Qty 20+

0

503 52 13-05

Husqvarna 503521305

OIL PUMP

$109.99

$

In Stock, Qty 8

0

537 20 78-03

Husqvarna 537207803

OIL PUMP PINION
(Superseded to 537207806)

$13.84

$

Usually ships in 3-10 days

0

503 62 49-01

Husqvarna 503624901

PLUG

$8.99

$

Usually ships in 3-10 days

0

503 81 30-01

Husqvarna 503813001

SPRING CLIP

$7.49

$

In Stock, only 2 left!

0

503 70 15-02

Husqvarna 503701502

CLUTCH

$87.99

$

Usually ships in 3-10 days

0

537 13 79-71

Husqvarna 537137971

CLUTCH ASSY

$69.99

$

Usually ships in 3-10 days

0

503 42 67-01

Husqvarna 503426701

OIL HOSE

$18.99

$

In Stock, only 3 left!

0

503 75 61-04

Husqvarna 503756104

PINION

$17.99

$

In Stock, only 1 left!

0

501 59 80-02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

$8.49

$

In Stock, Qty 20+

0

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

503 75 24-01

Husqvarna 503752401

WASHER

$6.49

$

In Stock, Qty 20+

0

503 23 00-04

Husqvarna 503230004

WASHER 6.1X9

$7.49

$

Usually ships in 3-10 days

0

503 52 13-04

Husqvarna 503521304

OIL PUMP
(Superseded to 503521305)

$109.99

$

In Stock, Qty 8

0

501 61 58-01

Husqvarna 501615801

SPRING

$6.49

$

Usually ships in 3-10 days

0

503 81 13-01

Husqvarna 503811301

SCREW

$7.49

$

In Stock, only 2 left!

0

725 53 29-56

Husqvarna 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$6.49

$

In Stock, Qty 20+

0

503 64 47-01

Husqvarna 503644701

GROMMET

$10.99

$

In Stock, only 1 left!

0

503 14 51-01

Husqvarna 503145101

CLUTCH SPRING

$11.99

$

In Stock, Qty 15

0

503 23 00-14

Husqvarna 503230014

WASHER 15X24
(Superseded to 503230058)

$6.99

$

In Stock, Qty 12

0

537 13 79-72

Husqvarna 537137972

CLUTCH ASSY

$62.99

$

Usually ships in 3-10 days

0

537 13 79-02

Husqvarna 537137902

CLUTCH DRUM ASSY .404

$62.99

$

Usually ships in 3-10 days

0

501 59 79-02

Husqvarna 501597902

22270 RIMSPROCKET

$12.99

$

In Stock, only 4 left!

0

503 27 21-01

Husqvarna 503272101

RETAINING RING

$3.99

$

In Stock, Qty 20+

0
