3X 34 MAX H (31AH8M4VB10) - Cub Cadet 3X 34" MAX H Snow Thrower (2023) Transmission Parts Diagram

3X 34" MAX H Snow Thrower

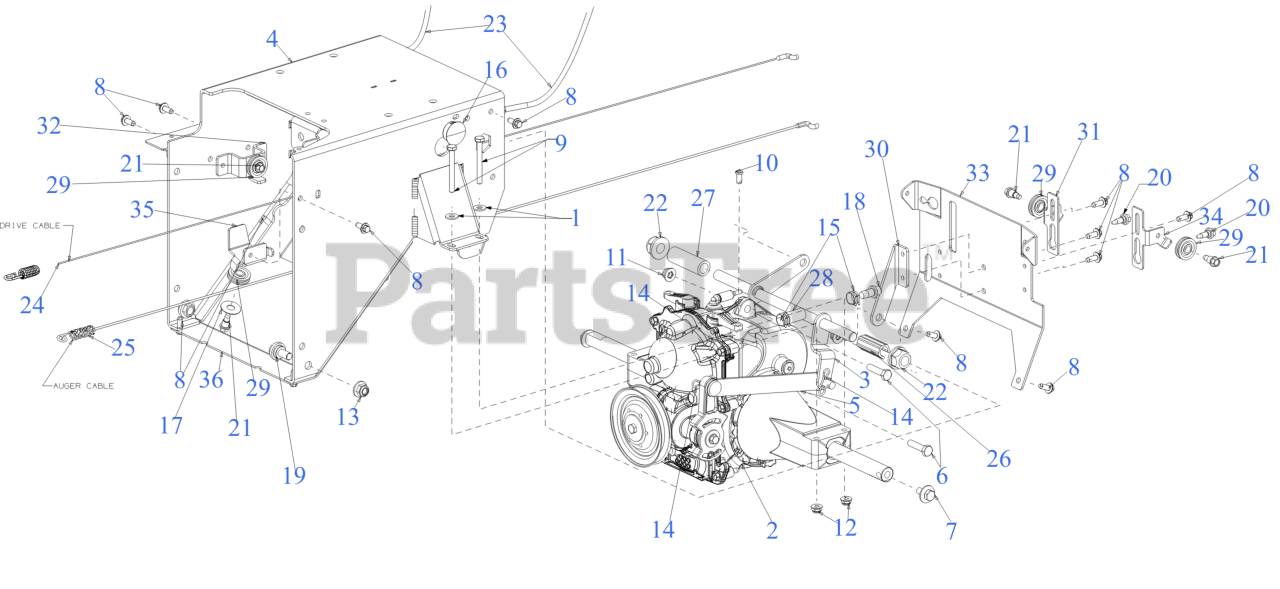

Transmission Parts Diagram

  • Title

1

Cub Cadet 1751

FLAT WASHER 1/4 SAE ZINC

$0.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07236A

HYDRO TRANSMISSION ASSEMBLY

$969.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-05150

CONTROL SHAFT ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05151A

DRIVE FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-05151A-0637

BLACK FRAMEDRIVE HSG - POWDER BLACK (0637)

$301.99

$

Usually ships in 3-6 days

0

$280.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-05177

SHIFT LINKAGE

$27.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0641

SCREW 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 911-0701

CLEVIS PIN-1/4X1/2

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

15

Cub Cadet 726-05003

HOSE CLAMP

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-09477

PLASTIC PLUG

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0344

FLAT WASHER

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 737-0296

VENT

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 738-04130A

SHOULDER SCREW .625X.165X3/8-16

$9.49

$

In Stock, Qty 13

0

20

Cub Cadet 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 18

0

22

Cub Cadet 741-04453A

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 946-05275

STEERING CABLE

$44.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 946-05294

WHEEL DRIVE CABLE 48.31"

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 746-06997

CBL:CLU:AUGER:48.237 LG

$

$

Currently unavailable

26

Cub Cadet 750-05021

SPACER-.491 ID x 1.67 LG

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-06558

SLEEVE SPACER .525 x .78 x 2.36

$8.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 751-10350A-11

FUEL HOSE LOW PERMEATION 11"

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 756-0625

CABLE GUIDE ROLLER

$9.49

$

In Stock, Qty 19

0

30

Cub Cadet 790-00739

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00739-0637

BRKT-TRANSMSN MTG - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 790-00749

CABLE IDLER BRACKET (RH)

$15.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 790-00750

DRIVE CABLE GUIDE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00750-0637

BRKT-DRV CBL GDE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 790-00757

FRAME PLATE (REAR)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00757-0637

PLT-DRV FRM REAR - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 790-00762

CABLE IDLER BRACKET (LH)

$15.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 790-00779

AUGER CABLE GUIDE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00779-0637

BRKT-AUGR CBL GDE - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 790-00789A

LOWER DRIVE FRAME COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00789A-0637

CVR-DRV FRAME LWR - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0
