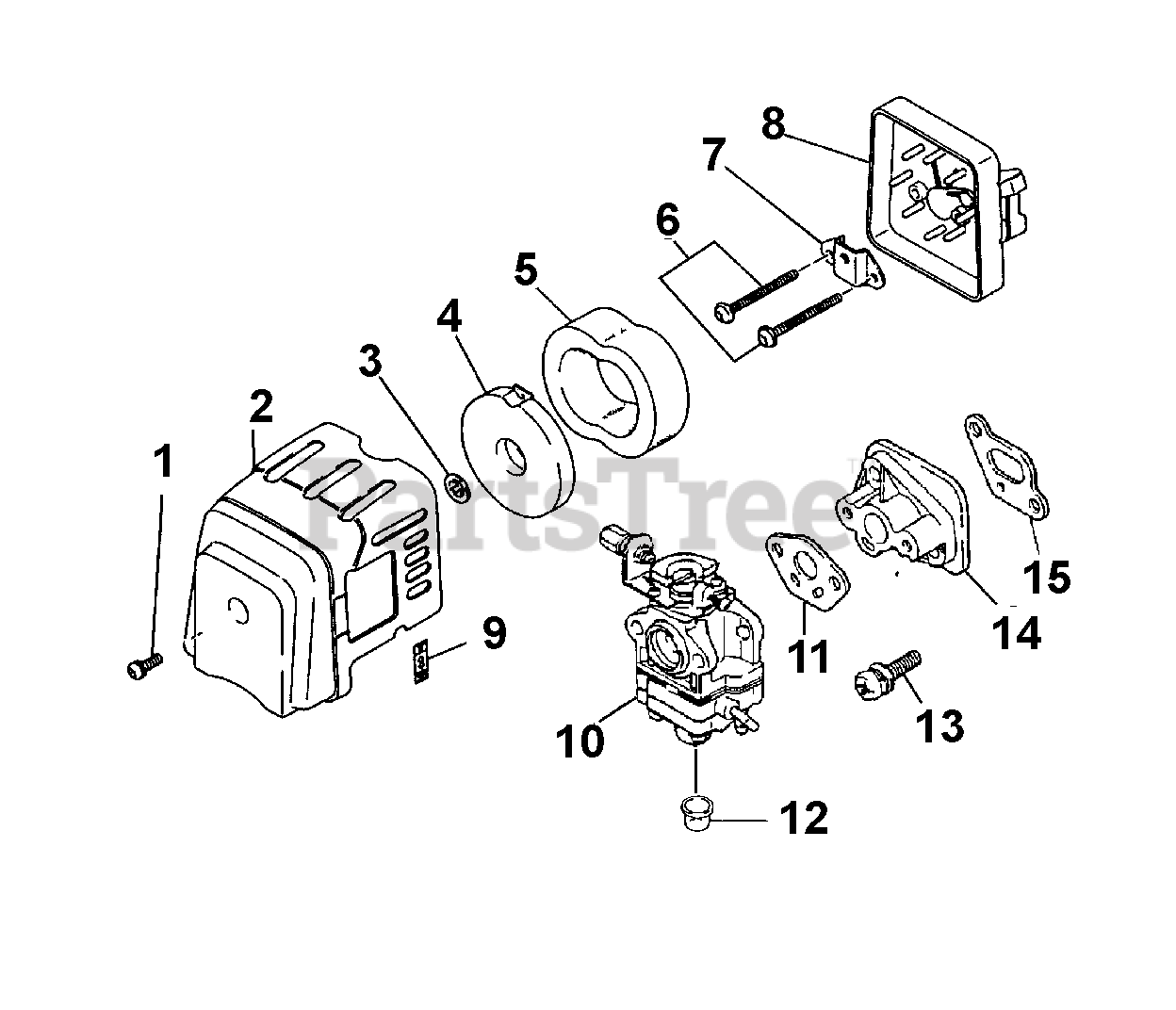

4000 J (UT-26042) - Green Machine String Trimmer Air Cleaner Parts Diagram

String Trimmer

Air Cleaner Parts Diagram

  • Title

1

Homelite 07794

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4.5 Nm)

$

$

Not available

2

Homelite 0926040

Cover, Cleaner

$

$

Not available

3

Homelite 07753

Pal Nut

$

$

Not available

4

Homelite 0926041

Holder

$

$

Not available

5

Homelite 0926042

Element

$

$

Not available

6

Homelite 07749

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4.5 Nm)

$

$

Not available

7

Homelite 0926043

Bracket

$

$

Not available

8

Homelite 0926044

Base, Cleaner

$

$

Not available

9

Homelite 07754

Label, Choke

$

$

Not available

10

Homelite 0926045

Carburetor

$

$

Not available

11

Homelite 0926046

Gasket, Carburetor

$

$

Not available

12

Homelite 0926047

Primer Bulb

$

$

Not available

13

Homelite 0926048

Screw & Washer

Note: (Torque Specs 35-45 In/Lbs 4.5 Nm)

$

$

Not available

14

Homelite 0926049

Insulator

$

$

Not available

15

Homelite 0926050

Gasket, Insulator

$

$

Not available
