4000 J (UT-26042) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

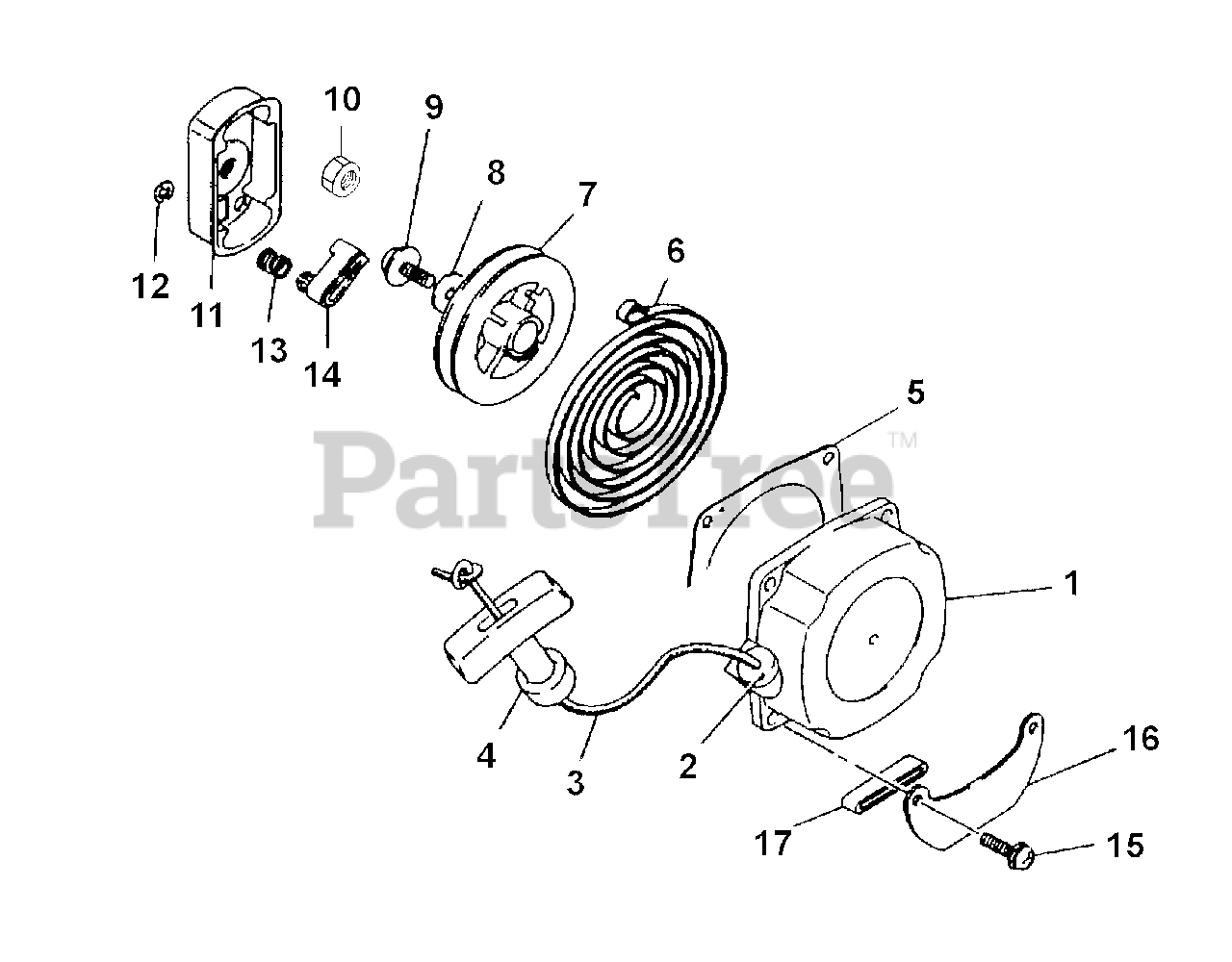

Starter Parts Diagram

  • Title

1

Homelite 0926001

Starter Assembly

$

$

Not available

2

Homelite 07772

Guide

$

$

Not available

3

Homelite GM287305

Rope

$

$

Not available

4

Homelite GM287306

Grip

$

$

Not available

5

Homelite 0926002

Plate

$

$

Not available

6

Homelite 0926003

Spring

$

$

Not available

7

Homelite 0926004

Reel

$

$

Not available

8

Homelite 0926005

Washer

$

$

Not available

9

Homelite 0926006

Screw & Washer

Note: (Torque Spec 35-45 In/Lbs 4-5 Nm)

$

$

Not available

10

Homelite 07734

Nut

Note: (Torque Spec 52-69 In/Lbs 5.9-7.8 Nm)

$

$

Not available

11

Homelite 0926007

Pulley Assembly

$

$

Not available

12

Homelite 0926008

Snap Ring

$

$

Not available

13

Homelite 0926009

Spring, Return

$

$

Not available

14

Homelite 0926010

Ratchet

$

$

Not available

15

Homelite 0926011

Screw & Washer

Note: (Torque Spec 35-45 In/Lbs 4.5 Nm)

$

$

Not available

16

Homelite 0926012

Bracket

$

$

Not available

17

Homelite 07778

Pad, Bracket

$

$

Not available
