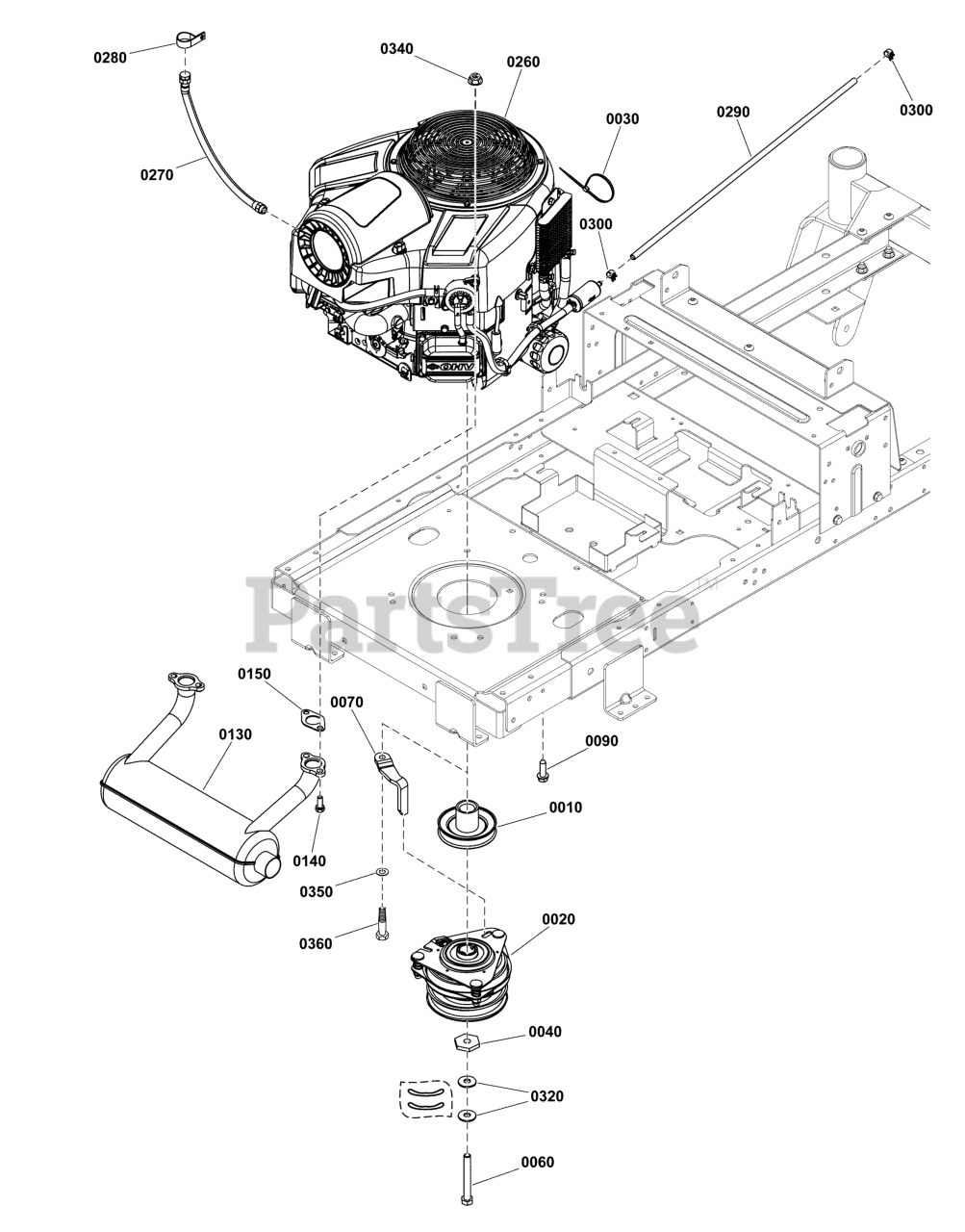

400S (5901775) - Ferris 400S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Engine and PTO Group - Briggs & Stratton 44T977 Parts Diagram

400S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

Engine and PTO Group - Briggs & Stratton 44T977 Parts Diagram

  • Title

0010

Ferris 1757995

PULLEY ASSEMBLY, ENGINE - ZT
(Superseded to 1757995YP)

$39.99

$

Usually ships in 2-12 days

0

0020

Ferris 1736105

CLUTCH, Electric, Mid Ogura
(Superseded to 1736105SM)

$387.99

$

Usually ships in 2-12 days

0

0030

TIE, 7, Self Lock

Note: (Secures wire harness away from moving parts.)

$

$

Not available

0040

Ferris 1708264

WASHER, Hex, .453 I.D. x 1-1/2"
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 7

0

0060

Ferris 1960649

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP
(Superseded to 1960649SM)

Note: Torque clutch mounting bolt to: 50-60 ft-lbs [67-81 Nm])

$7.49

$

In Stock, only 1 left!

0

0070

Ferris 1737421A

GUIDE, Belt Retainer, Clutch
(Superseded to 1737421AYP)

$12.99

$

In Stock, only 1 left!

0

0090

Ferris 80020381

SCREW-HEX WSHR HD TAPTT 3/8-16X1.250, ZC
(Superseded to 75246GS)

Note: Torque engine mounting bolts to: 15-17 ft-lbs [20-23 Nm])

$3.99

$

Usually ships in 2-12 days

0

0130

Ferris 1758350

MUFFLER, ZT (B&S M40/44)
(Superseded to 1758350YP)

$225.99

$

Usually ships in 2-12 days

0

0140

Ferris 94480

SCREW
(Superseded to 690341)

$5.99

$

In Stock, only 2 left!

0

0150

Ferris 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 13

0

0260

Ferris 44T977-0037-G1

ENGINE, 44T977-0037-G1

Note: (Refer to Note: *)

$

$

Currently unavailable

0270

Ferris 1726498

HOSE-OIL DRAIN .375ID 16.5L
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

0280

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0290

Ferris 5050831X25

Fuel Line, 25" Long (tank to filter)
(Superseded to 5050831X25SM)

$19.99

$

Usually ships in 2-12 days

0

0300

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 10

0

0320

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 1 left!

0

0340

Ferris 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

0350

Ferris 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

0360

Ferris 5025011X14SM

BOLT, 5/16-18 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0
