400S (5901775) - Ferris 400S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Rear Bumper Group Parts Diagram

400S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

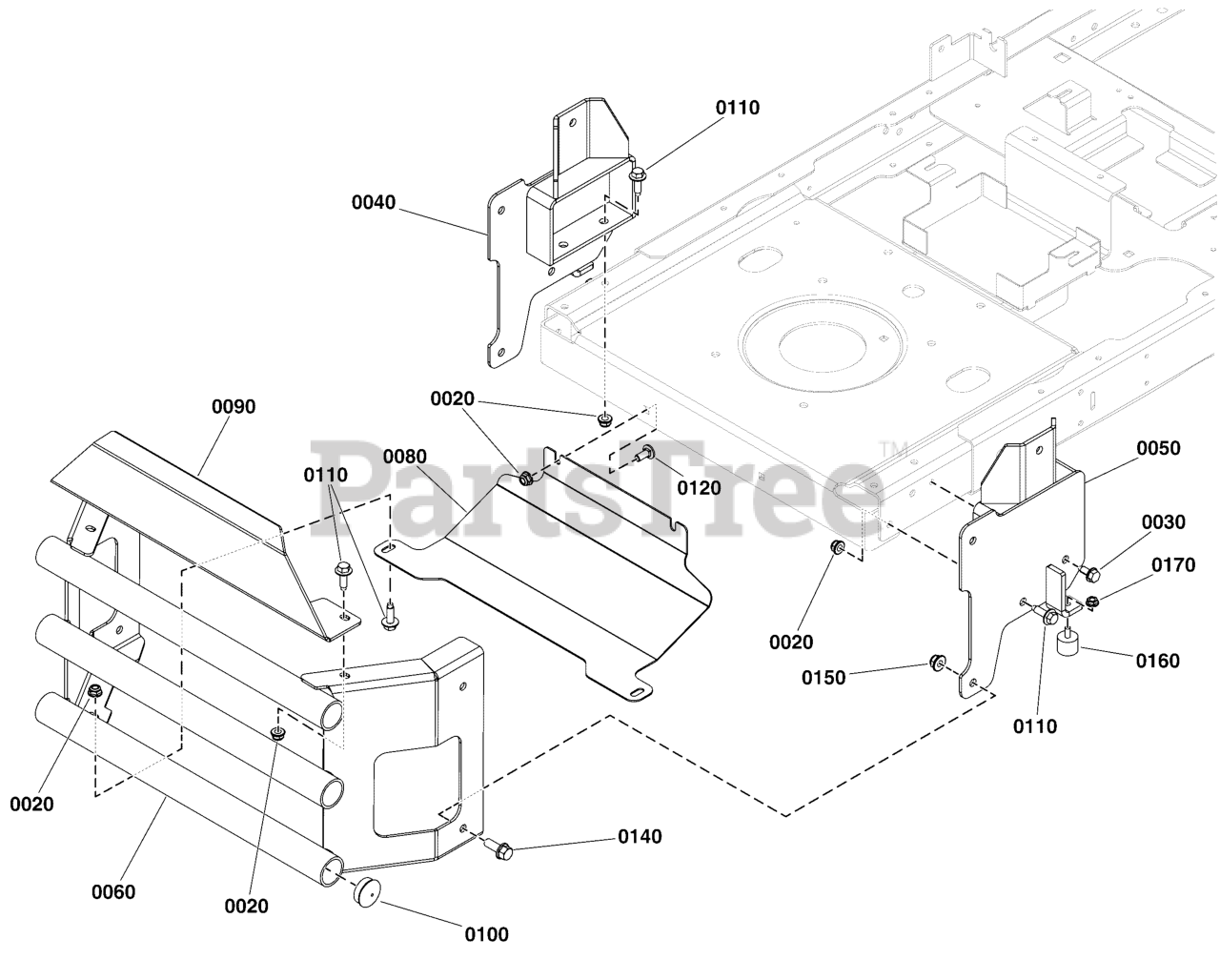

Rear Bumper Group Parts Diagram

  • Title

0020

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 1664847CA

SCREW-HEX WSHR HD TAPTT5/16-18X0.750

$

$

Currently unavailable

0040

Ferris 5416637B

WELD, REAR BUMPER MOUNT LH, FERRIS - RED
(Superseded to 5416637BFS)

$116.99

$

Usually ships in 2-12 days

0

0050

Ferris 5416636B

WELD, REAR BUMPER MOUNT RH, FERRIS - RED
(Superseded to 5416636BFS)

$116.99

$

Usually ships in 2-12 days

0

0060

Ferris 5416630B

WELD, SHORT REAR BUMPER, FR 3 TUBE - RED
(Superseded to 5416630BFS)

$360.99

$

Usually ships in 2-12 days

0

0080

Ferris 5416635B

PLATE, MUFFLER SHIELD - RED

$34.99

$

Usually ships in 2-12 days

0

0090

Ferris 5416726B

PLATE, CARB GUARD - RED
(Superseded to 5416726BFS)

$55.99

$

Usually ships in 2-12 days

0

0100

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

0110

BOLT,5/16-18X1.000,SRRTD FLANGE,GR5,ZC/C

$

$

Not available

0120

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0140

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0160

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

0170

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0
