40316x11B - Murray 40" Lawn Tractor (2000) Deck Assembly (part 1) Parts Diagram

40" Lawn Tractor

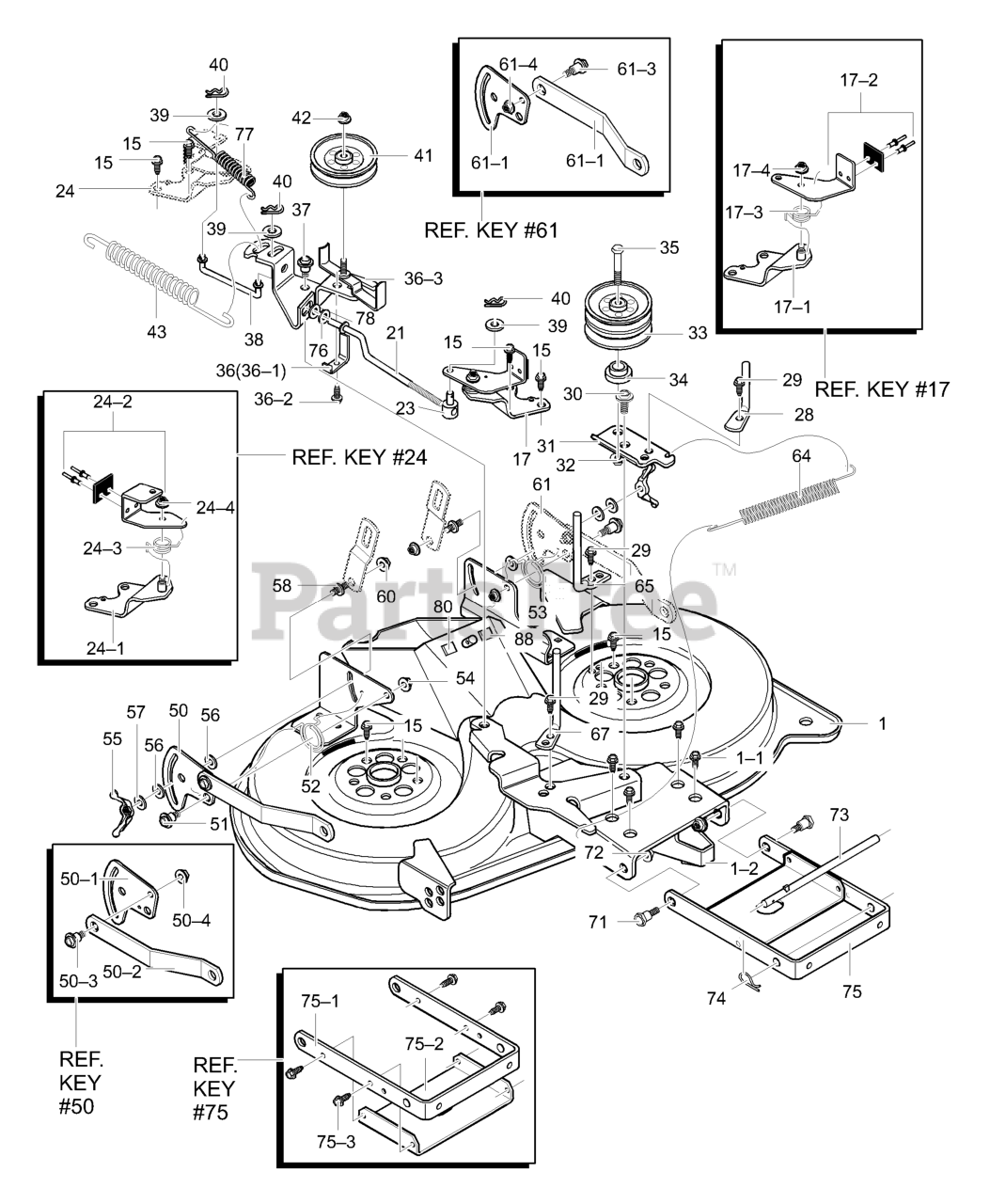

Deck Assembly (part 1) Parts Diagram

  • Title
1

Murray MU690109-853

Housing, 40" Deck

$

$

Currently unavailable

1-1

UNKNOWN

$

$

Not available

1-2

UNKNOWN

$

$

Not available

15

UNKNOWN

$

$

Not available

17

Murray MU94665-853

Brake Arm Assembly LH

$

$

Currently unavailable

17-1

Murray MU94293

Brake Support Assembly LH

$

$

Currently unavailable

17-2

Murray MU94291

Brake Arm

$

$

Currently unavailable

17-3

Murray MU710110

SPRING, Torsion

$

$

Currently unavailable

17-4

Murray MU710205

NUT, 5/16-18

$

$

Currently unavailable

21

Murray MU690021

Link, Brake LH

$

$

Currently unavailable

23

Murray MU711591

NUT, Adjusting

$

$

Currently unavailable

24

Murray MU94664-853

Brake Arm Assembly RH

$

$

Currently unavailable

24-1

Murray MU94294

Brake Support RH

$

$

Currently unavailable

24-2

Murray MU94292

Brake Arm RH

$

$

Currently unavailable

24-3

Murray MU710077

SPRING, Torsion

$

$

Currently unavailable

24-4

Murray MU710205

NUT, 5/16-18

$

$

Currently unavailable

28

Murray MU711912

BELT Guide

$

$

Currently unavailable

29

Murray MU780055

SCREW, 5/16-18 x 0.50

$

$

Currently unavailable

30

Murray MU711613

BOLT, Shoulder

$

$

Currently unavailable

31

Murray MU94261-853

Arm, Double Idler

$

$

Currently unavailable

32

Murray MU711622

NUT, 3/8-16

$

$

Currently unavailable

33

Murray MU94279

PULLEY, Idler Double Vee

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Murray MU711915

SCREW, 3/8-16 x 3.00

$

$

Currently unavailable

36

Murray MU94973-853

Idler Arm Assembly

$

$

Currently unavailable

36-1

Murray MU94312

SPRING - Belt Guide

$

$

Currently unavailable

36-2

Murray MU710264

SCREW, 1/4-20x.50

$

$

Currently unavailable

36-3

Murray MU94298

Idler Arm

$

$

Currently unavailable

37

Murray MU711613

BOLT, Shoulder

$

$

Currently unavailable

38

Murray MU690023

Link, Brake RH

$

$

Currently unavailable

39

Murray MU712480

WASHER, Flat

$

$

Currently unavailable

40

Murray MU711682

HAIR PIN

$

$

Currently unavailable

41

Murray MU690024

PULLEY, Idler

$

$

Currently unavailable

42

Murray MU711622

NUT, 3/8-16

$

$

Currently unavailable

43

Murray MU710234

SPRING, Extension

$

$

Currently unavailable

50

Murray MU690158-853

ASSEMBLY, Plate,Rear Sus Bkt RH

$

$

Currently unavailable

50-1

Murray MU94128

Plate-Suspension

$

$

Currently unavailable

50-2

Murray MU94055

Suspension Bracket Rear

$

$

Currently unavailable

50-3

Murray MU710095

BOLT, Shoulder

$

$

Currently unavailable

50-4

Murray MU710140

NUT, 3/8-16

$

$

Currently unavailable

51

Murray MU711611

BOLT, Shoulder

$

$

Currently unavailable

52

Murray MU710112

SPRING, Torsion RH

$

$

Currently unavailable

53

Murray MU710113

SPRING, Torsion LH

$

$

Currently unavailable

54

Murray MU711622

NUT, 3/8-16

$

$

Currently unavailable

55

Murray MU711600

Wingnut, 5/16-18

$

$

Currently unavailable

56

Murray MU94137

Pad, Friction

$

$

Currently unavailable

57

$

$

Currently unavailable

58

Murray MU711595

PIN, Hanger

$

$

Currently unavailable

60

Murray MU711622

NUT, 3/8-16

$

$

Currently unavailable

61

Murray MU690159-853

ASSEMBLY, Plate Rear Sus Brkt., LH

$

$

Currently unavailable

61-1

Murray MU94128

Plate-Suspension

$

$

Currently unavailable

61-2

Murray MU94055

Suspension Bracket, Rear

$

$

Currently unavailable

61-3

Murray MU710095

BOLT, Shoulder

$

$

Currently unavailable

61-4

Murray MU710140

NUT, 3/8-16

$

$

Currently unavailable

64

Murray MU710233

SPRING, Extension

$

$

Currently unavailable

65

Murray MU711913

BELT Guide

$

$

Currently unavailable

67

Murray MU690030

BELT Guide

$

$

Currently unavailable

71

Murray MU711611

BOLT, Shoulder

$

$

Currently unavailable

72

Murray MU711622

NUT, 3/8-16

$

$

Currently unavailable

73

Murray MU95295

ROD, Hanger

$

$

Currently unavailable

74

Murray MU711676

HAIR PIN

$

$

Currently unavailable

75

Murray MU690058-853

ASSEMBLY, Bracket & Stiffener

$

$

Currently unavailable

75-1

Murray MU94058

BRACKET, Front Suspension

$

$

Currently unavailable

75-2

Murray MU95057

Stiffener

$

$

Currently unavailable

75-3

Murray MU710079

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

76

Murray MU583409

FLATWASHER

$

$

Currently unavailable

77

Murray MU710658

SPRING, Extension

$

$

Currently unavailable

78

Murray MU712480

WASHER, Flat

$

$

Currently unavailable

80

Murray MU318197

Pad, Adhesive

$

$

Currently unavailable

88

UNKNOWN

$

$

Not available
