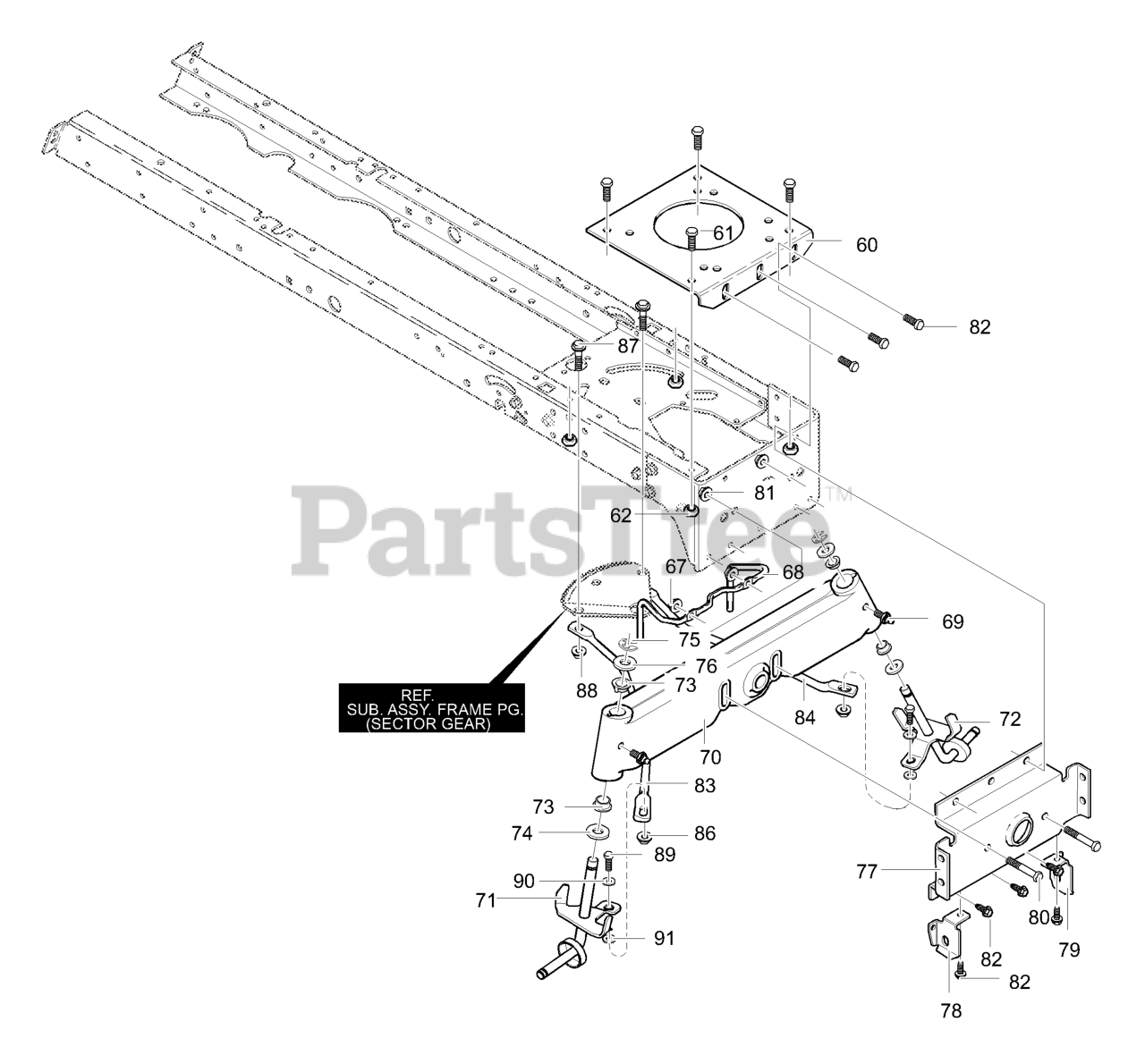

40316x11B - Murray 40" Lawn Tractor (2000) Frame Assembly (part 2) Parts Diagram

40" Lawn Tractor

Frame Assembly (part 2) Parts Diagram

  • Title
60

Murray MU94006

Engine Plate

$

$

Currently unavailable

61

Murray MU26X249

SCREW, .312-18x.75

$

$

Currently unavailable

62

Murray MU015X88

NUT, 5/16-18

$

$

Currently unavailable

67

Murray MU015X79

NUT, 5/16-18

$

$

Currently unavailable

68

Murray MU94310

GUIDE-Stack Pulley Belt

$

$

Currently unavailable

69

Murray MU706

Zerk, Grease

$

$

Currently unavailable

70

Murray MU95405

Axle, Cast Machined

$

$

Currently unavailable

71

Murray MU95182

Spindle, Long RH

$

$

Currently unavailable

72

Murray MU95183

Spindle, Long LH

$

$

Currently unavailable

73

Murray MU92527

BEARING, Spindle

$

$

Currently unavailable

74

Murray MU17X113

WASHER, .766IDx1.62ID

$

$

Currently unavailable

75

$

$

Currently unavailable

76

Murray MU17X195

WASHER, Flat

$

$

Currently unavailable

77

Murray MU94007

HANGER, Axle

$

$

Currently unavailable

78

Murray MU690199

HANGER, Deck RH

$

$

Currently unavailable

79

Murray MU690198

HANGER, Deck LH

$

$

Currently unavailable

80

Murray MU180113

SCREW, 5/16-18 x 3.00

$

$

Currently unavailable

81

Murray MU015X88

NUT, 5/16-18

$

$

Currently unavailable

82

Murray MU26X249

SCREW, .312-18x.75

$

$

Currently unavailable

83

Murray MU95328

Drag Link, RH

$

$

Currently unavailable

84

Murray MU95329

Drag Link, LH

$

$

Currently unavailable

86

Murray MU015X84

NUT, 3/8-16

$

$

Currently unavailable

87

Murray MU9X57

BOLT, Shoulder

$

$

Currently unavailable

88

Murray MU015X84

NUT, 3/8-16

$

$

Currently unavailable

89

Murray MU01X111

SCREW, 3/8-16 x 1.50

$

$

Currently unavailable

90

Murray MU17X104

FLATWASHER

$

$

Currently unavailable

91

Murray MU017X53

FLATWASHER

$

$

Currently unavailable
