40319x88A - Murray 40" Lawn Tractor (2000) Chassis & Hood Assembly Parts Diagram

40" Lawn Tractor

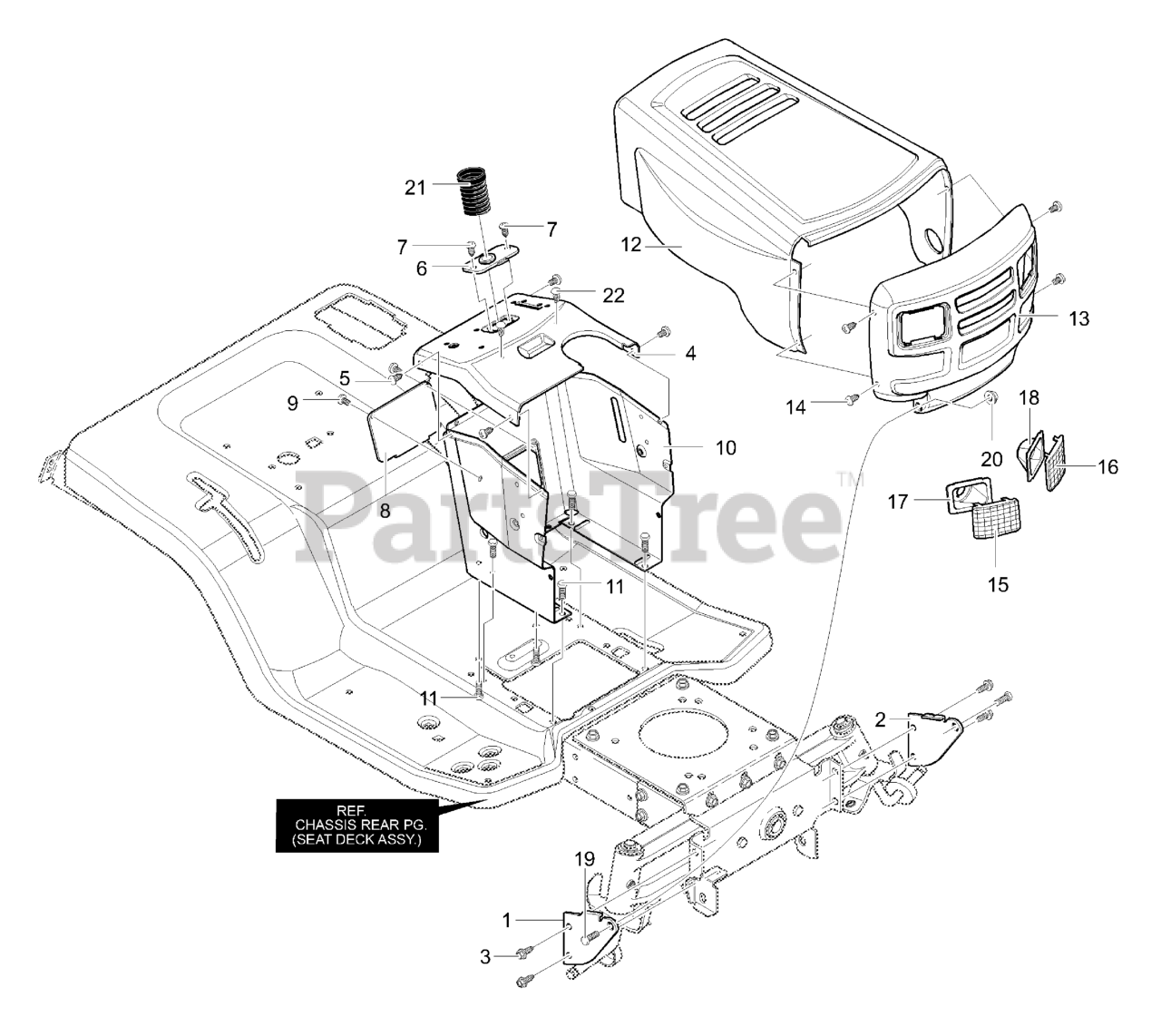

Chassis & Hood Assembly Parts Diagram

  • Title

1

Murray 94082-853

Support, Grille RH

$

$

Currently unavailable

2

Murray 94083-853

Support, Grille LH

$

$

Currently unavailable

3

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

4

Murray 94074-884

Dash

$

$

Currently unavailable

5

Murray 711629

Screw, 10-24x.500

$

$

Not available

6

Murray 094075

Steering Bracket

$

$

Currently unavailable

7

Murray 710197

Screw, 1/4-14x.50

$12.99

$

Usually ships in 2-12 days

0

8

Murray 95366-848

Accesss Panel

$

$

Currently unavailable

9

Murray 711629

Screw, 10-24x.500

$

$

Not available

10

Murray 95318-848

Dash Support

$

$

Currently unavailable

11

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

12

Murray 690608-848

Hood

$

$

Currently unavailable

13

Murray 94079-848

Grille

$

$

Currently unavailable

14

Murray 711629

Screw, 10-24x.500

$

$

Not available

15

Murray 094080MA

Lens, RH

$9.49

$

In Stock, only 1 left!

0

16

Murray 094081MA

Lens, LH

$8.99

$

Usually ships in 2-12 days

0

17

Murray 094807

Reflector, Headlight

$26.99

$

Usually ships in 2-12 days

0

18

Murray 094807

Reflector, Headlight

$26.99

$

Usually ships in 2-12 days

0

19

Murray 711611

Bolt, Shoulder

$1.49

$

Usually ships in 2-12 days

0

20

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

21

Murray 092059MA

Bellows, Steering Post

$9.49

$

Usually ships in 2-12 days

0

22

Murray 094744

Bumper

$9.49

$

Usually ships in 2-12 days

0

--

Murray F-000805J

Instruction Book & Parts List

$

$

Currently unavailable
