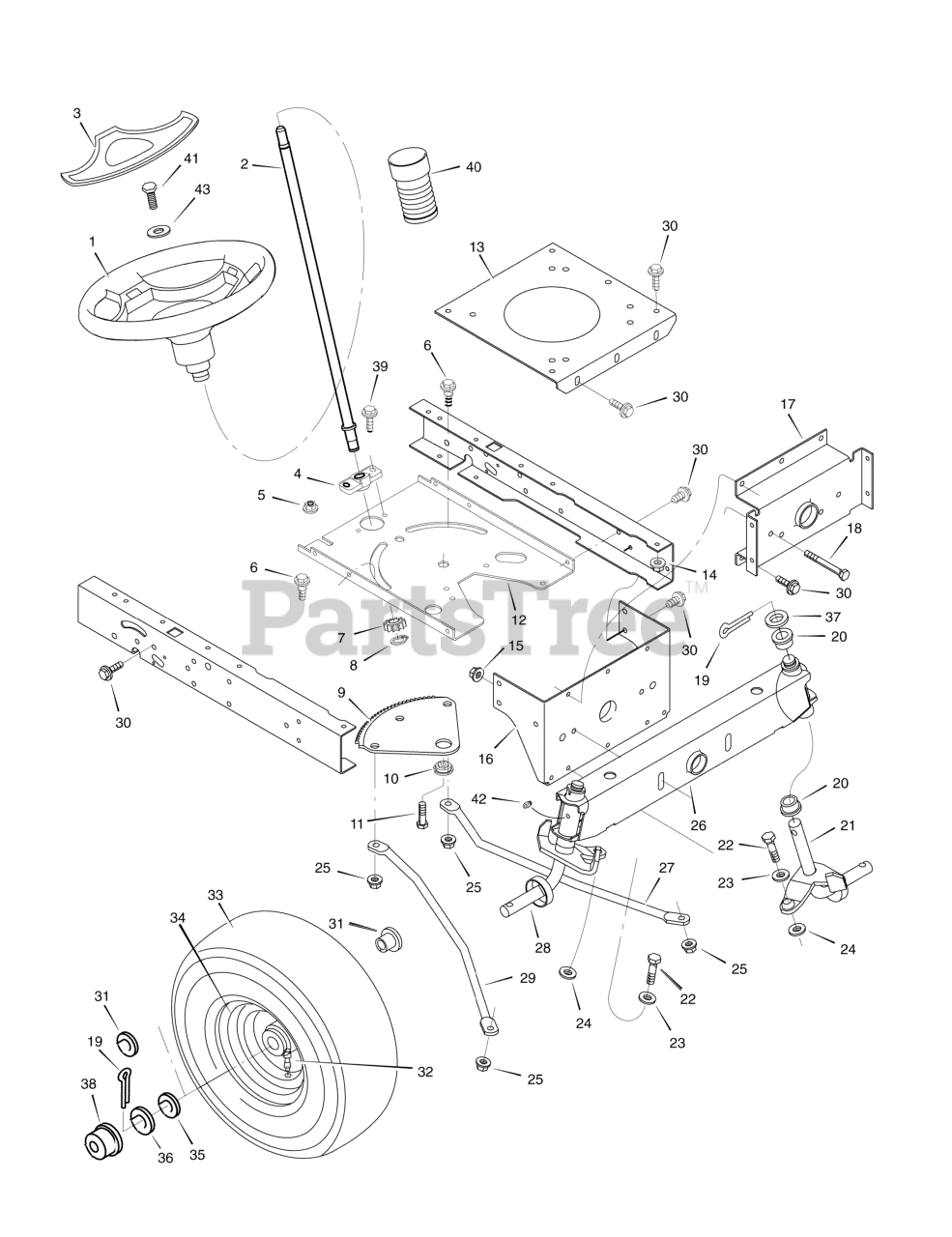

405628x51 (7800281) - Murray 40" Lawn Tractor (2008) Steering Parts Diagram

40" Lawn Tractor

Steering Parts Diagram

  • Title

1

Murray 1001980MA

Wheel, Steering 4 Spoke

$87.99

$

Usually ships in 2-12 days

0

2

Murray 690625MA

Post, Steering

$

$

Not available

3

Murray 1001982MA

Cover, Steering Wheel

$24.99

$

In Stock, only 1 left!

0

4

Murray 094124MA

Bearing

Note: (Included with Ref. No. 2)

$14.99

$

In Stock, only 1 left!

0

5

Murray 15X111MA

Nut, Flange **

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

Bolt, Shoulder

$9.99

$

In Stock, Qty 12

0

7

Murray 1001893MA

GEAR, Pinion **
(Superseded to 690183MA)

$

$

Not available

8

Murray 011X25MA

Ring, Snap **

$4.49

$

In Stock, Qty 6

0

9

Murray 094121MA

Gear, Sector

$

$

Not available

10

Murray 094123MA

Bearing

$12.99

$

In Stock, only 2 left!

0

11

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

12

Murray 7300867TYP

Plate, Steering

$52.99

$

Usually ships in 2-12 days

0

13

Murray 7300863TYP

Plate, Engine

$35.99

$

Usually ships in 2-12 days

0

14

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

15

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 7300751TYP

Bracket, Hanger

$53.99

$

Usually ships in 2-12 days

0

17

Murray 7300742TYP

Axle, Hanger

$38.99

$

Usually ships in 2-12 days

0

18

Murray 01X146MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

20

Murray 690150MA

Bearing

$8.99

$

In Stock, only 2 left!

0

21

Murray 7400232TYP

Spindle Assembly, Left
(Superseded to 7400232ZMA)

$204.99

$

In Stock, only 1 left!

0

22

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

23

Murray 710083MA

Washer

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

25

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, only 4 left!

0

26

Murray 1001460E701MA

Axle Assembly

$108.99

$

Usually ships in 2-12 days

0

27

Murray 095329E701MA

Drag Link, Left

$20.99

$

Usually ships in 2-12 days

0

28

Murray 7400231TYP

Spindle Assembly, Right
(Superseded to 7400231ZMA)

$165.99

$

Usually ships in 2-12 days

0

29

Murray 095328E701MA

Drag Link, Right

$

$

Not available

30

Murray 26X249MA

Screw

$

$

Not available

31

Murray 091334MA

Bearing, Wheel

$6.99

$

Usually ships in 2-12 days

0

32

Murray 024373MA

Stem, Valve

$

$

Not available

33

Murray 091912MA

Tire *

$91.99

$

Usually ships in 2-12 days

0

34

Murray 407924MA

Tube

$

$

Not available

34

Murray 7101798MA

Wheel and Tire Assembly

$

$

Not available

35

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

36

Murray 17X192MA

Washer

$4.99

$

In Stock, Qty 5

0

37

Murray 17X113MA

Washer

$3.99

$

In Stock, only 2 left!

0

38

Murray 094618MA

Hub Cap

$5.99

$

In Stock, Qty 20+

0

39

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

40

Murray 092059MA

Bellows

$9.49

$

Usually ships in 2-12 days

0

41

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

42

Murray 092530MA

Fitting, Lube

$5.49

$

Usually ships in 2-12 days

0

43

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0
