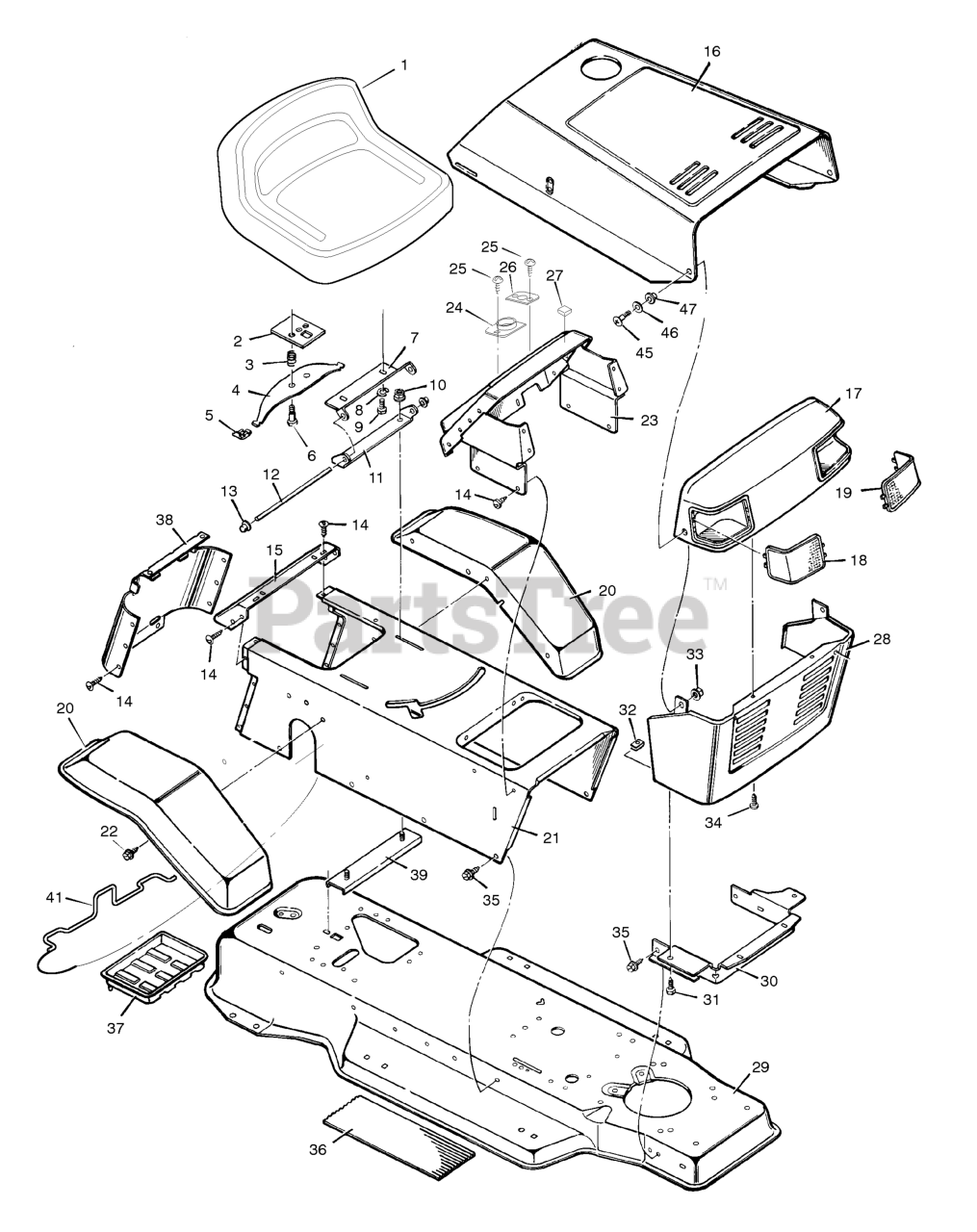

40614B - Murray 40" Lawn Tractor (1996) Chassis & Hood Parts Diagram

40" Lawn Tractor

Chassis & Hood Parts Diagram

  • Title

1

Murray 092387MA

Seat

$329.99

$

Usually ships in 2-12 days

0

2

Murray 091963 Z

Plate Assembly, Switch

$

$

Currently unavailable

3

Murray 164X26MA

Spring, Compression

$3.49

$

In Stock, only 2 left!

0

4

Murray 091964MA

Spring, Seat

$

$

Not available

5

Murray 091822MA

Glide, Spring

$8.49

$

Usually ships in 2-12 days

0

6

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

7

Murray 92334E701

Support, Seat

$76.99

$

Usually ships in 2-12 days

0

8

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Murray 091729E701

Bracket, Pivot

$

$

Currently unavailable

12

Murray 91730E701

Rod, Pivot

$

$

Currently unavailable

13

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

14

Murray 26X270

Screw, Tap
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

15

Murray 91724E701

Fender, Apron

Note: (Included with Ref. No. 21)

$

$

Currently unavailable

16

Murray 091852F200

Hood

$

$

Currently unavailable

17

Murray 091736MA

Grille, Upper

$

$

Not available

18

Murray 091734MA

Lens, Right

$44.99

$

Usually ships in 2-12 days

0

19

Murray 091735

Lens, Left

$

$

Not available

20

Murray 92328F200

Fender

$41.99

$

Usually ships in 2-12 days

0

21

Murray 092727F200

Console Assembly

$

$

Currently unavailable

22

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

23

Murray 93174F200

Dash Panel

$

$

Currently unavailable

24

Murray 093135MA

Bearing, Steering

$2.49

$

Usually ships in 2-12 days

0

25

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

26

Murray 093155

Bearing

$

$

Currently unavailable

27

Murray 092444

Bumper

$

$

Currently unavailable

28

Murray 091722F200

Grill, Lower

$

$

Currently unavailable

29

Murray 092815F200

Frame Assembly

$

$

Currently unavailable

30

Murray 91723E701

Support, Grill

$

$

Currently unavailable

31

Murray 26X252MA

Screw

$3.99

$

Usually ships in 2-12 days

0

32

Murray 028X57

U-Nut

$4.99

$

Usually ships in 2-12 days

0

33

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

34

Murray 0193X1MA

Fastener, Plastic

$3.99

$

In Stock, only 1 left!

0

35

Murray 26X249MA

Screw

$

$

Not available

36

Murray 092468

Mat

$

$

Currently unavailable

37

Murray 091895MA

Tray, Battery

$

$

Not available

38

Murray 92443E701

Cap, Console

Note: (Included with Ref. No. 21)

$

$

Currently unavailable

39

Murray 091857E701

Channel Assembly

$

$

Currently unavailable

41

Murray 92725E701

Clamp, Battery

$

$

Currently unavailable

45

Murray 009X36MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

46

Murray 091751

Washer, Rubber

$

$

Currently unavailable

47

Murray 091733

Eyelet

$

$

Currently unavailable

--

Murray F-96700

Instruction Book

$

$

Currently unavailable

--

Murray F-96803

Repair Parts Book

$

$

Currently unavailable

--

Murray 44X3639

Decal, Left Hood

$

$

Currently unavailable

--

Murray 44X3640

Decal, Right Hood

$

$

Currently unavailable

--

Murray 44X2585

Decal, Top Console - Warning

$1.99

$

Usually ships in 2-12 days

0
