41050-02 - Troy-Bilt Pressure Washer (SN: 4105002100101 - 4105002999999) MAIN ASSEMBLY Parts Diagram

Pressure Washer

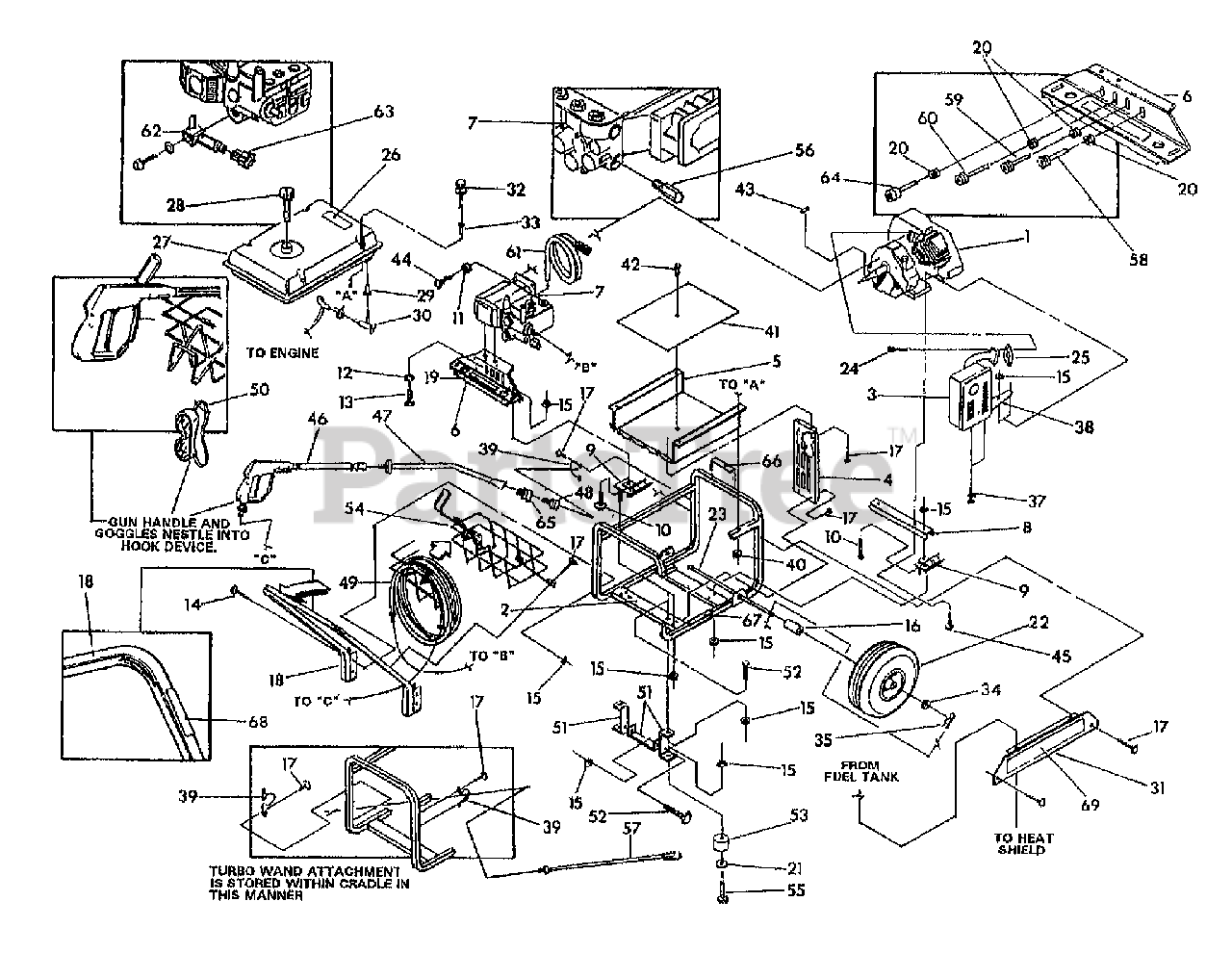

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1903442

ENGINE-BLOCK GN190

$

$

Currently unavailable

2

MTD 1903211

CRADLE-XL (4000W GEN)

$

$

Not available

3

MTD 1902462

MUFFLER

$

$

Not available

4

Troy-Bilt 1903547

HEATSHIELD-MUFFLER

$

$

Currently unavailable

5

Troy-Bilt 1902431

SHIELD-HEAT TANK (PRES.WASHR)

$

$

Currently unavailable

6

Troy-Bilt 1903548

BRKT-PUMP MOUNT

$

$

Currently unavailable

7

Troy-Bilt 1902433

PUMP-XTV 2200 SERIES (TB PRS W

$

$

Currently unavailable

8

MTD 1902434

SUPPORT-ENGINE

$

$

Not available

9

MTD 1902464

MOUNT-VIBRATION 45 DEG.

$

$

Not available

10

MTD 1902465

SCR M8-1.25X20MM

$

$

Not available

11

Troy-Bilt 1903549

WASHER-CONICAL 5/16

$

$

Currently unavailable

12

MTD 1902467

WASHER-LK M8

$

$

Not available

13

MTD 1902468

SCR-CAP M8-1.25X16MM

$

$

Not available

14

MTD 1902469

SCR-CAP M8-1.25X45MM

$

$

Not available

15

MTD 1902470

NUT-HF/LK M8-1.25

$

$

Not available

16

MTD 1902471

SPACER-WHEEL (PRS WSHR)

$

$

Not available

17

MTD 1902472

SCR-CAP M10-16 SELF DRILL

$

$

Not available

18

Troy-Bilt 1903264

HANDLE (6000W GENERATOR)

$

$

Currently unavailable

19

MTD 1902755

DECAL-NOZZLE (PRS WSHR)

$

$

Not available

20

Troy-Bilt 1902436

GROMMET-NOZZLE (PRS WSHR)

$

$

Currently unavailable

21

MTD 1902474

WASHER-M8 VIBRATION MOUNT

$

$

Not available

22

Troy-Bilt 1902437

ASSM-WHEEL (PRES.WSHR)

$

$

Currently unavailable

23

Troy-Bilt 1903259

AXLE (4000W GENERATOR)

$

$

Currently unavailable

24

MTD 1902476

SCR-SKT HD M8-1.25X20 LONG (GE

$

$

Not available

25

MTD 1902477

GASKET-EXHAUST

$

$

Not available

26

MTD 1903444

DECAL-DANGER

$

$

Not available

27

Troy-Bilt 1902438

TANK-FUEL

$

$

Currently unavailable

28

Troy-Bilt 1902439

GAUGE-FUEL

$

$

Currently unavailable

29

Troy-Bilt 1902479

BUSHING-PLASTIC TANK (PRS WSHR

$

$

Currently unavailable

30

Troy-Bilt 1902440

VALVE-FUEL TANK (PRES.WSHR)

$

$

Currently unavailable

31

MTD 1902644

PANEL-SIDE DECAL

$

$

Not available

32

MTD 1903200

SCR-HH M6-1.00X60MM LONG (GEN)

$

$

Not available

33

MTD 1902482

GROMMET-TANK

$

$

Not available

34

MTD 1903263

WASHER-WHEEL (GENERATOR)

$

$

Not available

35

MTD 1903260

PIN-RETAINING

$

$

Not available

37

MTD 1902558

SCR M6-1.0X12MM W/LK WSHR

$

$

Not available

38

MTD 1902441

BRACKET-MUFFLER

$

$

Not available

39

MTD 1902442

HOLDER-REAR GUN

$

$

Not available

40

MTD 1902487

NUT-HF/LK M6 FLANGE

$

$

Not available

41

Troy-Bilt 1902488

INSULATION-1/4" THICK #2

$

$

Currently unavailable

42

MTD 1902489

CLIP-INSULATION

$

$

Not available

43

MTD 1902490

KEY-.188 SQ X .25

$

$

Not available

44

Troy-Bilt 1903550

SCR-HH 5/16-24X.75

$

$

Currently unavailable

45

MTD 1902492

SCR-PHP M8X35MM

$

$

Not available

46

MTD 1902443

GUN-MASTER CONTRACTOR

$

$

Not available

47

Troy-Bilt 1902444

EXTENSION-WAND M.C.

$

$

Currently unavailable

48

Troy-Bilt 1902445

NOZZLE-CHEMICAL INJECTOR

$

$

Currently unavailable

49

MTD 1902446

ASSM-HOSE 3/8" ID (50FT)

$

$

Not available

50

Troy-Bilt 5003

GOGGLES
(Superseded to 723-0400)

$26.99

$

Usually ships in 3-6 days

0

51

MTD 1903551

BRKT-UNIT SUPPORT

$

$

Not available

52

MTD 1903552

SCR-HH M8-1.25X20 MM

$

$

Not available

53

MTD 1902494

MOUNT-VIBRATION

$

$

Not available

54

MTD 1902448

BASKET-WIRE (PRES.WASHER)

$

$

Not available

55

MTD 1902495

SCR-HH M8-1.25X30MM

$

$

Not available

56

Troy-Bilt 1902496

VALVE-THERMAL RELIEF (PRS WSHR

$

$

Currently unavailable

57

Troy-Bilt 1902449

UD ASSM-TURBO WAND

$

$

Currently unavailable

58

MTD 1902450

NOZZLE-QUICK CON 00045 RED

$

$

Not available

59

MTD 1902451

NOZZLE-QUICK CON 15045 YELLOW

$

$

Not available

60

MTD 1902452

NOZZLE-QUICK CON 25045 GREEN

$

$

Not available

61

Troy-Bilt 1902454

ASSM-FILTER&INJECTOR TUBE

$

$

Currently unavailable

62

Troy-Bilt 1902457

NECK-ALUMINUM PUMP (PRS WSHR)

$

$

Currently unavailable

63

Troy-Bilt 1902455

CONNECTOR-(BRASS) GARDEN HOSE

$

$

Currently unavailable

64

MTD 1902453

NOZZLE-QUICK CON 40045 WHITE

$

$

Not available

65

Troy-Bilt 1902456

ADAPTOR-QUICK CONNECT (PRS WSH

$

$

Currently unavailable

66

Troy-Bilt 1902647

DECAL-PLACE HAND HERE

$

$

Currently unavailable

67

MTD 1902648

DECAL-WARNING HOT SURFACE

$

$

Not available

68

MTD 1902649

DECAL-CAUTION SPRAYGUN (PRS WS

$

$

Not available

69

Troy-Bilt 1903553

DECAL-LOGO T/B PRS WASHER

$

$

Currently unavailable

MTD 1902646

TAG-HANG OPER INST(PRS WSHR)

$

$

Not available

Troy-Bilt 41550

BRUSH-ROTATING TB PRESS WASHER

$

$

Currently unavailable

Troy-Bilt 41551

BRUSH-MULTI PUR TB PRESS WASHER

$

$

Currently unavailable

Troy-Bilt 1902425

KIT-ENGINE SERVICE

$

$

Currently unavailable

Troy-Bilt 1902426

KIT-4GAL CLEAN/WAX SAMP MI

$

$

Currently unavailable

Troy-Bilt 1902428

CLEANER-VEHICLE 4 GALLONS

$

$

Currently unavailable

Troy-Bilt 1902427

CLEANER-4 GAL MULTI PURPOSE

$

$

Currently unavailable

Troy-Bilt 1902429

WAX-VEHICLE 4 GALLONS

$

$

Currently unavailable
