41158 - Gravely 42" Tiller for 7173H Tractor TILLER FRAME Parts Diagram

42" Tiller for 7173H Tractor

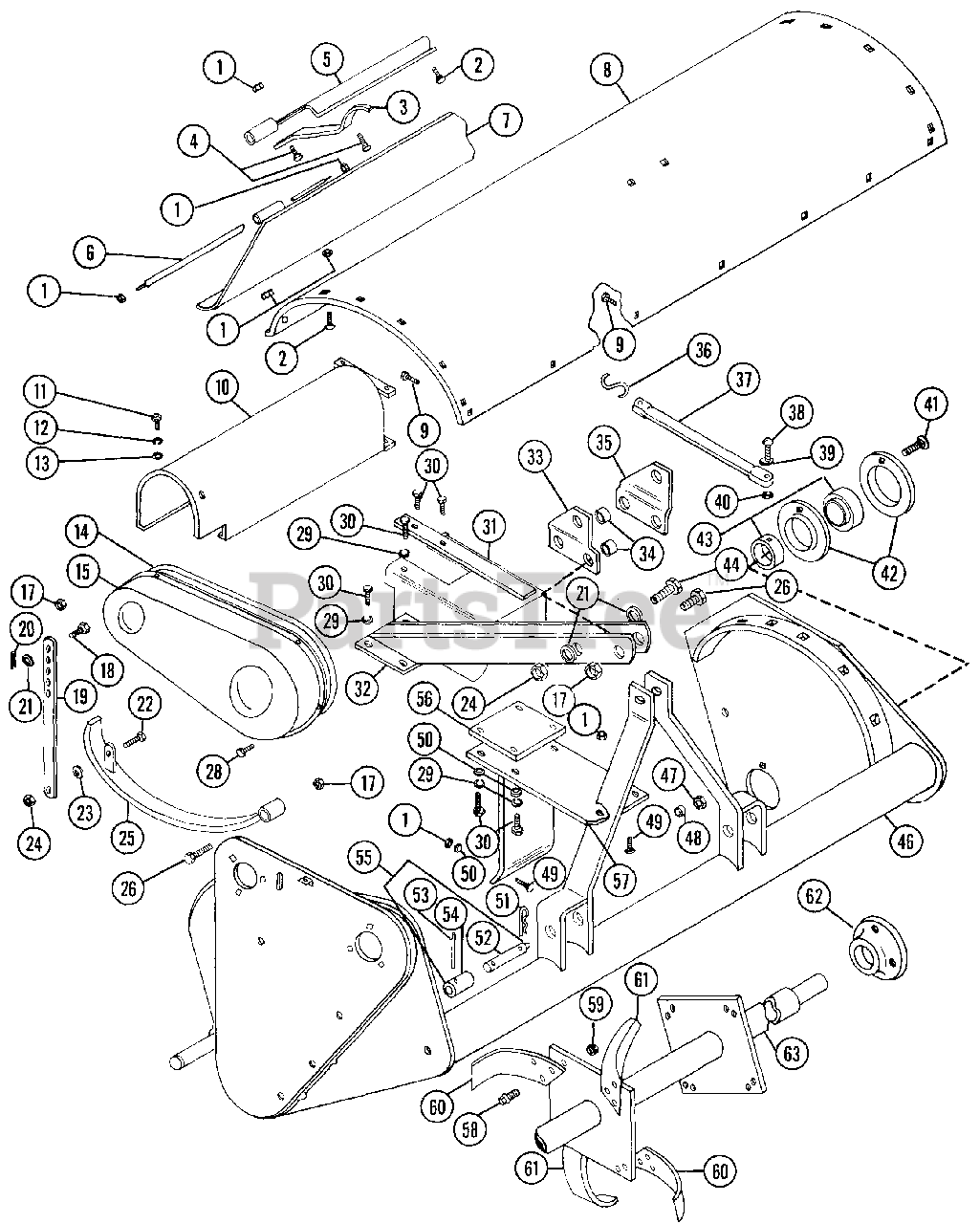

TILLER FRAME Parts Diagram

  • Title

1

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 041395

STRAP, LEVEL BLADE SUPPORT
(Superseded to 20692700)

$

$

Not available

4

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

5

Gravely 041396

BRACKET, HINGE ASSEMBLY
(Superseded to 20692800)

$

$

Not available

6

Gravely 041397

ROD, HINGE
(Superseded to 20692900)

$

$

Not available

7

Gravely 041398

BLADE, LEVEL ASSEMBLY
(Superseded to 20693000)

$

$

Not available

8

Gravely 041399

SHROUD, 42"
(Superseded to 20693100)

$

$

Not available

9

Gravely 041400

SCREW, SELF-TAPPING 5/16-24X.75
(Superseded to 20693200)

$

$

Not available

10

Gravely 041401

SHIELD, TUNNEL ASSEMBLY
(Superseded to 20693300)

$

$

Not available

11

Gravely 180073

BOLT, HEX 5/16-18X.50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

12

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

14

Gravely 041402

SEAL
(Superseded to 20693400)

$

$

Not available

15

Gravely 041403

SHIELD
(Superseded to 20693500)

$

$

Not available

17

Gravely 124589

NUT, HEX 5/8-11
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 041404

BOLT, HEX SPECIAL
(Superseded to 20693600)

$

$

Not available

19

Gravely 041405

STRAP, ADJUST
(Superseded to 20693700)

$

$

Not available

20

Gravely 014412

PIN, HAIR COTTER
(Superseded to 20160800)

$

$

Not available

21

Gravely 103343

WASHER, FLAT .531X1.063X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 041406

WASHER, RUBBER .531X1.375X.375
(Superseded to 20693800)

$

$

Not available

24

Gravely 416464

NUT, LOCK 1/2-13
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 041407

SKID ASSEMBLY
(Superseded to 20693900)

$45.99

$

Usually ships in 4-12 days

0

26

Gravely 041408

BOLT, HEX 5/8-11X2.50

$

$

Not available

28

Gravely 041409

SCREW, SELF-TAPPING 5/16X.50
(Superseded to 20694000)

$

$

Not available

29

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

30

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

31

Gravely 039896

SHIELD, PTO
(Superseded to 03318900)

$

$

Not available

32

Gravely 041410

LINK, UPPER ASSEMBLY
(Superseded to 20694100)

$

$

Not available

33

Gravely 041411

BRACKET, R.H.
(Superseded to 20694200)

$

$

Not available

34

Gravely 041412

SPACER, MAST EXT.
(Superseded to 20694300)

$

$

Not available

35

Gravely 041413

BRACKET, L.H.
(Superseded to 20694400)

$

$

Not available

36

Gravely 041414

S-HOOK
(Superseded to 20694500)

$

$

Not available

37

Gravely 041415

LOCK, RUBBER STRAP
(Superseded to 20694600)

$

$

Not available

38

Gravely 133781

SCREW, MACHINE 1/4-20X1.25
(Superseded to 06112800)

$

$

Not available

39

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

40

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

41

Gravely 041416

BOLT, 1/2-13X1.75 RD HD SQ NK GR. 5
(Superseded to 20694700)

$

$

Not available

42

Gravely 041417

FLANGETTE, 4-HOLE
(Superseded to 20694800)

$

$

Not available

43

Gravely 041418

BEARING, 1.500 W/LOCK COLLAR
(Superseded to 20694900)

$

$

Not available

44

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

46

Gravely 041419

FRAME ASSEMBLY
(Superseded to 20695000)

$

$

Not available

47

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

48

Gravely 041420

SPACER, IDLER
(Superseded to 20695100)

$

$

Not available

49

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

50

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

51

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

52

Gravely 041421

PIN, LINK
(Superseded to 20695200)

$

$

Not available

53

Gravely 041422

PIN, ROLL .25X3.00

$

$

Not available

54

Gravely 041423

SPACER, PIN
(Superseded to 20695300)

$

$

Not available

55

Gravely 041424

PIN ASSEMBLY, LOWER LINK
(Superseded to 20695400)

$

$

Not available

56

Gravely 041425

PLATE, UPPER LINK
(Superseded to 20695500)

$

$

Not available

57

Gravely 041426

MOUNT ASSEMBLY, GEAR BOX
(Superseded to 20695600)

$

$

Not available

58

Gravely 041427

BOLT, HEX 3/8-16X1.125 GR. 9
(Superseded to 20695700)

$

$

Not available

59

Gravely 041428

NUT, HEX 3/8-16 SPECIAL
(Superseded to 20695800)

$

$

Not available

60

Gravely 041429

TINE, R.H.
(Superseded to 03319200)

$32.99

$

Usually ships in 4-12 days

0

61

Gravely 041430

TINE, L.H.
(Superseded to 03319300)

$32.99

$

Usually ships in 4-12 days

0

62

Gravely 041431

CAP, BEARING
(Superseded to 20696100)

$

$

Not available

63

Gravely 041432

SHAFT, ROTOR ASSEMBLY
(Superseded to 20696200)

$

$

Not available

NS

Gravely 019479

DECAL, CAUTION
(Superseded to 05200700)

$

$

Not available

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$11.99

$

Usually ships in 4-12 days

0
