415BPB (86367) - Snapper Blower 415BPB Main Body & Frame Parts Diagram

Blower

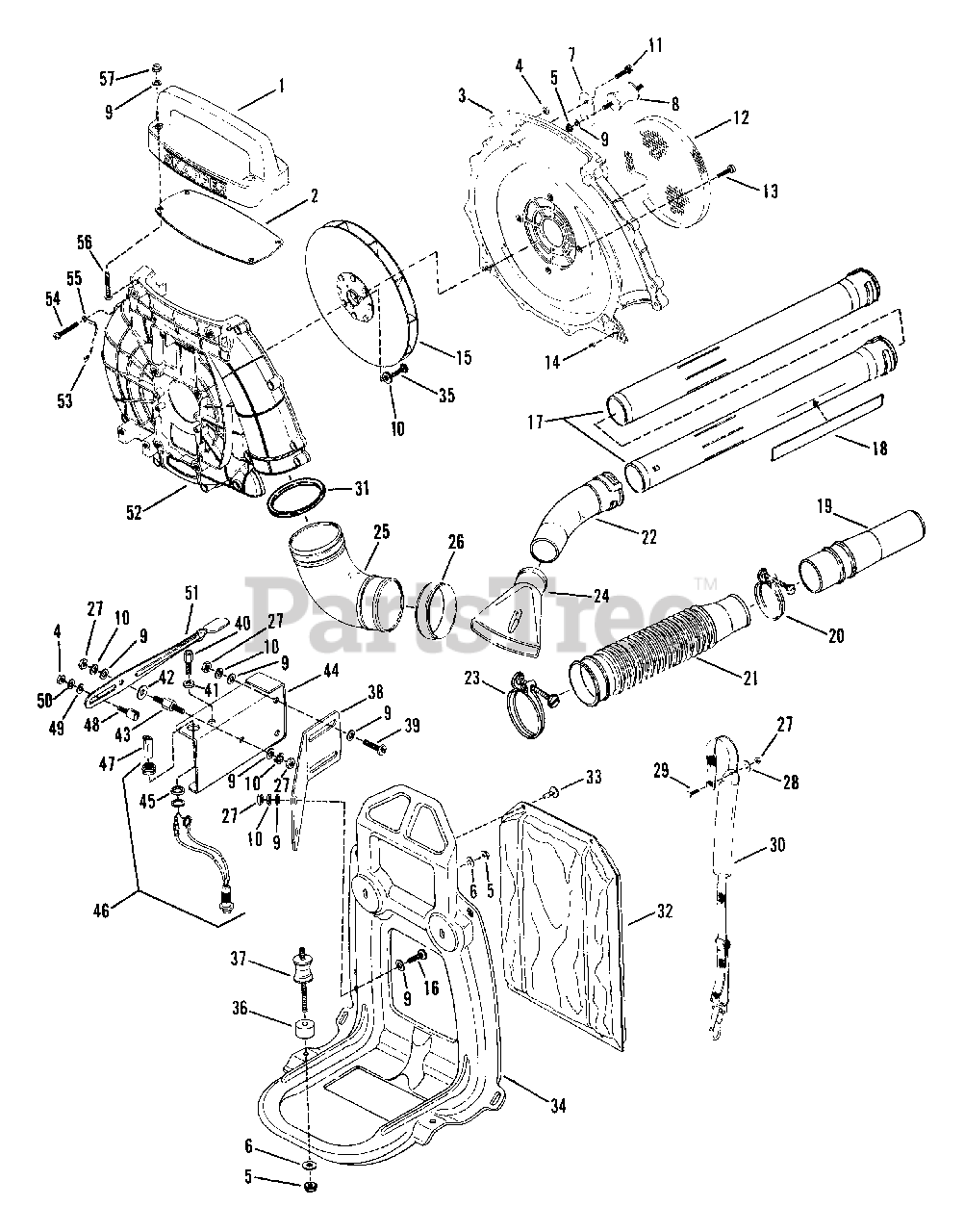

415BPB Main Body & Frame Parts Diagram

  • Title

1

Snapper 7045025

HANDLE

$

$

Currently unavailable

2

Snapper 7045024

GASKET, Handle

$

$

Currently unavailable

3

Snapper 7045018

FANCASE, "A"

$

$

Currently unavailable

4

Snapper 7045038

NUT, M5

$

$

Currently unavailable

5

Snapper 7045009

NUT, M6(Flange Lock)
(Superseded to 7045009SM)

$

$

Not available

6

Snapper 7045004

WASHER, Flat, M6 (Special 6.5 I.D.x 18mm O.D.)

$

$

Currently unavailable

7

Snapper 7045011

BRACKET, Isolator Mount

$

$

Currently unavailable

8

Snapper 7045010

VIBRATION ISOLATOR MOUNT

$

$

Not available

9

Snapper 7045012

WASHER, M6 (Std. Flat)

$

$

Currently unavailable

10

Snapper 7045005

LOCKWASHER, M6

$

$

Currently unavailable

11

Snapper 45013

BOLT, M6 x 25mm, with F.W. & L.W.

$

$

Currently unavailable

12

Snapper 45061

SCREEN, Mesh

$

$

Currently unavailable

13

Snapper 7045062

SCREW, M6 x 15mm, P.P.H. Sems F.W.

$

$

Currently unavailable

14

Snapper 7045019

NUT, M6 (Special)

$

$

Currently unavailable

15

Snapper 7045017

FAN

$

$

Currently unavailable

16

Snapper 7045006

SCREW, M6 x 16mm Phillips

$

$

Currently unavailable

17

Snapper 7018814

PIPE, Straight
(Superseded to 7018814YP)

$22.99

$

Usually ships in 2-12 days

0

18

Snapper 7043069

DECAL, Snapper

$

$

Currently unavailable

19

Snapper 7045054

PIPE, Swivel

$

$

Currently unavailable

20

Snapper 7045057

CLAMP, Wire, #78

$

$

Currently unavailable

21

Snapper 7045055

PIPE, Flexible

$

$

Currently unavailable

22

Snapper 7045052

PIPE, Curved

$

$

Currently unavailable

23

Snapper 7045056

CLAMP, Wire, #92

$

$

Currently unavailable

24

Snapper 7045051

BLOW HEAD, Fan Shaped

$

$

Currently unavailable

25

Snapper 7045028

PIPE, Curved

Note: (Includes item 31)

$

$

Currently unavailable

26

Snapper 7045029

SLEEVE, Rubber

$

$

Not available

27

Snapper 7045041

NUT, M6 (Std.)

$

$

Not available

28

Snapper 7045048

WASHER, Coned (Special)

$

$

Not available

29

Snapper 7045047

BOLT, M6, Slotted (Special)

$

$

Not available

30

Snapper 7019016

SHOULDER STRAP

$

$

Not available

31

Snapper 7045065

0-RING

$

$

Currently unavailable

32

Snapper 7045014

PAD, Cushion

$

$

Currently unavailable

33

Snapper 7045015

FASTENER (Plastic)

$

$

Currently unavailable

34

Snapper 7045002

FRAME

$

$

Currently unavailable

35

Snapper 7045060

HEX BOLT, M6 x 16mm

$

$

Currently unavailable

36

Snapper 7045007

SPACER (2)

$

$

Currently unavailable

37

Snapper 7045008

VIBRATION ISOLATOR MOUNT

$

$

Not available

38

Snapper 7045042

BRACKET

$

$

Currently unavailable

39

Snapper 7045043

SCREW, M6 x 12mm P.P.H.

$

$

Currently unavailable

40

Snapper 45033

RECEIVER, Cable

$

$

Currently unavailable

41

Snapper 7045032

NUT, M6 (Special)

$

$

Currently unavailable

42

Snapper 7045040

WASHER, M6 (Special)

$

$

Currently unavailable

43

Snapper 7045039

STUD, M6

$

$

Currently unavailable

44

Snapper 7045031

PLATE, Throttle Support

$

$

Currently unavailable

45

Snapper 45045

WASHER (8mm I.D.x 15mm O.D. Special)

$

$

Currently unavailable

46

Snapper 7045044

SWITCH, Stop

Note: (Includes item 45)

$

$

Not available

47

Snapper 7045050

CAP

$

$

Currently unavailable

48

Snapper 7045035

RECEIVER-STUD, Wire

$

$

Currently unavailable

49

Snapper 7045036

WASHER, M5

$

$

Currently unavailable

50

Snapper 7045037

LOCKWASHER, M5

$

$

Currently unavailable

51

Snapper 7045034

LEVER, Throttle

$

$

Not available

52

Snapper 7045016

FANCASE, "B"

$

$

Currently unavailable

53

Snapper 45064

SLEEVE, Plastic

$

$

Currently unavailable

54

Snapper 7045021

SCREW, M5 x 35mm FW, P.P.H.

$

$

Currently unavailable

55

Snapper 7045063

CLIP, Cable

$

$

Currently unavailable

56

Snapper 7045026

HEX BOLT, M6

$

$

Currently unavailable

57

Snapper 7045027

NUT, M6 (Acorn style)

$

$

Currently unavailable
