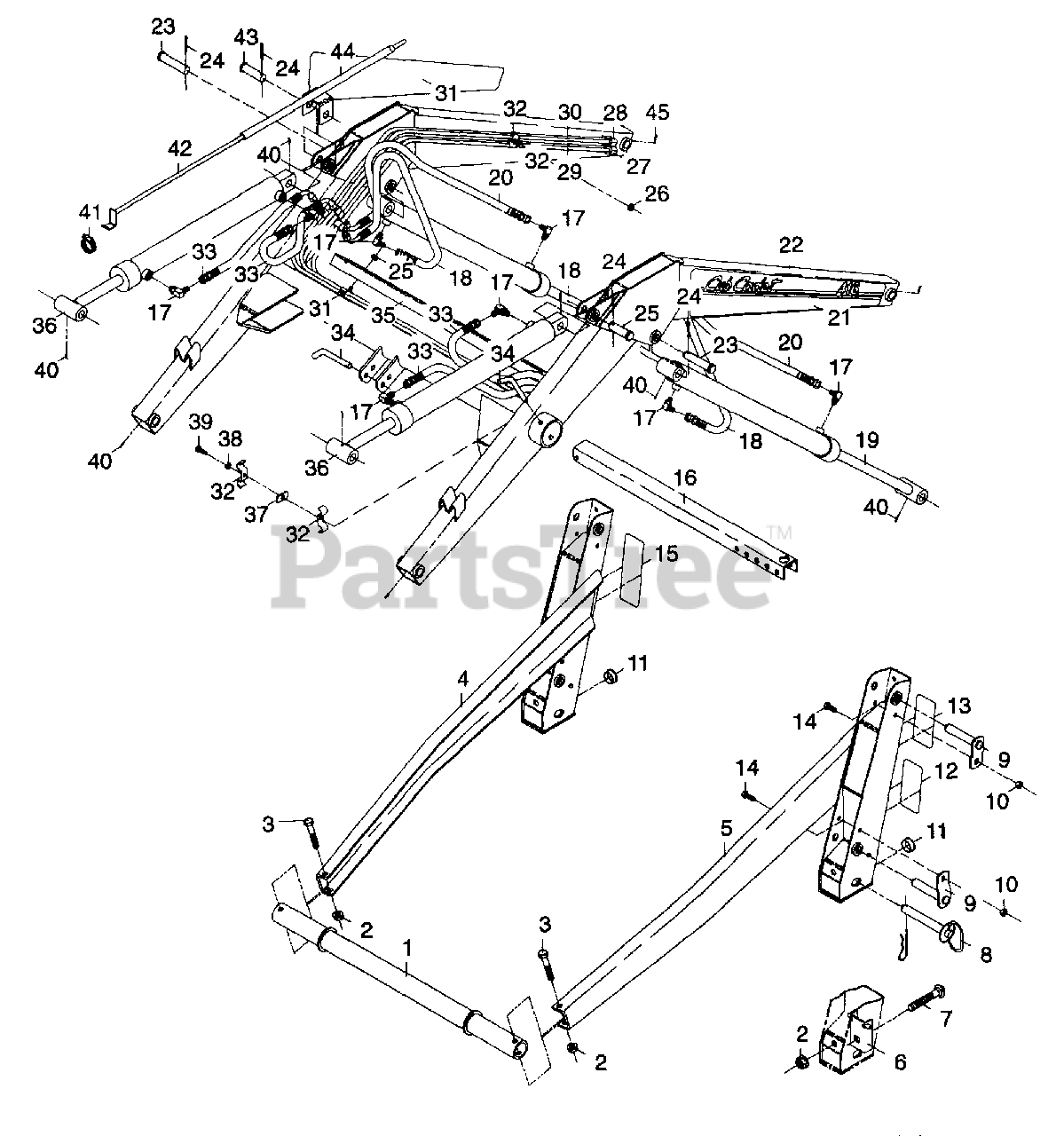

416 (590-416-100) - Cub Cadet Loader Frame Parts Diagram

Loader

Frame Parts Diagram

  • Title

1

Cub Cadet WM-6631

Crossbar Weldment

$

$

Not available

2

Cub Cadet WM-30-2131

1/2 NC Hex Flange Nut

$

$

Not available

3

Cub Cadet WM-30-0328

1/2 x 3 Capscrew
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

4

Cub Cadet WM-34280

Main frame assembly - RH

$

$

Not available

5

Cub Cadet WM-34279

Main frame assembly - LH

$

$

Not available

6

Cub Cadet WM-6622

Channel - Retainer

$

$

Not available

7

Cub Cadet WM-30-1134

1/2 x 3-1/2 Carriage Bolt

$

$

Not available

8

Cub Cadet WM-48-9040

Hitch Pin, 3/4 x 4

$

$

Not available

9

Cub Cadet WM-5522

Pin Weldment

$

$

Not available

10

Cub Cadet WM-30-2077

3/8 NC Locknut
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet WM-39-5037

Hole Plug

$

$

Not available

12

Cub Cadet WM-26-0346

Danger decal

$

$

Currently unavailable

13

Cub Cadet WM-26-0200

Decal - Caution

$

$

Not available

14

Cub Cadet WM-30-0152

3/8 NC x 1 Capscrew
(Superseded to 910-0253)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet WM-26-0324

Instruction Decal

$

$

Not available

16

Cub Cadet WM-30382

Stand Weldment

$

$

Not available

17

Cub Cadet WM-31-3036

90ø Adjustable Elbow
(Superseded to WM-63558)

$

$

Not available

18

Cub Cadet WM-36-0216

Hydraulic Hose - 24"

$

$

Not available

19

Cub Cadet WM-21-0036

Lift Cylinder Assembly

$361.99

$

In Stock, only 1 left!

0

20

Cub Cadet WM-36-0217

Hydraulic Hose - 34"

$

$

Not available

21

Cub Cadet WM-26-0342

Decal - 416

$

$

Not available

22

Cub Cadet WM-34278

Boom frame assembly

$

$

Not available

23

Cub Cadet WM-30-4072

Clevis Pin
(Superseded to WM-304072)

$

$

Not available

24

Cub Cadet WM-48-0004

3/16 x 1-1/2 Cotter pin

$

$

Not available

25

Cub Cadet WM-30-4055

Clevis Pin - 3/4 x 2-1/8

$

$

Not available

26

Cub Cadet WM-30-2055

5/16 NC Flange head locknut

$

$

Not available

27

Cub Cadet WM-21-6073

Feedline #3

$

$

Not available

28

Cub Cadet WM-21-6071

Feedline #1

$

$

Not available

29

Cub Cadet WM-21-6074

Feedline #4

$

$

Not available

30

Cub Cadet WM-21-6072

Feedline #2

$

$

Not available

31

Cub Cadet WM-26-0343

Decal - 416

$

$

Not available

32

Cub Cadet WM-48-0265

Feedline clamp
(Superseded to WM-480265)

$

$

Not available

33

Cub Cadet WM-36-0215

Hydraulic hose - 14"

$

$

Not available

34

Cub Cadet WM-21-5291

Bent Pull Pin
(Superseded to WM-215291)

$

$

Not available

35

Cub Cadet WM-37181

Feedline cover

$

$

Not available

36

Cub Cadet WM-21-0035

Tilt Cylinder Assembly

$

$

Not available

37

Cub Cadet WM-30-5000

5/16 NC Tab weld nut

$

$

Not available

38

Cub Cadet WM-30-3100

5/16 Lockwasher
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet WM-30-0100

5/16 x 3/4 Capscrew
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet WM-48-7501

1/4-28 Lube fitting

$

$

Not available

41

Cub Cadet WM-48-0263

Hose Clamp - 5/8 - 1-1/2
(Superseded to 726-0132)

$14.99

$

Usually ships in 3-6 days

0

42

Cub Cadet WM-6884

Rod Weldment

$

$

Not available

43

Cub Cadet WM-30-4077

Clevis Pin

$

$

Not available

44

Cub Cadet WM-6887

Tube Weldment

$

$

Not available

45

Cub Cadet WM-48-7503

1/4-28 x 45 Lube fitting
(Superseded to WM-7503)

$

$

Not available
