421613BVE1 (80556) - Snapper 42" Rear-Engine Riding Mower, 16hp Electrical Systems Parts Diagram

42" Rear-Engine Riding Mower, 16hp

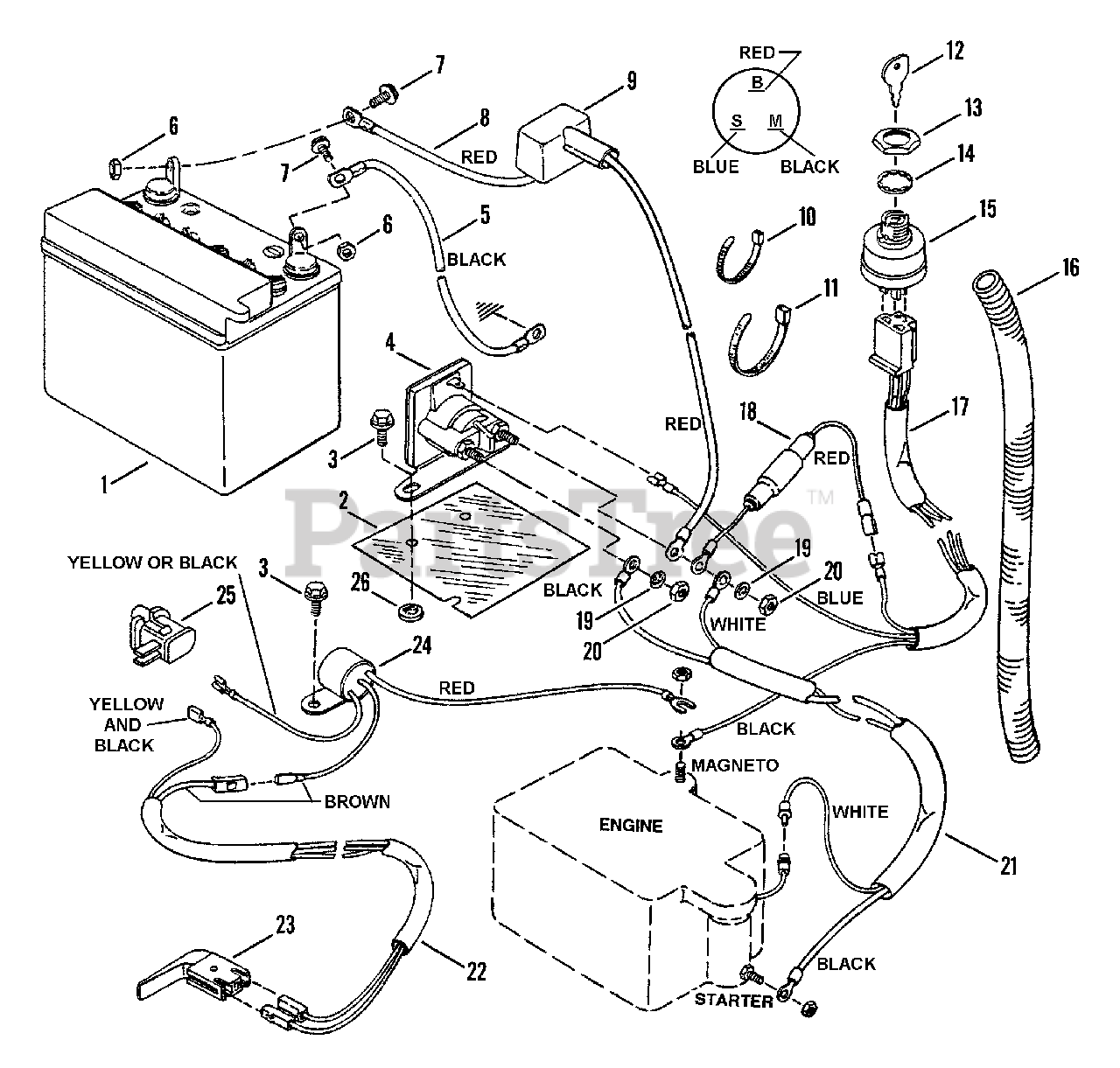

Electrical Systems Parts Diagram

  • Title

1

Snapper 7060753

KIT, 12V Dry Charge Battery
(Superseded to 7060753YP)

$

$

Not available

2

Snapper 7022887

PROTECTOR, Solenoid

$

$

Not available

3

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7075671

SOLENOID
(Superseded to 7075671YP)

Note: Was 18817

$31.99

$

In Stock, Qty 10

0

5

Snapper 7028027

CABLE, Negative
(Superseded to 7028027YP)

$10.99

$

In Stock, only 2 left!

0

6

Snapper 7090372

NUT, 1/4-20 Hex Lock
(Superseded to 703954)

$

$

Not available

7

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7019326

CABLE, Positive (Red)
(Superseded to 7019326YP)

$8.99

$

In Stock, Qty 7

0

9

Snapper 7012444

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

10

Snapper 7014451

TIE, Cable (2")
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7012080

TIE, Cable (7")
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 12

0

13

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, Qty 6

0

15

Snapper 7018816

SWITCH, Ignition
(Superseded to 7018816YP)

Note: Was 22880 (Used With Electric Start)

$42.99

$

In Stock, Qty 5

0

16

Snapper 7024252

CONDUIT
(Superseded to 7024252YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7024237

HARNESS, Ignition Wiring (B. & S. Engines)

$

$

Not available

18

Snapper 7016168

HOLDER, Fuse
(Superseded to 7016168YP)

Note: (Includes Fuse)

$23.99

$

In Stock, only 2 left!

0

Snapper 7016169

FUSE (10 AMP)
(Superseded to 7016169YP)

$18.99

$

Usually ships in 2-12 days

0

19

Snapper 7090053

WASHER, 1/4 Int. Tooth Lk.
(Superseded to 703462)

$4.49

$

In Stock, Qty 12

0

20

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 3 left!

0

21

Snapper 7015430

HARNESS, Starter Wiring (B. & S. Engines)
(Superseded to 7015430YP)

$34.99

$

In Stock, only 1 left!

0

22

Snapper 7019143

HARNESS, Deck Interlock Wiring

$

$

Not available

23

Snapper 7018524

SWITCH, Deck Interlock
(Superseded to 7018524YP)

$19.99

$

In Stock, only 1 left!

0

24

Snapper 7063064

INTERLOCK (B.& S. Engines) (Tec = 63065)
(Superseded to 7063064YP)

Note: Was 24236

$81.99

$

In Stock, only 1 left!

0

25

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 6

0

26

Snapper 7012485

RETAINER, 1/4 Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 10

0
