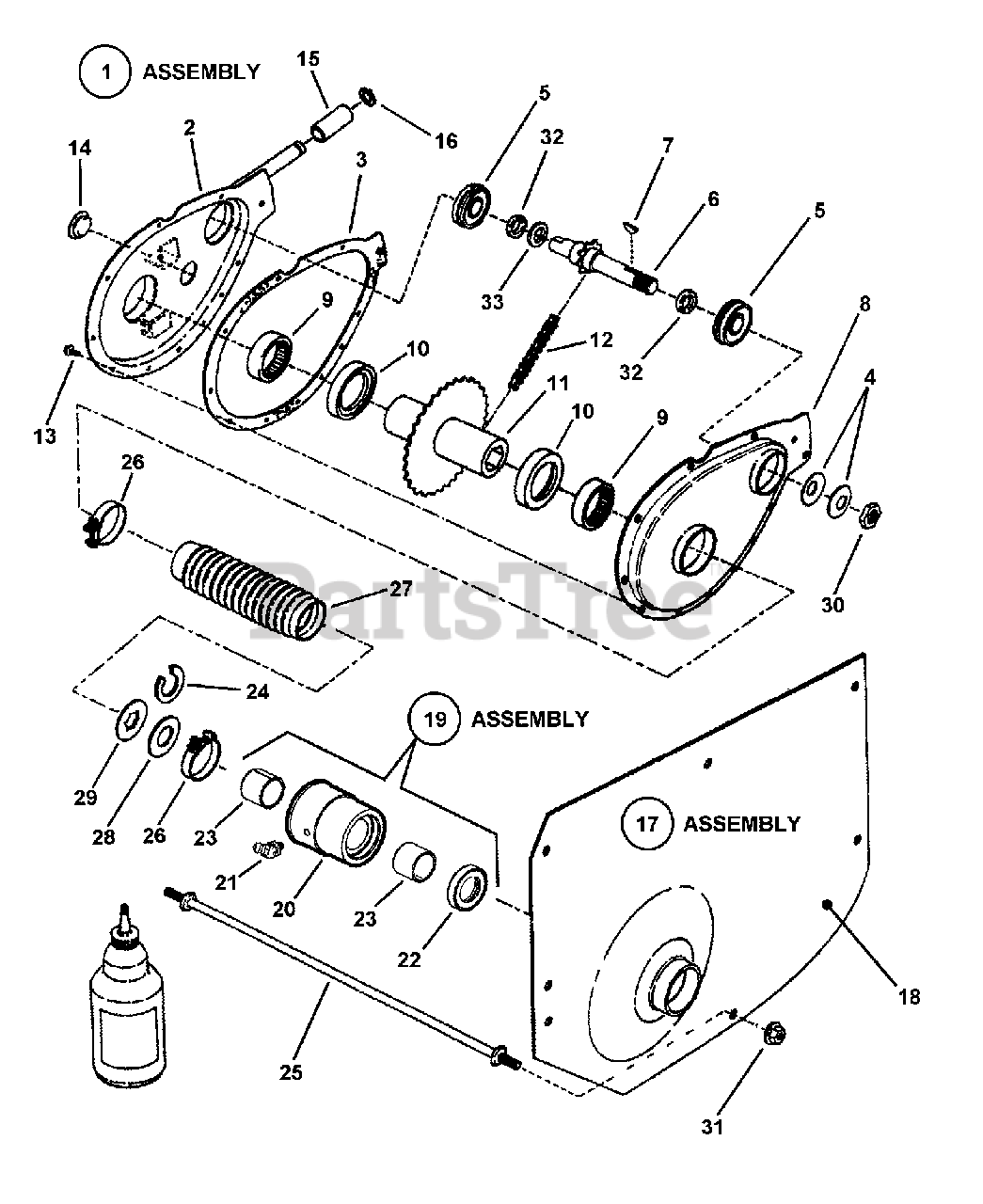

421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp CHAIN CASE, L. H. FENDER Parts Diagram

42" Rear-Engine Riding Mower, 18hp

CHAIN CASE, L. H. FENDER Parts Diagram

  • Title

1

Snapper 7052683

ASSEMBLY, Primary Chain Case
(Superseded to 7052683YP)

Note: Includes Items 2 thru 13 & 15, 16, 30 & 31

$530.99

$

In Stock, only 1 left!

0

2

Snapper 7041136

WELDMENT, Primary Chain Case, Right Hand
(Superseded to 7041136YP)

$86.99

$

Usually ships in 2-12 days

0

3

Snapper 7028761

GASKET, Primary Chain Case
(Superseded to 7028761YP)

$24.99

$

In Stock, Qty 20+

0

4

Snapper 7011121

WASHER, 5/8" Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 6

0

5

Snapper 7010756

BEARING, .625 x 1.37 x .435
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 15

0

6

Snapper 7018963

WELDMENT, Sprocket & Shaft
(Superseded to 7018963YP)

$96.99

$

In Stock, only 1 left!

0

7

Snapper 7010614

KEY,#5 Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7039778

CHAIN CASE HALF, Primary
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7010942

BEARING, Needle 1.355" ID x 1.6245" OD x .5" Wide
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 13

0

10

Snapper 7011086

THRUST WASHER, Nylon
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 16

0

11

Snapper 7040355

WELDMENT, Hub & Sprocket
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

12

Snapper 7010941

CHAIN, 46 Pitch (#35 Endless)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 14

0

13

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 12

0

14

Snapper 7011024

PLUG, 3/4"
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 19

0

15

Snapper 7022785

ROLLER, 1-3/8 Long
(Superseded to 7022785YP)

$6.49

$

In Stock, Qty 9

0

16

Snapper 7010776

RING, 1/2" External Retaining (Heavy Duty)
(Superseded to 7010776YP)

$3.99

$

In Stock, only 4 left!

0

17

Snapper 7059183

ASSEMBLY, Left Hand Fender (Incl. items 18 & 19)

$

$

Currently unavailable

18

Snapper 7037285

FENDER, Left Hand (1.628" I. D. Hole)
(Superseded to 7301302YP)

$

$

Not available

19

Snapper 7052827

ASSEMBLY, Axle Bearing (Incl. items 20 thru 23)
(Superseded to 7052827YP)

$121.99

$

In Stock, only 1 left!

0

20

Snapper 7052827

BEARING, Left Hand Fender, 3/4"
(Superseded to 7052827YP)

Note: Was 74184

$121.99

$

In Stock, only 1 left!

0

21

Snapper 7013324

FITTING, Lube, 45 Degree, 3/16" w/Hex
(Superseded to 7013324YP)

$7.99

$

In Stock, Qty 7

0

22

Snapper 7074500

SEAL, Dust/Grease Axle
(Superseded to 7074500YP)

$

$

Not available

23

Snapper 7074182

BEARING, 3/4" I.D. DX
(Superseded to 7074182YP)

$5.99

$

In Stock, Qty 12

0

24

Snapper 7012271

WASHER, Shim
(Superseded to 7011071YP)

Note: or quantity as required

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7011070

TIE ROD (5/16-24 thread- both ends)
(Superseded to 7011070YP)

$20.99

$

In Stock, only 1 left!

0

26

Snapper 7012332

BOOT CLAMP (for 2" Hose)
(Superseded to 7012332YP)

$6.99

$

In Stock, only 3 left!

0

27

Snapper 7075115

BOOT, Rear Axle, Thick Flange
(Superseded to 7075115YP)

$10.99

$

In Stock, Qty 20+

0

28

Snapper 7011071

THRUST WASHER (Nylon)
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

30

Snapper 7091505

NUT, 5/8-18 Hex Nyloc
(Superseded to 703432)

$

$

Not available

31

Snapper 7010969

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7019260

O-RING, 1/2 x 5/8"
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7027981

WASHER, Shim .625 x .875
(Superseded to 7027981YP)

$4.49

$

In Stock, only 2 left!

0

-

Snapper 7061017

GREASE, Transmission (2 oz. Maximum)
(Superseded to 7061017YP)

$

$

Not available

-

Snapper 7051451

ASSEMBLY, Left Hand Fender (Incl. Fender 37958 & Bearing 14624)

$

$

Not available
