421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp WHEELS - FRONT Parts Diagram

42" Rear-Engine Riding Mower, 18hp

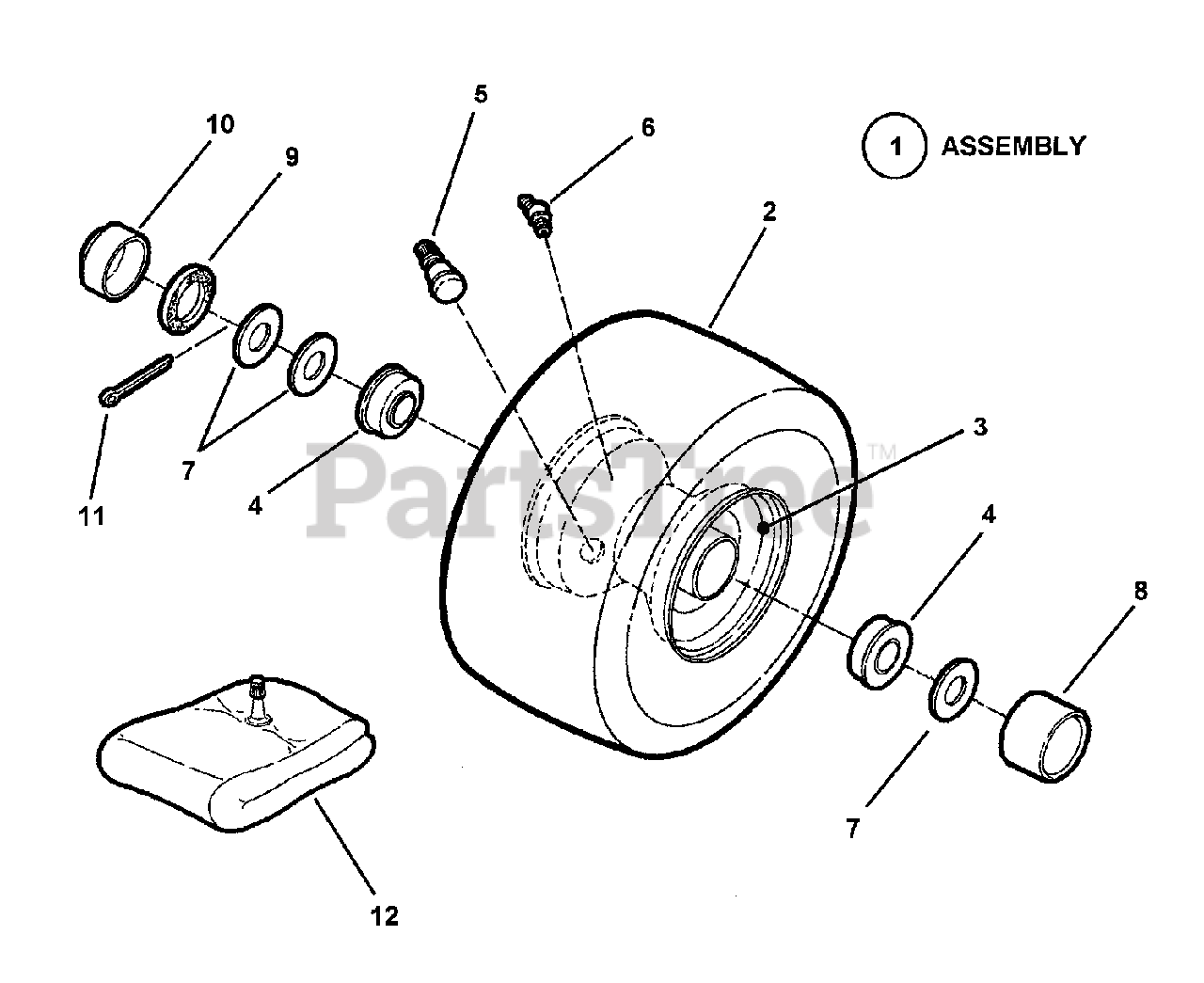

WHEELS - FRONT Parts Diagram

  • Title

1

Snapper 7058943

ASSEMBLY, Front Tire & Rim (11.0") (Complete)
(Superseded to 7058943YP)

Note: (Includes Items 2 thru 6)

$102.99

$

In Stock, Qty 9

0

2

Snapper 7073563

TIRE, 11 x 4.00-4 (Kenda)
(Superseded to 7073563YP)

$68.99

$

Usually ships in 2-12 days

0

3

Snapper 7017146

RIM (For 11.0 x 4.0 x 4 Tire)
(Superseded to 7058943YP)

$102.99

$

In Stock, Qty 9

0

4

Snapper 7011807

BALL BEARING, Flange (3/4" I.D.)
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7012234

VALVE STEM, Snap In
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

6

Snapper 7014669

* LUBE Fitting, Straight (for 3/16" hole)
(Superseded to 7014669YP)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7076998

* LUBE Fitting, Straight (for 1/4" hole)
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7010909

* LUBE Fitting, 90 Degree, Ball Check (for 1/4" hole)
(Superseded to 7010909YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7104428

* LUBE Fitting, 90 Degree, Ball Check (for 5/16" hole)
(Superseded to 7104428YP)

$5.49

$

In Stock, only 1 left!

0

7

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011022

HUB CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7011032

FELT SEAL
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7091516

COTTER PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7010821

TUBE, Inner (For 4.10/3.50 x 4 Tire)
(Superseded to 7010821YP)

$18.99

$

In Stock, Qty 9

0
