421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp WHEELS - REAR Parts Diagram

42" Rear-Engine Riding Mower, 18hp

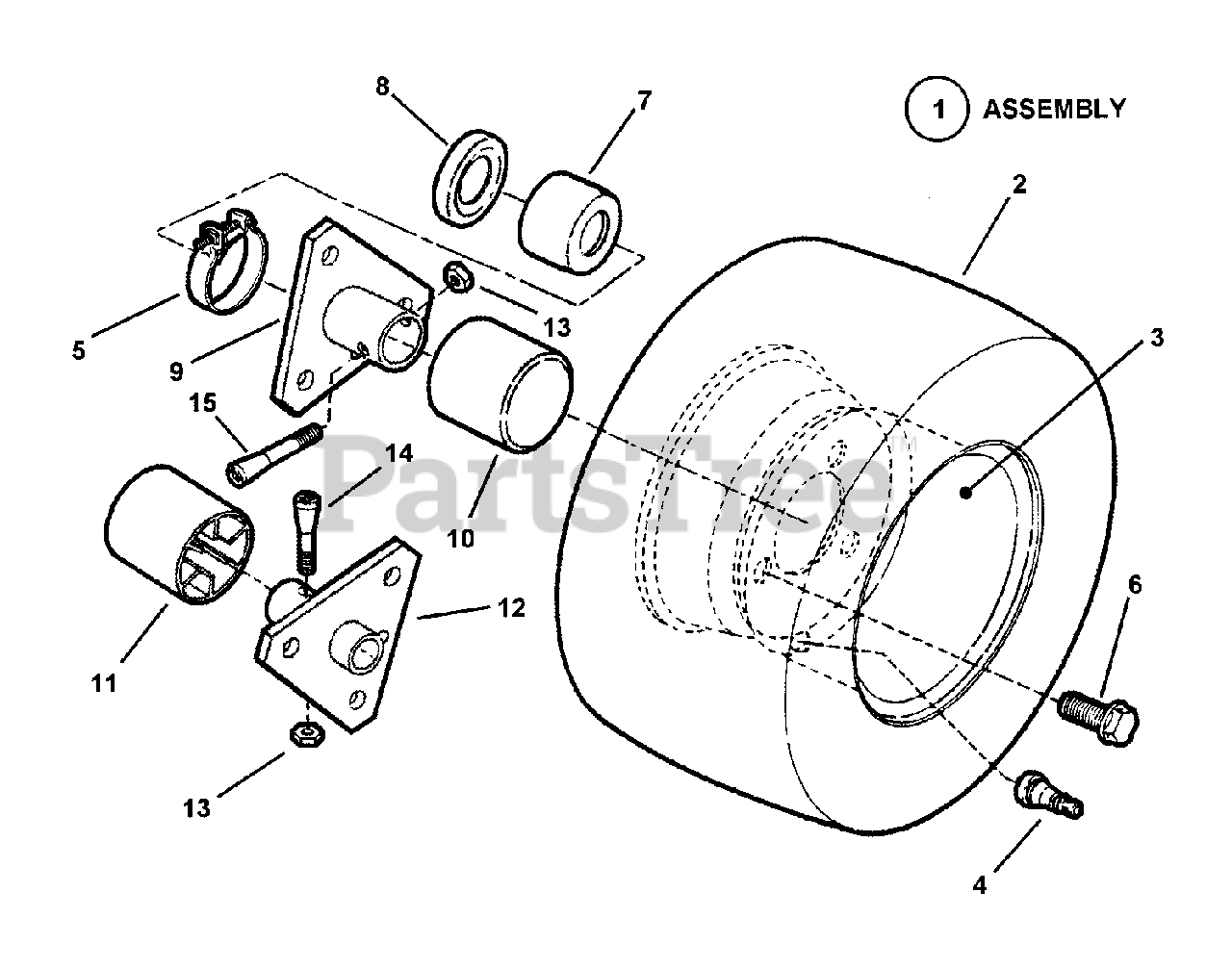

WHEELS - REAR Parts Diagram

  • Title

1

Snapper 7058951

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058951YP)

Note: (Includes 2, 3, & 4)

$186.99

$

Usually ships in 2-12 days

0

2

Snapper 7073584

TIRE, 16 x 6.50-8 (Kenda)
(Superseded to 7073584YP)

Note: (per rear tire ass'y)

$170.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

RIM, Extra Wide (For 16/7.50 x 8 Tire)
(Superseded to 7012163YP)

Note: Was 17147 (per rear tire ass'y)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE STEM, Snap In
(Superseded to 7012234SM)

Note: (per rear tire ass'y)

$6.49

$

In Stock, only 2 left!

0

5

Snapper 7012332

CLAMP, Right Hand (for 2" Hose)
(Superseded to 7012332YP)

Note: (per rear tire ass'y)

$6.99

$

In Stock, only 3 left!

0

6

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug, GR5
(Superseded to 703431)

Note: (per rear tire ass'y)

$4.99

$

In Stock, Qty 6

0

7

Snapper 7031732

BOOT, Right Hand
(Superseded to 7031732YP)

Note: (per rear tire ass'y)

$6.49

$

In Stock, Qty 20+

0

8

Snapper 7011817

SEAL, Oil
(Superseded to 7011817YP)

Note: (per rear tire ass'y)

$5.49

$

In Stock, Qty 19

0

9

Snapper 7040433

HUB, Rear Wheel RH, 3 Hole 1" ID
(Superseded to 7040433YP)

Note: (per right rear tire ass'y)

$37.99

$

Usually ships in 2-12 days

0

10

Snapper 7023895

CAP, Hub
(Superseded to 7023895YP)

Note: (per rear tire ass'y)

$6.99

$

In Stock, only 1 left!

0

11

Snapper 7023522

CAP, Hub, L. H. (Long Axle)
(Superseded to 7023522YP)

Note: (per left rear tire ass'y)

$6.49

$

In Stock, Qty 9

0

12

Snapper 7040434

HUB, Rear Wheel LH, 3 Hole 3/4" ID
(Superseded to 7040434YP)

Note: (per left rear tire ass'y)

$37.99

$

In Stock, Qty 5

0

13

Snapper 7092062

NUT, 5/16-24 Hex Lock, GR C
(Superseded to 703459)

Note: Was 11201 (per rear tire ass'y)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

AXLE BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

Note: (per left rear tire ass'y)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7011013

WHEEL BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

Note: (per right rear tire ass'y)

$6.49

$

In Stock, Qty 17

0
