425601x53B - Murray 42" Lawn Tractor (2001) Engine And Control Assembly Parts Diagram

42" Lawn Tractor

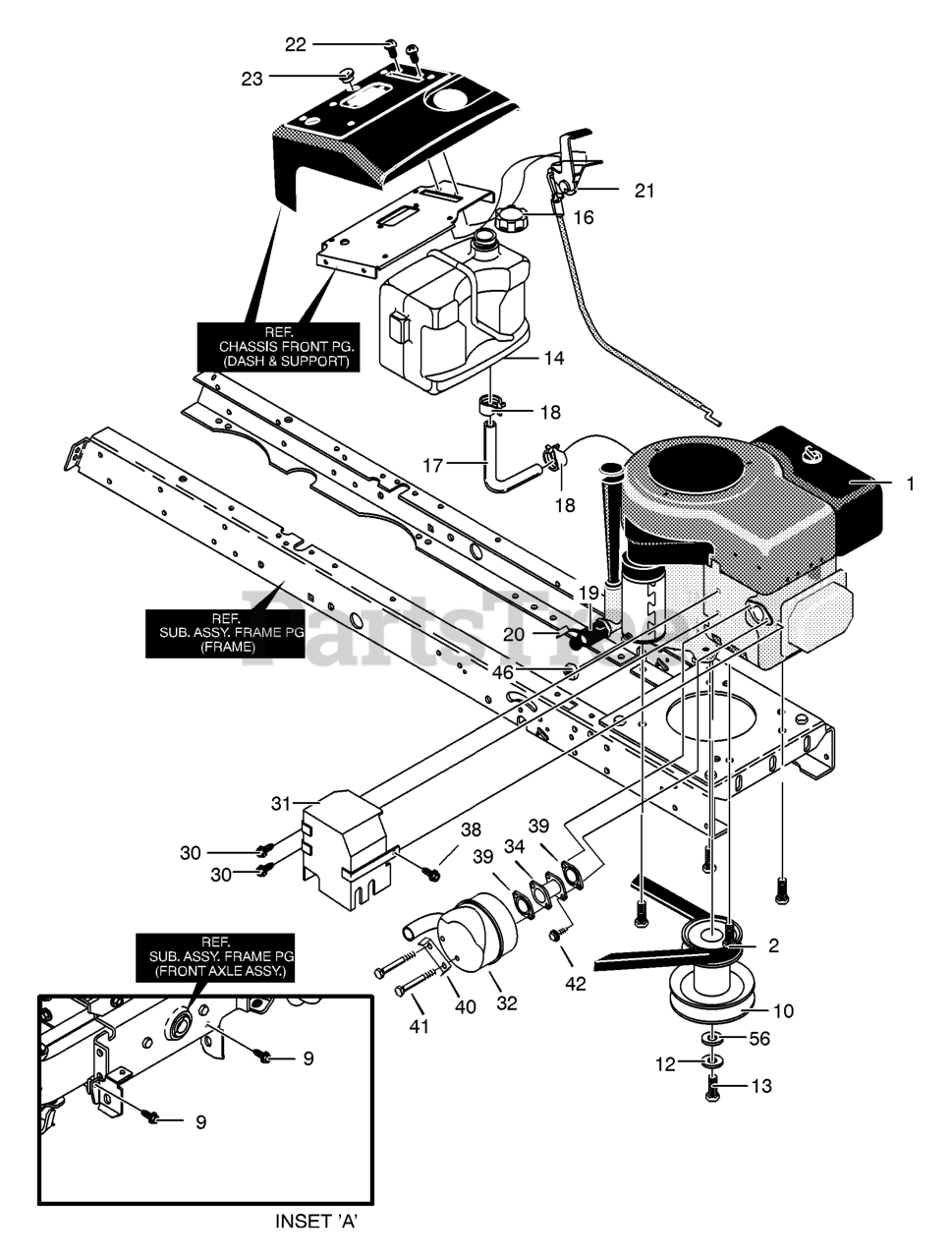

Engine And Control Assembly Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Murray 0025X7MA

BOLT 3/8 X 1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

9

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

10

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 6

0

12

Murray 019X35MA

WASHER

$4.99

$

In Stock, only 1 left!

0

13

Murray 01X140MA

BOLT

$5.49

$

In Stock, only 1 left!

0

14

Murray 690322MA

TANK, FUEL-ASSEMBLY

$120.99

$

Usually ships in 2-12 days

0

16

Murray 092317MA

FUEL CAP

$10.99

$

In Stock, Qty 10

0

17

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Must cut to length)

$22.99

$

Usually ships in 2-12 days

0

18

Murray 095197MA

CLAMP, FUEL LINE
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

19

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

20

Murray 327422

CAP, OIL DRAIN VALVE

$

$

Not available

21

Murray 092371MA

THROTTLE, CONTROL

$37.99

$

Usually ships in 2-12 days

0

22

Murray 26X201MA

SCREW

$4.49

$

In Stock, only 2 left!

0

23

Murray 093160

PLUG, DASH

$3.49

$

Usually ships in 2-12 days

0

30

Murray 06X104MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

31

Murray 094324

HEAT SHIELD ASSEMBLY

$

$

Currently unavailable

31-1

Murray 095037

SHIELD, HEAT B/S

$

$

Currently unavailable

31-2

Murray 007X93

RIVET, POP

$

$

Currently unavailable

31-3

Murray 092554

BRACKET, RIGHT

$

$

Currently unavailable

31-4

Murray 092555

BRACKET, LEFT

$3.99

$

Usually ships in 2-12 days

0

31-5

Murray 092552

PLATE, HEAT SHIELD

$

$

Currently unavailable

32

Murray 690436MA

MUFFLER, ROUND

$90.99

$

Usually ships in 2-12 days

0

34

Murray 095207MA

MUFFLER ADAPTER
(Superseded to 796002)

$43.99

$

In Stock, Qty 6

0

38

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

39

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

40

Murray 1001053

BRACKET, LOCK

$

$

Currently unavailable

41

Murray 009X59MA

BOLT

$6.99

$

In Stock, Qty 10

0

42

Murray 06X103MA

SCREW

$6.49

$

Usually ships in 2-12 days

0

46

Murray 711601

NUT, 1/4--0

$1.99

$

Usually ships in 2-12 days

0

56

Murray 17X170MA

WASHER

$

$

Not available
