42L15G60X8A (960120078) - Murray 42" Lawn Tractor, 15.5hp (2010) Steering Group (42L15G60X8Asteer) Parts Diagram

42" Lawn Tractor, 15.5hp

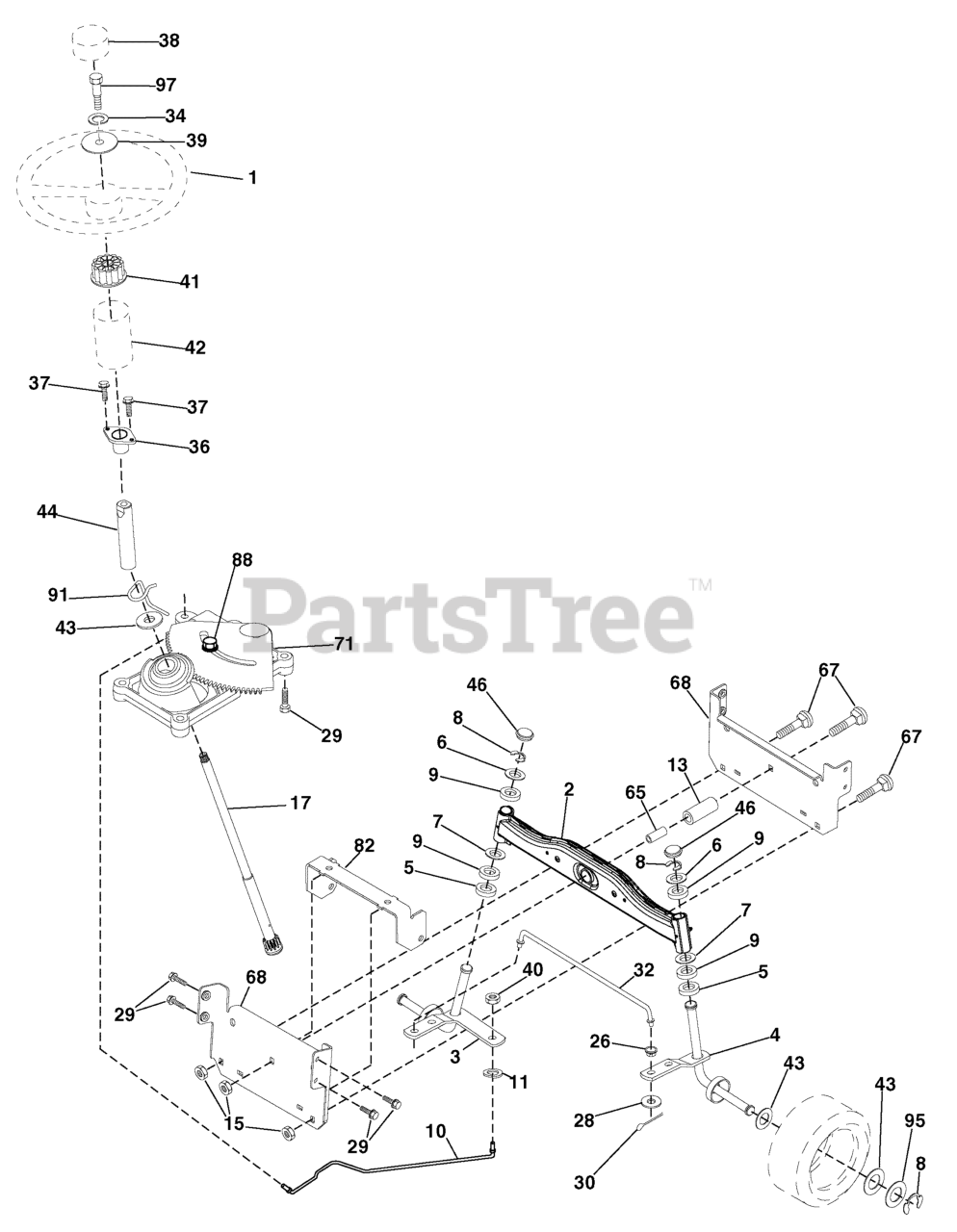

Steering Group (42L15G60X8Asteer) Parts Diagram

  • Title

1

Murray 709209

Steering Wheel

$46.99

$

Usually ships in 2-12 days

0

2

Murray 709332

Axle Assembly

$119.99

$

Usually ships in 2-12 days

0

3

Murray 709145

Spindle Assembly, L.H.

$37.99

$

Usually ships in 2-12 days

0

4

Murray 709144

Spindle Assembly, R.H.

$39.99

$

Usually ships in 2-12 days

0

5

Murray 705006

Bearing, Race, Thrust, Hardened
(Superseded to 770061)

$18.99

$

In Stock, only 1 left!

0

6

Murray 709030

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 704995)

$7.99

$

Usually ships in 2-12 days

0

7

Murray 709253

Washer 27/32 x 1-1/4 x 16 Ga.

$5.99

$

Usually ships in 2-12 days

0

8

Murray 709023

Ring, Klip
(Superseded to 705319)

$6.49

$

In Stock, only 2 left!

0

9

Murray 709294

Bearing Col. Strg.

$7.99

$

Usually ships in 2-12 days

0

10

Murray 709169

Draglink

$113.99

$

Usually ships in 2-12 days

0

11

Murray 709003

Washer, Lock

$4.49

$

Usually ships in 2-12 days

0

13

Murray 709062

Spacer Brg Axle Front

$17.99

$

Usually ships in 2-12 days

0

15

Murray 709088

Hexflange Lock

$8.99

$

In Stock, only 3 left!

0

17

Murray 709221

Shaft, Steering

$39.99

$

Usually ships in 2-12 days

0

26

Murray 709043

Bushing, Link, Drag
(Superseded to 709720)

$5.99

$

Usually ships in 2-12 days

0

28

Murray 709230

Washer 13/32 x 7/8 x 16 Ga.

$6.99

$

Usually ships in 2-12 days

0

29

Murray 709148

Screw 3/8-16 x 3/4

$7.49

$

In Stock, only 1 left!

0

30

Murray 709446

Pin, Cotter

$4.99

$

Usually ships in 2-12 days

0

32

Murray 709255

Rod, Tie

$20.99

$

Usually ships in 2-12 days

0

34

Murray 709002

Washer Lock Hvy Hlcl Spr. 5/16

$7.49

$

Usually ships in 2-12 days

0

36

Murray 709103

Bushing, Steering

$6.99

$

Usually ships in 2-12 days

0

37

Murray 709095

Screw

$4.99

$

Usually ships in 2-12 days

0

38

Murray 709256

Insert, Steering Wheel

$9.99

$

Usually ships in 2-12 days

0

39

Murray 709225

Washer 11/32 x 2-3/8 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

40

Murray 709429

Nut Crownlock 3/8-24

$2.99

$

Usually ships in 2-12 days

0

41

Murray 709208

Adaptor, Steering Wheel
(Superseded to 709772)

$56.99

$

Usually ships in 2-12 days

0

42

Murray 709086

Boot, Steering Shaft

$25.99

$

Usually ships in 2-12 days

0

43

Murray 709031

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 704996)

$7.99

$

In Stock, Qty 11

0

44

Murray 709220

Extension Shaft Steering

$28.99

$

Usually ships in 2-12 days

0

46

Murray 709026

Cap, Spindle

$6.99

$

Usually ships in 2-12 days

0

65

Murray 709328

Spacer Brace Axle

$6.49

$

Usually ships in 2-12 days

0

67

Murray 709419

Bolt Rdhd Sqnk 3/8-16 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

68

Murray 709142

Axle, Brace

$33.99

$

Usually ships in 2-12 days

0

71

Murray 709170

Steering Asm

$77.99

$

Usually ships in 2-12 days

0

82

Murray 709291

Bracket Susp Chassis Front

$20.99

$

Usually ships in 2-12 days

0

88

Murray 709168

Bolt Shoulder 7/16-20

$4.99

$

Usually ships in 2-12 days

0

91

Murray 709175

Clip Steering

$10.99

$

Usually ships in 2-12 days

0

95

Murray 709218

Washer Hardened .793 x 1.637 x .060

$4.49

$

Usually ships in 2-12 days

0

97

Murray 709442

Bolt Fin Hex 5/16-18 x 4

$6.99

$

Usually ships in 2-12 days

0
