44 - Husqvarna Chainsaw (1985-05) Crankcase Assembly Parts Diagram

Chainsaw

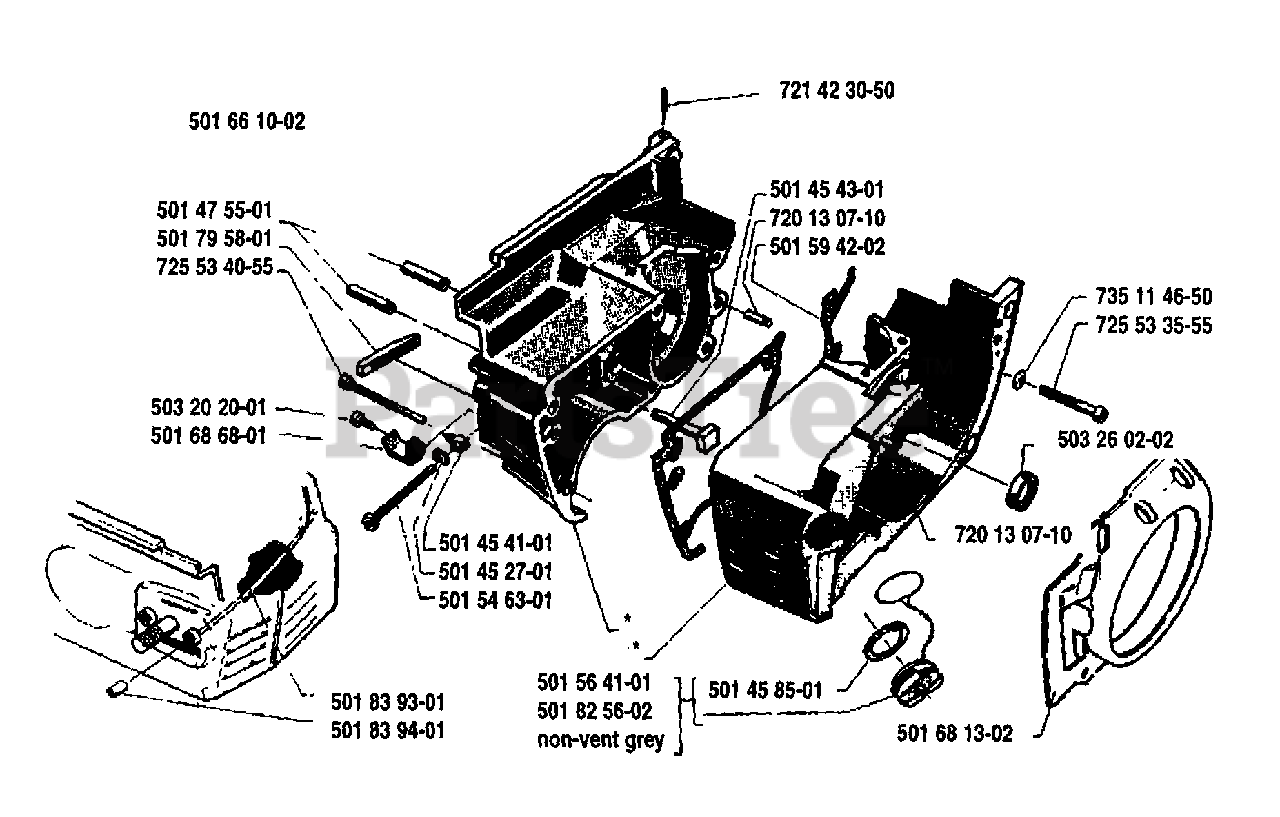

Crankcase Assembly Parts Diagram

  • Title

501661002

Husqvarna 501661002

CRANCASE W/BEARINGS

$

$

Not available

501475501

Husqvarna 501475501

SLEEVE

$

$

Not available

501795801

Husqvarna 501795801

GUIDE

$8.99

$

In Stock, only 2 left!

0

725534055

Husqvarna 725534055

SCREW MC6S 5X45

$4.99

$

Usually ships in 3-10 days

0

503202001

Husqvarna 503202001

SCREW MC6LS 5X12

$5.99

$

Usually ships in 3-10 days

0

501686801

Husqvarna 501686801

CHAIN CATCHER

$8.99

$

In Stock, Qty 7

0

501454101

Husqvarna 501454101

PAWL

$6.49

$

In Stock, Qty 20+

0

501452701

Husqvarna 501452701

NUT
(Superseded to 501452702)

$4.99

$

In Stock, Qty 20+

0

501546301

Husqvarna 501546301

SCREW

$4.99

$

In Stock, Qty 20+

0

501839301

Husqvarna 501839301

HOSE

$

$

Not available

501839401

Husqvarna 501839401

OIL TANK VENT

$6.99

$

Usually ships in 3-10 days

0

501564101

Husqvarna 501564101

TANK CAP

$

$

Not available

501825602

Husqvarna 501825602

TANK CAP
(Superseded to 501564101)

$

$

Not available

501458501

Husqvarna 501458501

GASKET

$3.49

$

In Stock, Qty 6

0

501681302

Husqvarna 501681302

AIR CONDUCTOR

$

$

Not available

501454301

Husqvarna 501454301

BOLT

$7.49

$

In Stock, only 2 left!

0

720130710

Husqvarna 720130710

PIN 5X14

$4.99

$

Usually ships in 3-10 days

0

501594202

Husqvarna 501594202

C.CASE GSKT
(Superseded to 501594203)

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$4.99

$

In Stock, only 1 left!

0

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$4.99

$

In Stock, only 1 left!

0

503260202

Husqvarna 503260202

SEALING RING

$18.99

$

In Stock, Qty 5

0

720130710

Husqvarna 720130710

PIN 5X14

$4.99

$

Usually ships in 3-10 days

0

721423050

Husqvarna 721423050

SPIRAL PIN 3.5X14

$

$

Not available
