442 (190-442-100) - Cub Cadet 40" Rear PTO Tiller Mast Frame & Related Parts Parts Diagram

40" Rear PTO Tiller

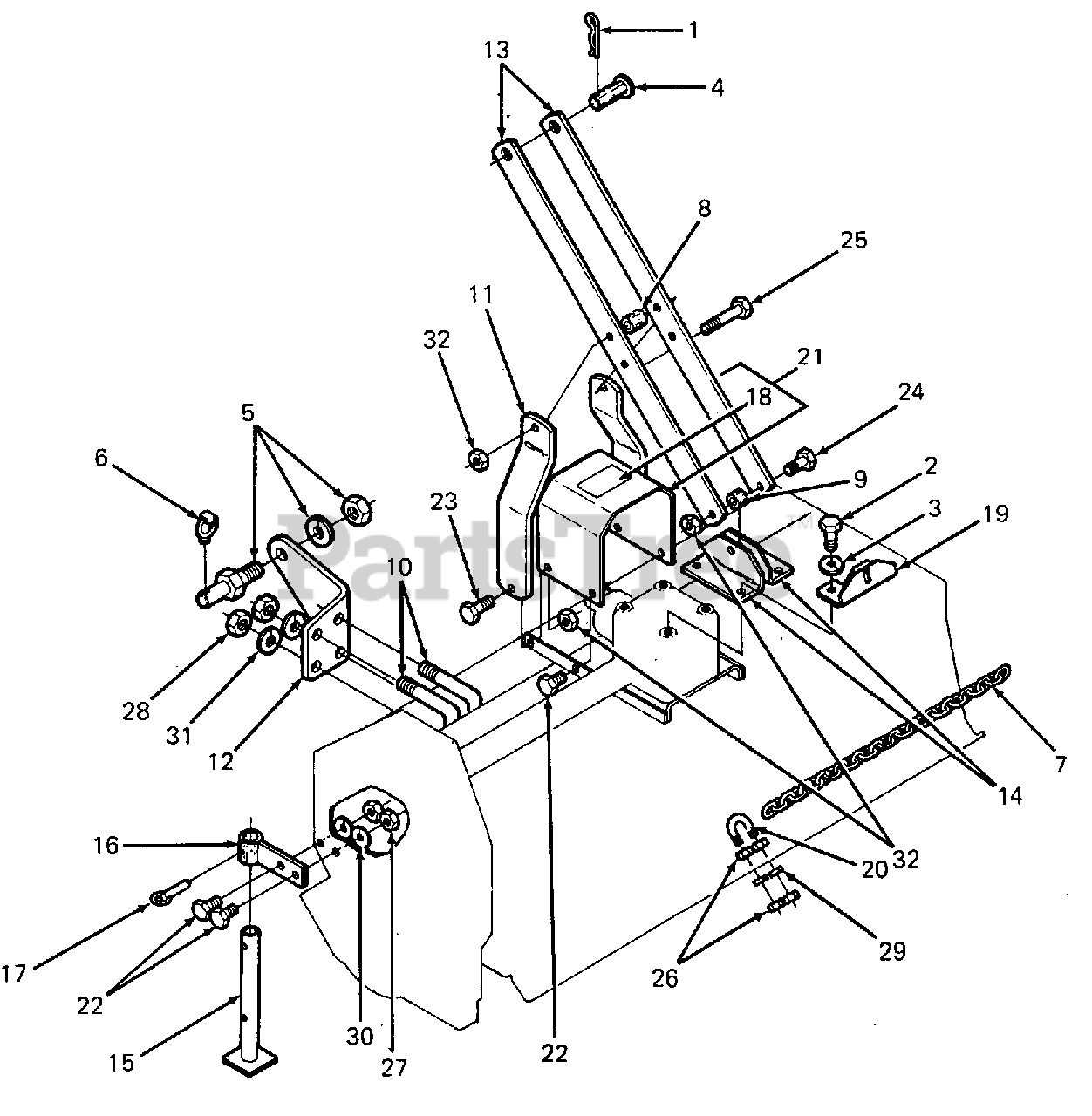

Mast Frame & Related Parts Parts Diagram

  • Title

1

Cub Cadet BU-15986

Pin, Hair

$

$

Currently unavailable

2

Cub Cadet BU-44153

Screw, Hex Cap, M10 X 22 mm Lg GR 8.8

$

$

Currently unavailable

3

Cub Cadet BU-44198

Washer, Lock, M10

$

$

Currently unavailable

4

Cub Cadet BU-53066

Pin, Clevis

$

$

Currently unavailable

5

Cub Cadet BU-69388

Pin, Lift Arm

$

$

Not available

6

Cub Cadet BU-69391

Pin, Lynch

$

$

Not available

7

Cub Cadet BU-80591

Chain

$

$

Not available

8

Cub Cadet BU-80599

Bushing, Top Link, 1-1/16 Lg

$

$

Currently unavailable

9

Cub Cadet BU-80600

Bushing, Mast, 9/16 Lg

$

$

Not available

10

Cub Cadet BU-80601

U-Bolt, 1/2-13 Trd

$

$

Currently unavailable

11

Cub Cadet BU-80607

Bar, Mast

$

$

Not available

12

Cub Cadet BU-83315

Hitch Lug LH

$

$

Not available

Cub Cadet BU-83316

Hitch Lug RH

$

$

Not available

13

Cub Cadet BU-80611

Toplink Mast

$

$

Currently unavailable

14

Cub Cadet BU-80612

Mast Support

$

$

Currently unavailable

15

Cub Cadet BU-80774

Parking Stand

$

$

Not available

16

Cub Cadet BU-80775

Securing Stand

$

$

Currently unavailable

17

Cub Cadet BU-80833

Pin

$

$

Currently unavailable

18

Cub Cadet BU-80933

Decal, Caution

$

$

Not available

19

Cub Cadet BU-81109

Chain Retainer

$

$

Currently unavailable

20

Cub Cadet BU-81194

U-Bolt, 1/4-20

$

$

Currently unavailable

21

Cub Cadet BU-83112

PTO Shield w/Decal

Note: (Includes Ref. No. 18)

$

$

Currently unavailable

22

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1-1/2 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet BU-20048

Screw, Hex Cap, 3/8-16 X 2-1/4 Lg GR 5

$

$

Currently unavailable

25

Cub Cadet 710-3085

Screw, Hex Cap, 3/8-16 X 3-1/2 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3034

Nut, Hex, 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

30

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet BU-20363

Nut, Hex Lock, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0
