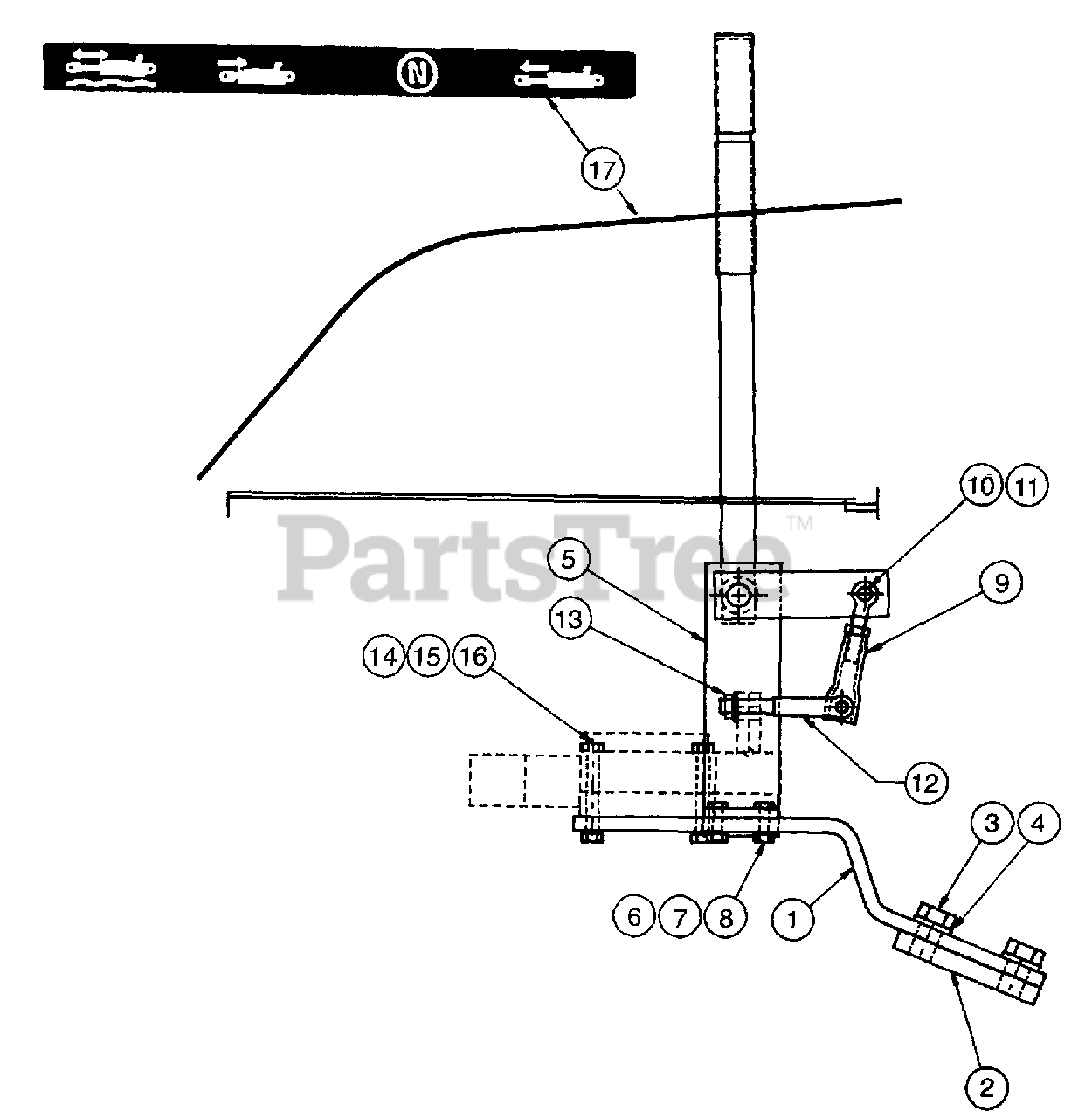

445 (590-445-100) - Cub Cadet Auxiliary Valve Kit Auxiliary Valve Kit Parts Diagram

Auxiliary Valve Kit

Auxiliary Valve Kit Parts Diagram

  • Title

1

Cub Cadet WM-108-6-247

Valve plate assembly

$

$

Not available

2

Cub Cadet WM-108-6-226

Spacer

$

$

Not available

3

Cub Cadet WM-21-602

Bolt M14-2 x 45mm

$

$

Not available

4

Cub Cadet WM-21-122

Lock washer

$

$

Currently unavailable

5

Cub Cadet WM-108-6-227

Handle-Stand assembly

$

$

Not available

6

Cub Cadet WM-21-503

Bolt 1/4-20 x 1 GR5
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 18

0

7

Cub Cadet WM-21-169

Nut 1/4-20

$

$

Not available

8

Cub Cadet WM-21-173

Lock washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet WM-108-6-241

Free link assembly

$

$

Not available

10

Cub Cadet WM-21-180

Flat washer 3/8

$

$

Not available

11

Cub Cadet WM-21-282

Cotter pin
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

12

Cub Cadet WM-16-742

Valve link

$

$

Not available

13

Cub Cadet WM-21-609

Serrated flange nut M10-1.5

$

$

Not available

14

Cub Cadet WM-21-611

Bolt 5/16-18 x 2 1/4 GR5

$

$

Not available

15

Cub Cadet WM-21-170

5/16 NC Nut

$

$

Not available

16

Cub Cadet WM-21-174

Lock washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet WM-10-104

Decal
(Superseded to WM-10104-1)

$

$

Not available
