44520 (2613) - Toro Debris Blower (SN: 099000001 - 099999999) (1999) DEFLECTOR KIT-MODEL NO. 44521 Parts Diagram

Debris Blower

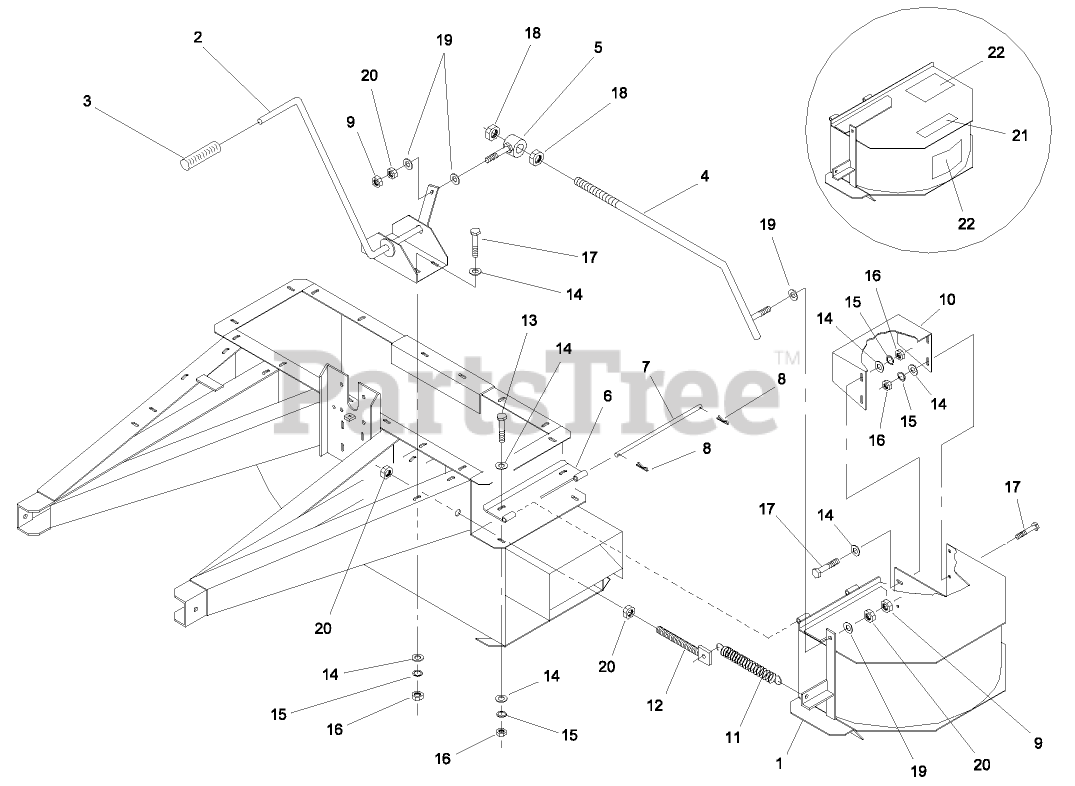

DEFLECTOR KIT-MODEL NO. 44521 Parts Diagram

  • Title

1

Toro 61-005-0112

AIR REVERSE ASSY

$

$

Currently unavailable

2

Toro 61-005-0101

LIFT HANDLE ASY

$

$

Currently unavailable

3

Toro 01-259-0010

HANDLE-GRIP
(Superseded to 95-0886)

$10.99

$

Usually ships in 3-6 days

0

4

Toro 61-005-0091

LIFT ARM ASY

$

$

Currently unavailable

5

Toro 48-005-0591

REEL LIFT TUBE WA

$

$

Not available

6

Toro 61-005-0031

HINGE ASSEMBLY

$

$

Currently unavailable

7

Toro 61-004-0801

HINGE PIN PPL

$

$

Currently unavailable

8

Toro 3272-48

PIN-COTTER

$9.99

$

Usually ships in 3-6 days

0

9

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 9

0

10

Toro 61-004-0791

REVERSE AIR DEFLECTOR

$

$

Currently unavailable

11

Toro 01-261-0340

Spring
(Superseded to 01-261-0340-01)

$56.99

$

Usually ships in 3-6 days

0

12

Toro 61-005-0991

SPRING LUG

$

$

Currently unavailable

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

19

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 75-5190

DECAL- NO RIDERS
(Superseded to 93-6689)

$13.99

$

Usually ships in 3-6 days

0

22

Toro 01-506-0110

DECAL - AIR DEFLECTOR

$

$

Not available
