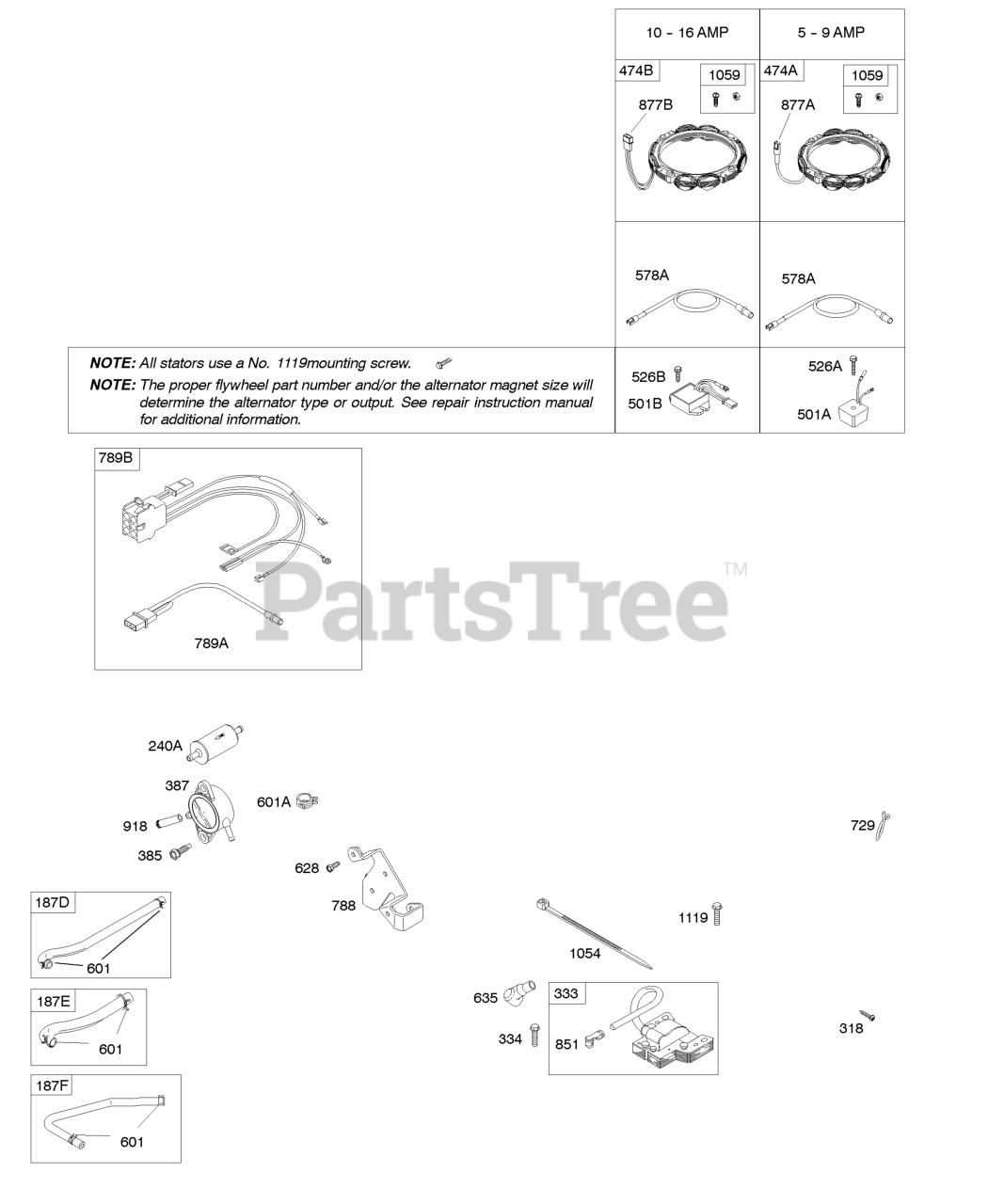

446677-0366-E1 - Briggs & Stratton Vertical Engine Alternators, Fuel Supply, Ignition Parts Diagram

Vertical Engine

Alternators, Fuel Supply, Ignition Parts Diagram

  • Title

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$14.99

$

Usually ships in 2-12 days

0

187E

Briggs & Stratton 791801

Line-Fuel
(Superseded to 791744)

Note: (Formed)(Cut To Required Length)

$14.99

$

Usually ships in 2-12 days

0

187F

Briggs & Stratton 791881

Line-Fuel

Note: (Formed Hose)

$13.99

$

Usually ships in 2-12 days

0

240A

Briggs & Stratton 695666

Filter-Fuel
(Superseded to 845125)

$7.49

$

In Stock, Qty 20+

0

318

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Mounting Bracket)

$3.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 691060

Armature-Magneto
(Superseded to 592846)

$56.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 17

0

385

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: (5 To 9 Amp Regulated)

$102.99

$

In Stock, only 3 left!

0

474B

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, only 4 left!

0

501A

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

$64.99

$

In Stock, only 2 left!

0

501B

Briggs & Stratton 691185

Regulator
(Superseded to 845907)

$61.99

$

In Stock, Qty 17

0

526A

Briggs & Stratton 691129

SCREW

Note: (Regulator)

$3.99

$

In Stock, Qty 8

0

526B

Briggs & Stratton 691108

SCREW

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

578A

Briggs & Stratton 691208

Wire Assembly

$20.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, only 2 left!

0

628

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump Bracket)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 14

0

729

Briggs & Stratton 694123

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691039

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 698330

HARNESS, Wiring

$39.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877A

Briggs & Stratton 393537

Wire/Connector-Alternator

$

$

Not available

877B

Briggs & Stratton 399916

Wire/Connector-Alternator

$12.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 694000

Hose-Vacuum

$4.99

$

In Stock, Qty 20+

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
