449 (190-449-100) - Cub Cadet 45" Snow Thrower Spring Assist Kit Spring Assist Kit Parts Diagram

45" Snow Thrower Spring Assist Kit

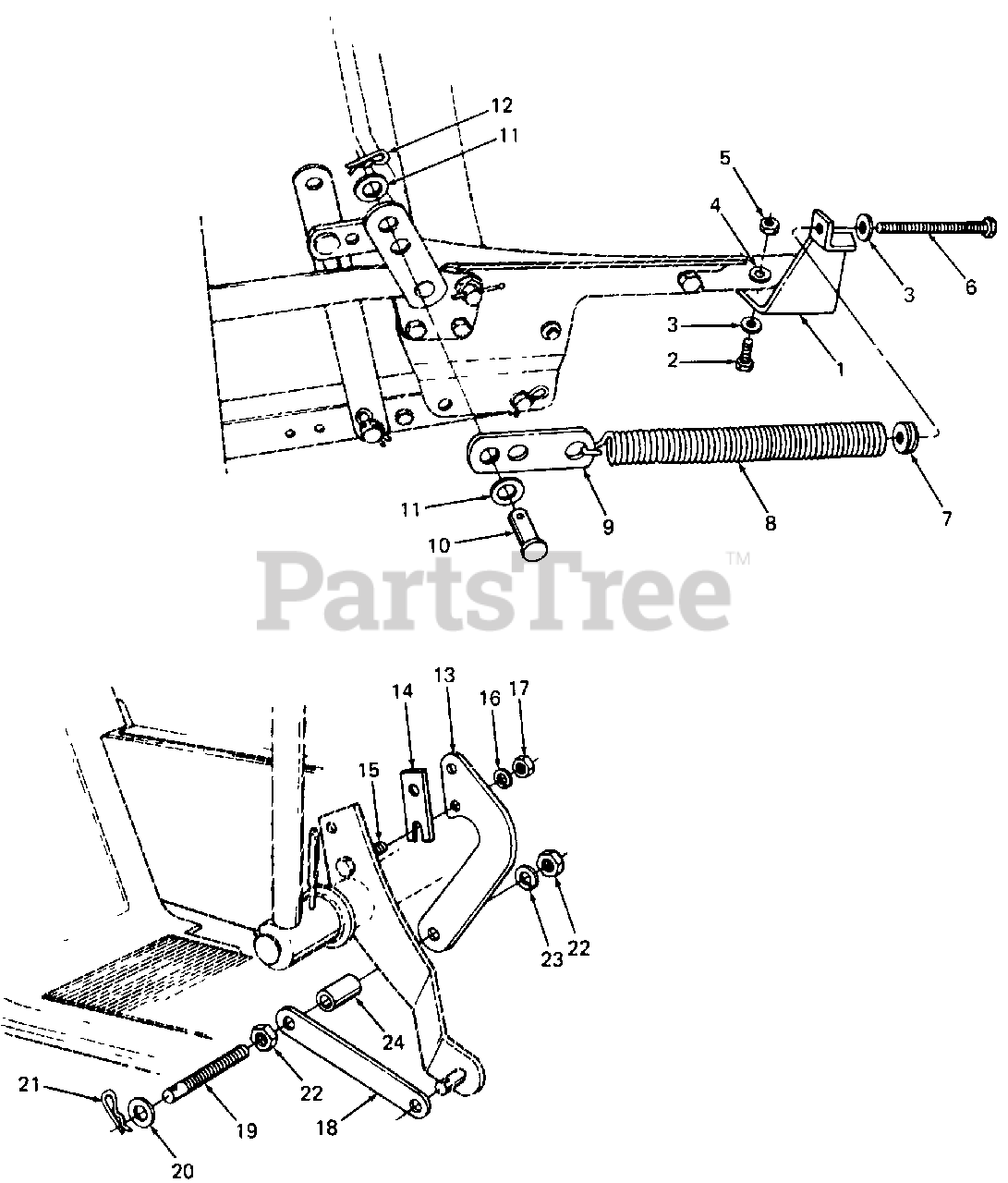

Spring Assist Kit Parts Diagram

  • Title

1

Cub Cadet 784-5400

Bracket, Helper Spring

$

$

Currently unavailable

2

Cub Cadet 710-0253

Screw, Hex Cap, 3/8-16 X 1.0 Lg
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0235

Washer, Flat, .406 X 1.25 X .172 Thk
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0677

Screw, Hex Cap, Special

$

$

Not available

7

Cub Cadet 711-0635

Insert, Spring

$44.99

$

In Stock, only 1 left!

0

8

Cub Cadet 732-0557

Spring, Extension

$

$

Not available

9

Cub Cadet 784-5248

Link, Lift

Variations

Cub Cadet 784-5248-0637

LIFT LINK - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 711-0309

Pin, Clevis, .62 Dia X 1.20 Lg
(Superseded to 711-0309A)

$12.99

$

In Stock, Qty 9

0

11

Cub Cadet 736-0290

Washer, Flat, .635 X 1.00 X .067 Thk

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 13

0

13

Cub Cadet 784-5425

Bracket, Lift Arm Extension

Variations

Cub Cadet 784-5425-0637

LIFT ARM BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 784-5298

Plate, Spacer

$

$

Not available

15

Cub Cadet 710-0191

Screw, Hex Cap, 3/8-24 X 1.25 Lg GR5

$4.99

$

In Stock, Qty 8

0

16

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 10318

Link, Lift

$

$

Currently unavailable

19

Cub Cadet 711-0804

Pin, Lift Handle

$

$

Not available

20

Cub Cadet 736-0272

Washer, Flat, .51 X 1.00 X .060 Thk

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 714-0101

Pin, Internal Cotter

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

23

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 750-0150

Spacer, .55 X .75 X 1.00 Lg

$

$

Not available
