45 - Husqvarna Chainsaw (1988-05) Carburetor Parts Parts Diagram

Chainsaw

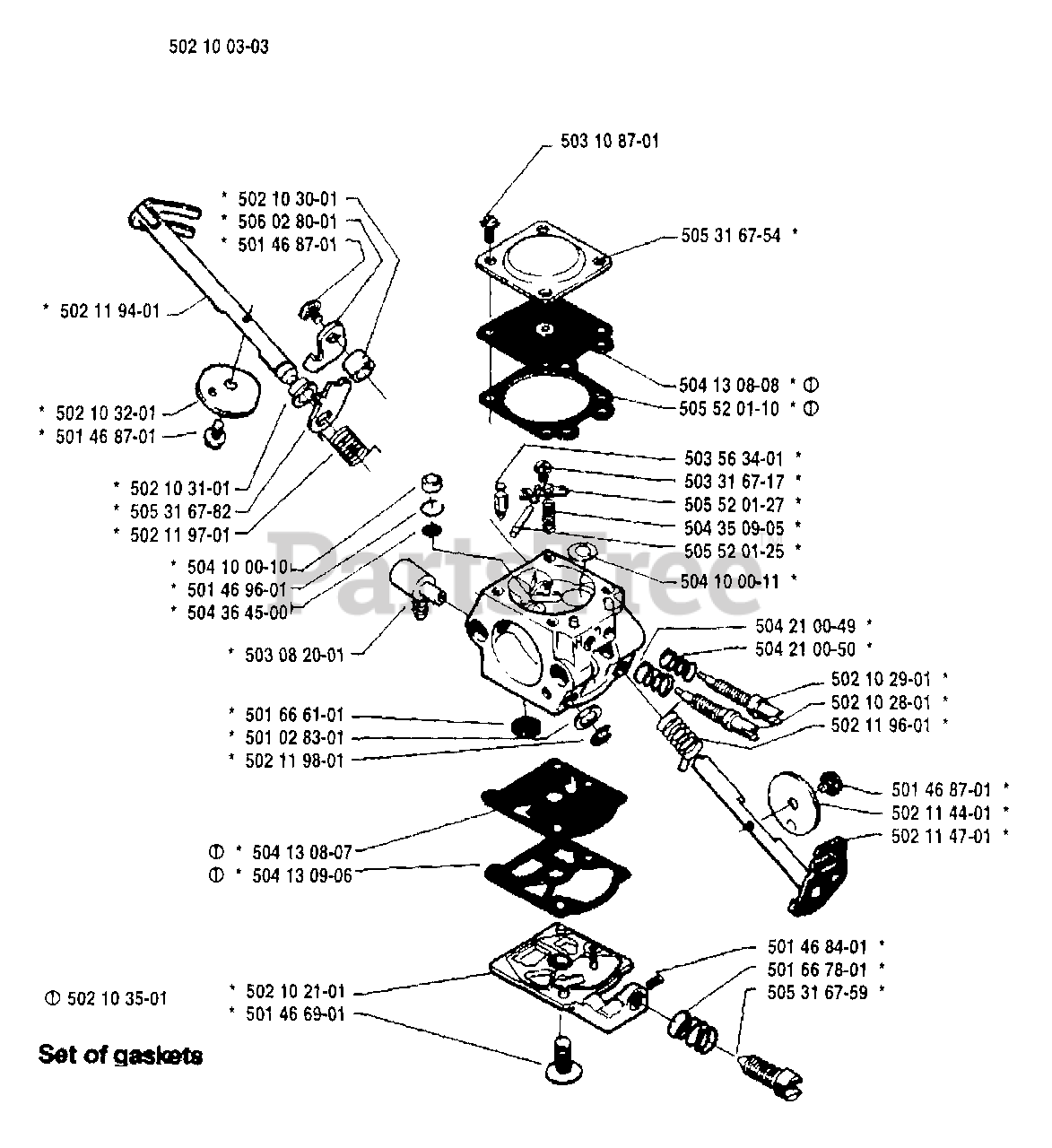

Carburetor Parts Parts Diagram

  • Title

502119401

Husqvarna 502119401

CHOKE SHAFT

$

$

Not available

502103001

Husqvarna 502103001

SPACER

$3.99

$

Usually ships in 3-10 days

0

506028001

Husqvarna 506028001

STARTER LEVER

$

$

Not available

501468701

Husqvarna 501468701

SCREW

$6.49

$

Usually ships in 3-10 days

0

502103201

Husqvarna 502103201

CHOKE FLAP

$

$

Not available

501468701

Husqvarna 501468701

SCREW

$6.49

$

Usually ships in 3-10 days

0

502103101

Husqvarna 502103101

BUSHING

$8.49

$

Usually ships in 3-10 days

0

505316782

Husqvarna 505316782

STARTER LEVER

$2.49

$

Usually ships in 3-10 days

0

502119701

Husqvarna 502119701

Spring

$1.49

$

In Stock, only 1 left!

0

504100010

Husqvarna 504100010

WELCH PLUG
(Superseded to 530035225)

$3.99

$

Usually ships in 3-10 days

0

501469601

Husqvarna 501469601

RETAINING RING
(Superseded to 501469502)

$

$

Not available

504364500

Husqvarna 504364500

Filter

$0.99

$

In Stock, only 1 left!

0

503082001

Husqvarna 503082001

NIPPLE

$5.99

$

Usually ships in 3-10 days

0

501666101

Husqvarna 501666101

FUEL INLET SCREEN

$6.99

$

Usually ships in 3-10 days

0

501028301

Husqvarna 501028301

NUT 312300MA

$6.99

$

Usually ships in 3-10 days

0

502119801

Husqvarna 502119801

CLIPS

$3.49

$

Usually ships in 3-10 days

0

504130807

Husqvarna 504130807

PUMP DIAPHRAGM

$6.49

$

In Stock, Qty 11

0

504130906

Husqvarna 504130906

GASKET

$4.99

$

In Stock, Qty 5

0

502103501

Husqvarna 502103501

REPAIR KIT DIAPHRAGM SET

$16.76

$

Usually ships in 3-10 days

0

502102101

Husqvarna 502102101

PUMP COVER

$

$

Not available

501466901

Husqvarna 501466901

SCREW

$3.99

$

In Stock, Qty 5

0

502114401

Husqvarna 502114401

THROTTLE FLAP

$

$

Not available

502114701

Husqvarna 502114701

THROTTLE SHAFT
(Superseded to 503570201)

$

$

Not available

501468401

Husqvarna 501468401

SPRING

$5.99

$

In Stock, only 1 left!

0

501667801

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

505316759

Husqvarna 505316759

IDLE SPEED SCREW
(Superseded to 503104701)

$3.49

$

In Stock, only 1 left!

0

501468701

Husqvarna 501468701

SCREW

$6.49

$

Usually ships in 3-10 days

0

504210049

Husqvarna 504210049

SPRING, H-NEEDLE

$7.49

$

In Stock, only 4 left!

0

504210050

Husqvarna 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

502102901

Husqvarna 502102901

USE 401

$6.99

$

Usually ships in 3-10 days

0

502102801

Husqvarna 502102801

Hi-Speed Needle

$

$

Not available

502119601

Husqvarna 502119601

SPRING, CARB. 40

$

$

Not available

504130808

Husqvarna 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

505520110

Husqvarna 505520110

GASKET, METERING SIDE

$

$

Not available

503563401

Husqvarna 503563401

INLET NEEDLE

$6.49

$

In Stock, Qty 12

0

505520127

Husqvarna 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

504350905

Husqvarna 504350905

Spring

$

$

Not available

505520125

Husqvarna 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

504100011

Husqvarna 504100011

WELCH PLUG
(Superseded to 503574201)

$6.99

$

In Stock, only 4 left!

0

503316717

Husqvarna 503316717

$

$

Currently unavailable

503108701

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

505316754

Husqvarna 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

502100303

Husqvarna 502100303

CARBURETOR
(Superseded to 503281320)

$102.99

$

In Stock, only 1 left!

0
