450 - Shindaiwa Chainsaw Starter Parts Diagram

Chainsaw

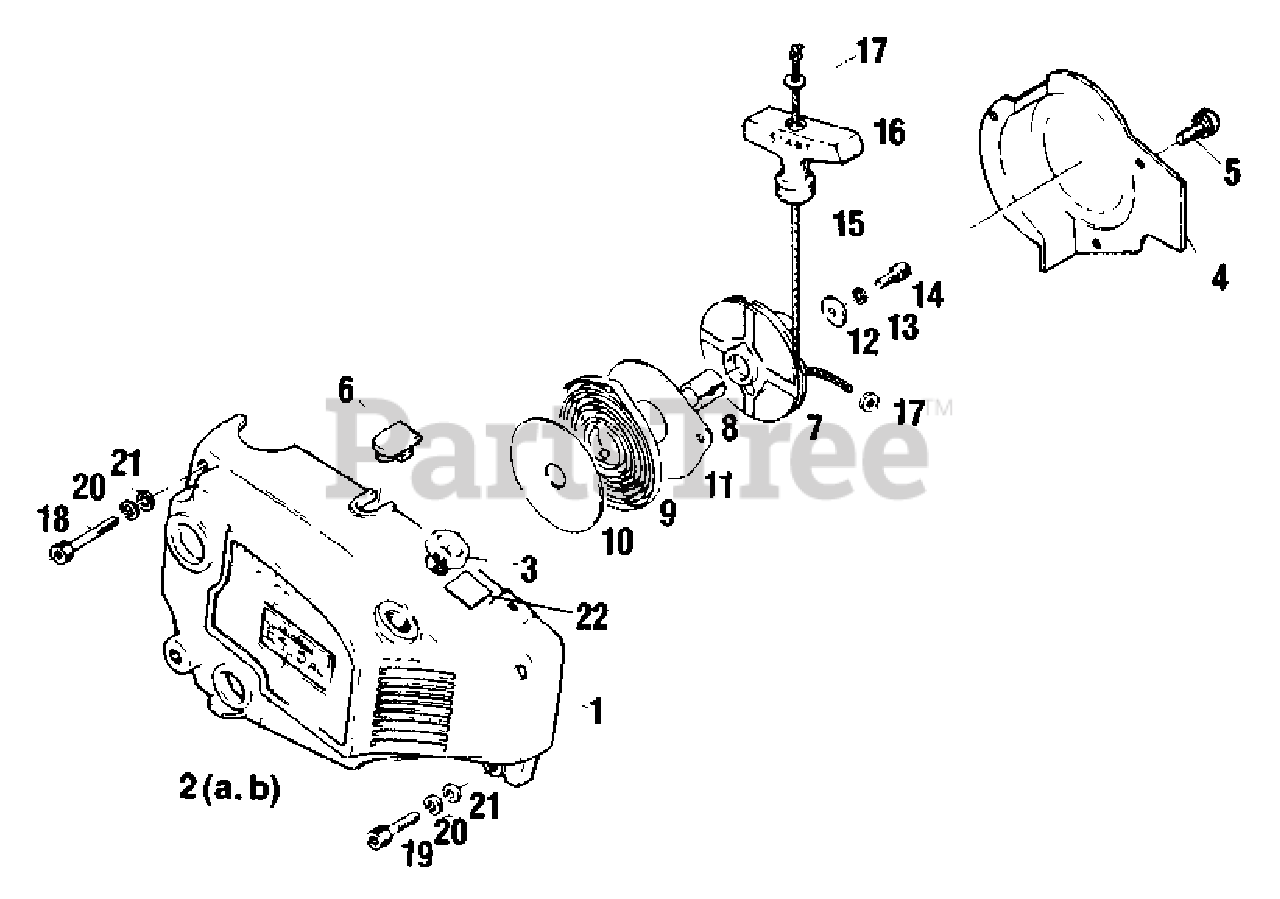

Starter Parts Diagram

  • Title

Echo 99900-00217

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

Echo 99900-00218

STARTER CASE ASSY

$

$

Currently unavailable

1

Echo 22122-75110

CASE, STARTER

$

$

Currently unavailable

2A

Echo 99900-00208

NAME PLATE (B)
(Superseded to Discontinued)

Note: For 415

$

$

Not available

2B

Echo 99900-00219

NAME PLATE (B)
(Superseded to Discontinued)

Note: For 450

$

$

Not available

3

Echo 22100-75130

GUIDE

$3.49

$

Usually ships in 2-4 days

0

4

Echo 22122-75150

DEFLECTOR, AIR

$

$

Currently unavailable

5

Echo 01213-04080

SCREW - 4X8
(Superseded to 9156404008)

$0.99

$

In Stock, only 4 left!

0

6

Echo 22122-75160

PLUG

$

$

Currently unavailable

Echo 22100-75200

REEL ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 22100-75210

REEL, ROPE

$

$

Currently unavailable

8

Echo 22100-75230

BUSHING, REEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 22100-75310

SPRING, REWIND
(Superseded to Discontinued)

$

$

Not available

10

Echo 22100-75330

PLATE - A
(Superseded to Discontinued)

$

$

Not available

11

Echo 22100-75340

PLATE - B

$3.49

$

In Stock, only 1 left!

0

12

Echo 22100-75350

WASHER
(Superseded to Discontinued)

$

$

Not available

13

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

14

Echo 01020-04100

SCREW - 4X10
(Superseded to 90010504010)

$1.49

$

In Stock, Qty 20+

0

15

Echo 22100-75410

ROPE
(Superseded to Discontinued)

$

$

Not available

16

Echo 22100-75420

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

17

Echo 22100-75221

KNOB, STOPPER
(Superseded to Discontinued)

$

$

Not available

18

Echo 01020-04350

SCREW - 4X35

$0.99

$

Usually ships in 2-4 days

0

19

Echo 01020-04240

SCREW - 4X24
(Superseded to 9110004024)

$0.99

$

In Stock, Qty 8

0

20

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

21

Echo 01610-04050

WASHER - 4
(Superseded to 90060000004)

$0.99

$

In Stock, Qty 17

0

22

Echo 99900-00192

CAUTION PLATE (A)
(Superseded to Discontinued)

$

$

Not available
