4510 (31AH9J77766) - Troy-Bilt Polar Blast 45" Snow Thrower (2008) Handle Panel & Discharge Chute Parts Diagram

Polar Blast 45" Snow Thrower

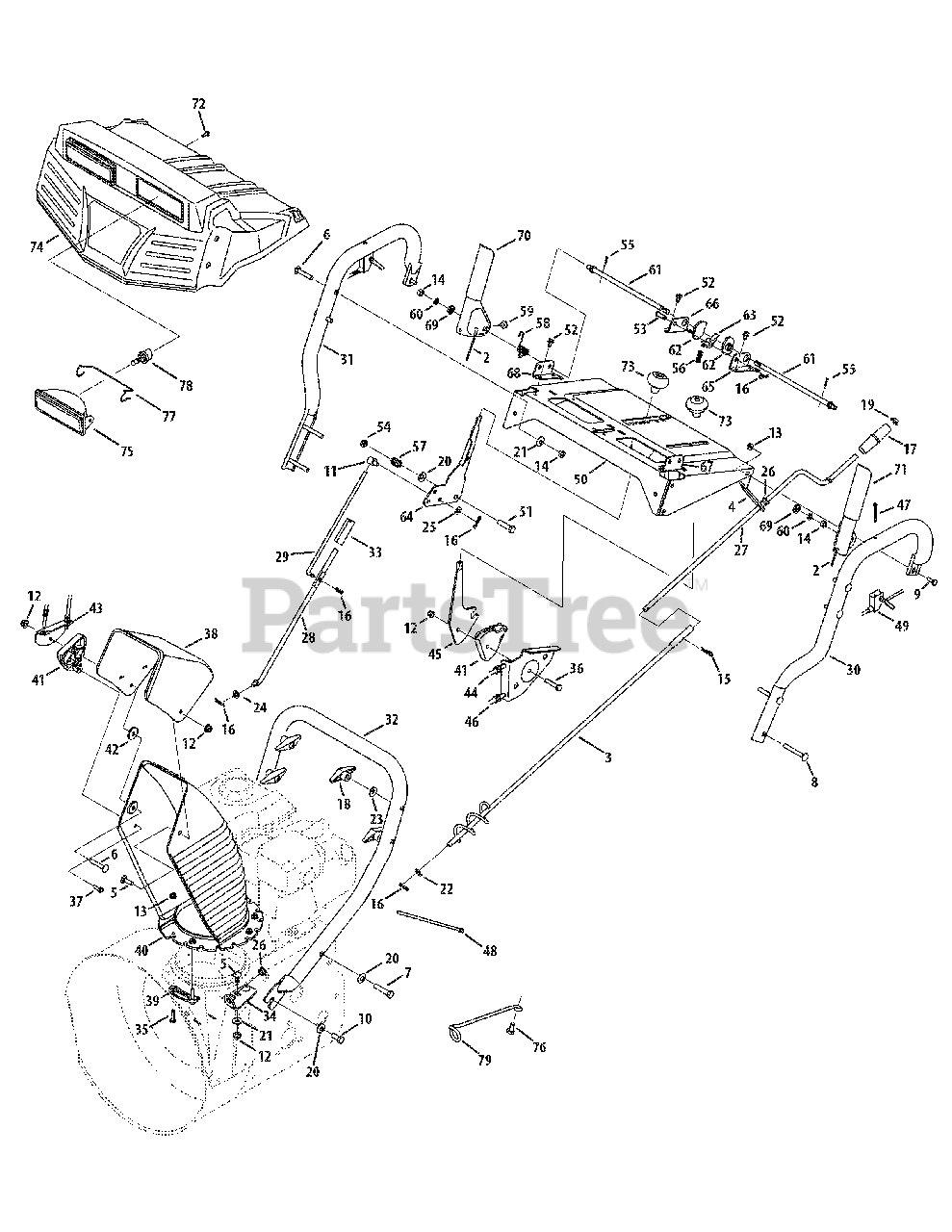

Handle Panel & Discharge Chute Parts Diagram

  • Title

1

Troy-Bilt 629-04010A

Duel Light Harness

$

$

Not available

2

Troy-Bilt 646-0012

Cable Assembly, Auger/Drive

$34.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 684-0053B

Crank, Chute, 26.0
(Superseded to 684-0053B-0637)

Variations

Troy-Bilt 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

4

Troy-Bilt 705-5266

Bracket, Chute Crank
(Superseded to 705-5266-0637)

Variations

Troy-Bilt 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0458

Screw, Carriage., 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 710-04682

Screw, Hex Lock, 3/8-16 x 2.0 Gr5

$5.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0572

Screw, Carriage., 5/16-18 x 2.5

$3.99

$

In Stock, Qty 5

0

9

Troy-Bilt 710-3015

Screw, Hex, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3118

Screw, Hex Lock, 3/8-16 x 1.0 Gr5

$5.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 711-0677

Ferrule, 5/16-18 x .312 Dia
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04064

Nut, Hex Flange, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-3068

Nut, Hex Patch Lock, 5/16-18 Gr5
(Superseded to 912-3009)

$

$

Not available

15

Troy-Bilt 714-0101

Pin, Internal Cotter

$4.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 720-0201A

Knob, Crank

$10.99

$

In Stock, Qty 6

0

18

Troy-Bilt 720-0284

Knob, Wing Nut, 5/16-18

$6.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 726-0100

Cap, Push, 3/8

$3.99

$

In Stock, Qty 7

0

20

Troy-Bilt 736-0105

Washer, Bell, .375 x .87 x .063

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0159

Washer, Flat, .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0185

Washer, Flat, .375 x .738 x .063

$3.49

$

In Stock, Qty 16

0

23

Troy-Bilt 736-0242

Washer, Bell, .34 x .872 x .06

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0275

Washer, Flat, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 736-3008

Washer, Flat, .344 x .750 x .120
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

26

Troy-Bilt 741-0475

Bushing, Plastic, .38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 747-0624

Rod, Chute Crank
(Superseded to 747-0624-0637)

Variations

Troy-Bilt 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 747-0983A

Rod, Lower Shift

$42.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 747-0997

Rod, Upper Shift

$64.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 749-0989A

Handle, Upper LH

Variations

Troy-Bilt 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 749-0990A

Handle, Upper RH

Variations

Troy-Bilt 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$87.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 749-0991

Handle, Lower

Variations

Troy-Bilt 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 750-0963

Connector, Shift Rod
(Superseded to 950-0963)

$32.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 784-5123

Chute Crank Bracket
(Superseded to 784-5123-0637)

Variations

Troy-Bilt 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 710-0597

Screw, Hex, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 19

0

36

Troy-Bilt 710-0805

Screw, Hex, 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

37

Troy-Bilt 710-0895

Screw, Hx,1/4-15 x .75

$5.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-0846C

Chute, Upper, 6.0

$48.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 731-0851A

Flange Keeper, Chute

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 731-0903E

Chute, Lower

$40.99

$

In Stock, Qty 14

0

41

Troy-Bilt 731-1313C

Cbl. Guide, Chute Tilt

$11.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 736-0231

Washer, Flat, .344 x 1.125 x .12

$4.49

$

In Stock, only 4 left!

0

43

Troy-Bilt 784-5594

Bracket, Cable

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 746-0902

Cable, Chute Control, 66"
(Superseded to 946-0902)

$45.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 784-5604A

Handle, Chute Tilt
(Superseded to 784-5604A-0637)

Variations

Troy-Bilt 784-5604A-0637

Chute Handle Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 746-0903

Cable, Chute Control w/Clip,
(Superseded to 946-0903)

$49.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 710-1625

Screw, #10-24 x 1.75

$6.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 725-0157

Tie, Cable

$3.49

$

In Stock, only 4 left!

0

49

Troy-Bilt 746-0950A

Cable Assembly, Trigger

$20.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 684-0102A

Panel, Handle

Variations

Troy-Bilt 684-0102A-0498

PANEL ASM:HANDLE - OLD CUB YELLOW (0498)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0637

PANEL ASM:HANDLE - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0674

PANEL ASM:HANDLE - YARDMAN YELLOW (0674)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0716

PANEL ASM:HANDLE - CUB YELLOW-99 (0716)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102A-4044

PANEL ASM:HANDLE - CRAFTSMAN RED (4044)

$124.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 710-0459A

Screw, Hex, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 10

0

52

Troy-Bilt 710-0599

Screw, Hex, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 711-0653

Pin, Clevis, .312 x 1.0

$3.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 712-0116

Nut, Insert, 3/8-24

$4.49

$

In Stock, Qty 7

0

55

Troy-Bilt 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

56

Troy-Bilt 732-0145

Spring, Compression

$3.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 732-0193

Spring, Compression

$4.49

$

In Stock, Qty 8

0

58

Troy-Bilt 732-0746

Spring, Torsion

$4.49

$

In Stock, Qty 13

0

59

Troy-Bilt 735-0199A

Bumper, Rubber

$6.99

$

In Stock, Qty 16

0

60

Troy-Bilt 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 747-0877

Rod, Cam

$21.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 748-0362

Cam, Handle Lock

$7.49

$

In Stock, only 1 left!

0

63

Troy-Bilt 748-0363

Pawl, Handle Lock
(Superseded to 948-0363)

$15.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 784-5619B

Handle, Shift
(Superseded to 784-5619B-0637)

Variations

Troy-Bilt 784-5619B-0637

HANDLE:SHIFT:S/T - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 784-5679

Bracket., Handle Support - LH 5/8
(Superseded to 784-5679-0637)

Variations

Troy-Bilt 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 784-5680

Bracket, Handle Support - RH 5/8
(Superseded to 784-5680-0637)

Variations

Troy-Bilt 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 784-5681

Bracket., Handle Support - LH 3/8

Variations

Troy-Bilt 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 784-5682

Bracket., Handle Support - RH 3/8
(Superseded to 784-5682-0637)

Variations

Troy-Bilt 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 736-0509

Washer, Flat, .35 Sq x .72 x .134

$6.49

$

In Stock, only 1 left!

0

70

Troy-Bilt 705-5218

Handle, Engage, RH

$37.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 705-5219

Handle, Engage, LH

$37.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 720-04039

Knob, Shift

$9.99

$

In Stock, Qty 5

0

74

Troy-Bilt 731-04069

Panel, Handle

$70.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 725-1672

Lamp Housing Assembly w/ Lens
(Superseded to 925-1672)

$83.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

77

Troy-Bilt 747-1136

Headlight Retainer

$10.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 725-1658

Lamp, Halogen, #890-12V-27W
(Superseded to 925-1658)

$55.99

$

In Stock, Qty 5

0

79

Troy-Bilt 747-04786

Cable Guide

$

$

Not available
