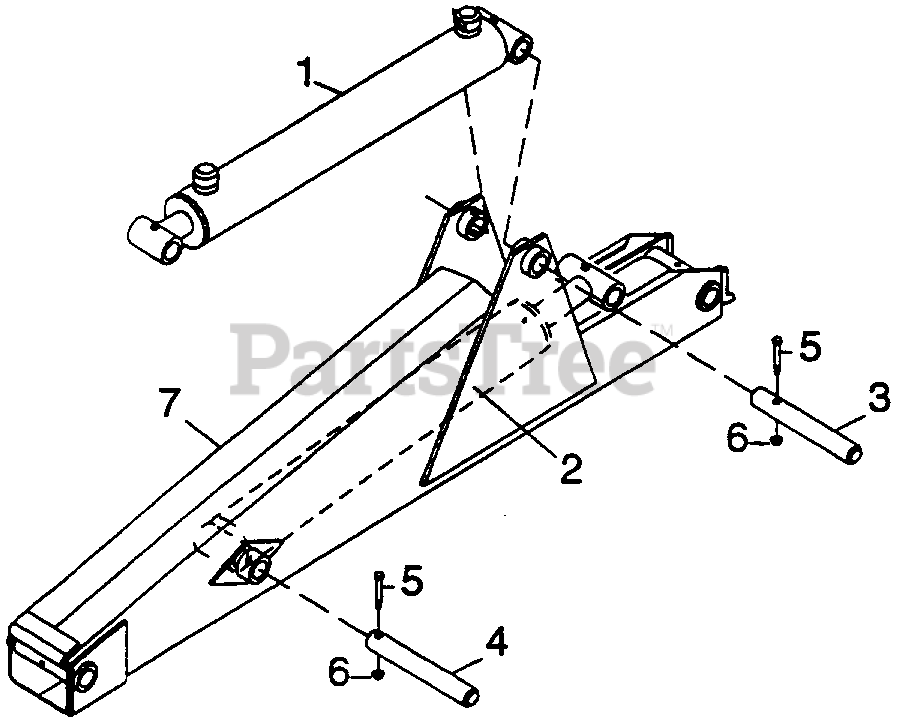

458 (590-458-100) - Cub Cadet Backhoe Boom Parts Diagram

Backhoe

Boom Parts Diagram

  • Title

1

Cub Cadet WM-37592

2.00 x 16.75 Double-acting hydraulic cylinder - Dipperstick
(Superseded to WM-37592P)

Note: (See "Hydraulic Cylinder" illustration & parts list)

$

$

Not available

2

Cub Cadet WM-37591

2.50 x 16.75 Double-acting hydraulic cylinder -Boom
(Superseded to WM-37591P)

Note: (See "Hydraulic Cylinder" illustration & parts list)

$

$

Not available

3

Cub Cadet WM-62292

1.00 x 4.51 x 5.9 Drilled bar

$

$

Not available

4

Cub Cadet WM-62295

1.00 x 5.92 x 6.31 Drilled bar

$

$

Not available

5

Cub Cadet WM-37531

1/4 NC x 2-1/4 Hex head cap screw GR8

$

$

Not available

6

Cub Cadet WM-6128

1/4 NC Hex locknut
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet WM-38669

Boom weldment assembly

$

$

Not available
