4814 R (556C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Fixed Cradle Assembly Parts Diagram

Walk-Behind Mower

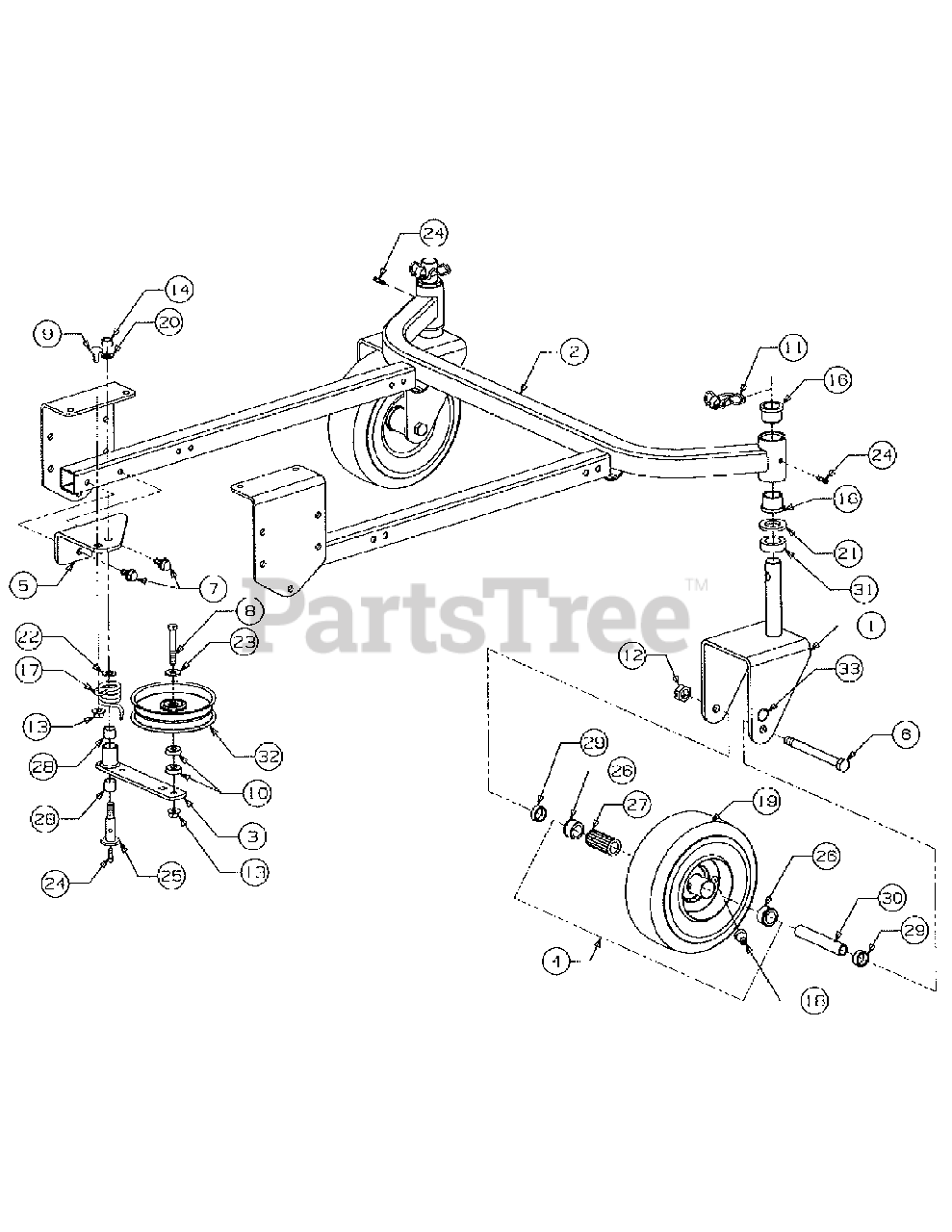

Fixed Cradle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0047

Fork, Caster
(Superseded to 01006145)

Variations

Cub Cadet 603-0047-0498

USE 01006145 FORK-CASTER - OLD CUB YELLOW (0498)

$126.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0142

Cradle Ass'y. Fixed

$

$

Not available

2

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 603-0209

Arm. Ass'y, Idler

Note: (Incl. Ref No.28,Qty 2)

$

$

Not available

4

Cub Cadet 759-3729

Wheel Ass'y, Caster
(Superseded to 634-3026)

$238.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2730

Bracket, Idler Arm

$

$

Not available

6

Cub Cadet 710-0506

Screw, Hex Cap, 1/2-20 x 5.50

$10.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0623

Screw, Hex Wash Sf Tap, 3/8-16 x .75

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-0859

Screw, Hex Cap, 3/8-16 x2.50 Gr 5

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3178

Boltm ShtNk Carriage, 3/8-16 x .75 Gr 5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0242

Spacer, .380 x 1.00 x .32

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 711-3345

Pin, Klik

$

$

Not available

12

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3019

Nut, Hex, 7/16-14 Gr 5

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 714-0145

Hairpin

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-0374

Bearing, Flange
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 20+

0

17

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$24.99

$

In Stock, Qty 20+

0

18

Cub Cadet 734-0255

Valve, Tubeless
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 734-3098

Tire, Smooth, 9.0 x 3.50 x 4

$

$

Not available

20

Cub Cadet 736-0174

Washer, Lock, 7/16

$6.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0274

Washer, Special

$8.99

$

In Stock, Qty 17

0

22

Cub Cadet 736-3015

Washer, Flat, .469 x .875 x .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, only 3 left!

0

23

Cub Cadet 736-3052

Washer, Flat, .406 x 1.00 x .105 Thk

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 738-3108

Bolt, Shoulder
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 7

0

26

Cub Cadet 741-3060

Bearing, Graf Oil Flange

$

$

Not available

27

Cub Cadet 741-3061

Bearing, Roller
(Superseded to 941-3061)

$

$

Not available

28

Cub Cadet 741-3063

Bearing, Sleeve

$17.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 750-0456

Spacer, .790 ID x .347

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 750-3080

Spacer. Wheel
(Superseded to 01000749)

$40.99

$

In Stock, only 1 left!

0

31

Cub Cadet 750-3118

Spacer, 1.015 x 1.62 x.50

$

$

Not available

32

Cub Cadet 756-3062

Pulley, Flat Idler, 5''

$40.99

$

In Stock, Qty 15

0

33

Cub Cadet 777-8680

Label, Inflation

$

$

Currently unavailable
