4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Starting System Parts Diagram

Walk-Behind Mower Pro Performer

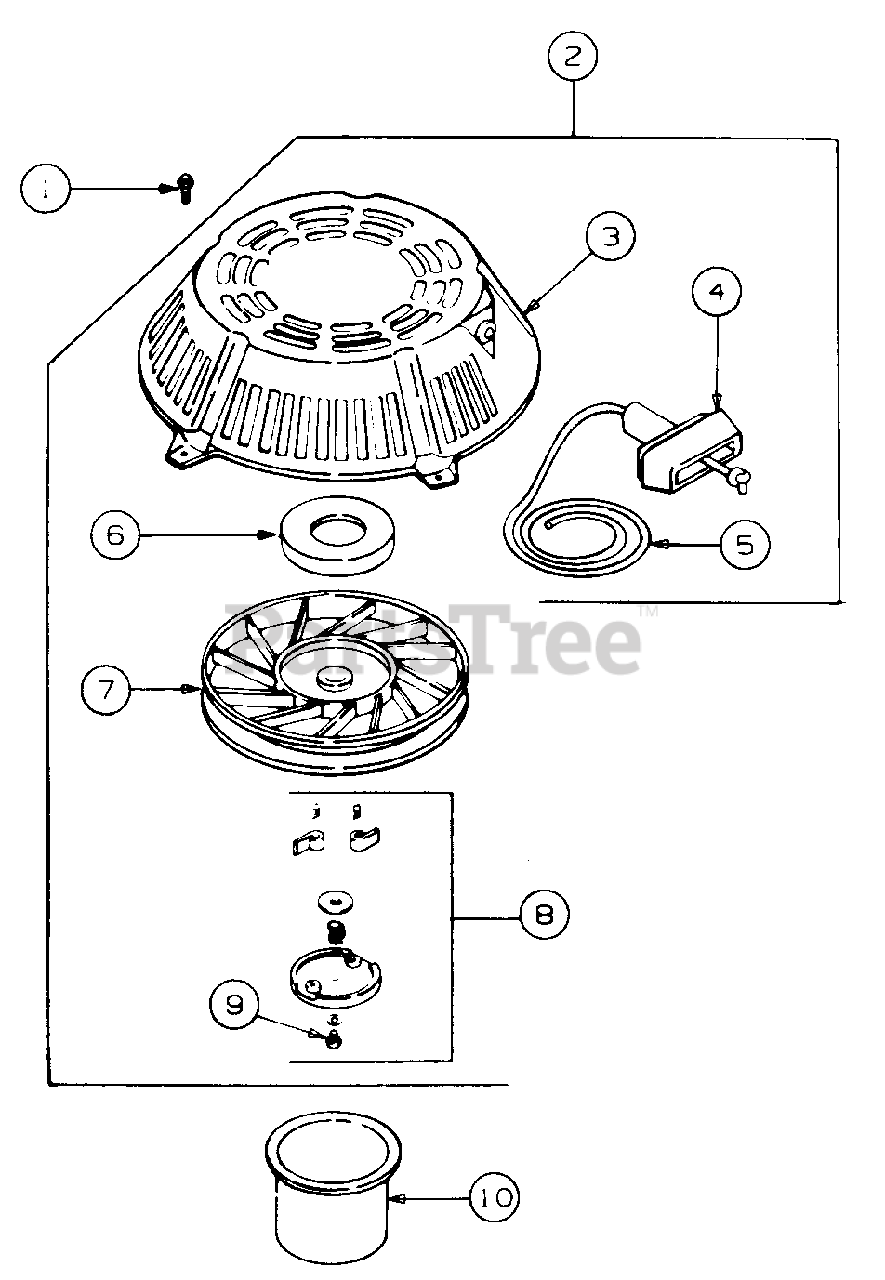

Starting System Parts Diagram

  • Title

1

Cub Cadet KH-M-545010

Screw, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

2

Cub Cadet KH-12-165-01

Starter, Retractable Assy
(Superseded to KH-24-165-02-S)

Note: (Includes Ref No. 3 thru 9)

$75.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-081-01

Housing, Starter

$

$

Not available

4

Cub Cadet KH-234452

Handle, Recoil Start

$

$

Not available

5

Cub Cadet KH-12-160-01

Rope, Starter

$

$

Not available

6

Cub Cadet KH-12-089-06

Spring & Keeper

$

$

Not available

7

Cub Cadet KH-12-093-01

Pulley

$

$

Not available

8

Cub Cadet KH-12-757-06

Kit, Pawl (Dog)

Note: (Includes Ref No. 9)

$

$

Not available

9

Cub Cadet KH-41-086-09

Screw, Pozidriv

$

$

Not available

10

Cub Cadet KH-15-109-01

Cup, Drive

$

$

Not available

Cub Cadet KH-12-113-07

Decal, Starting

$

$

Not available
